Maintenance
9.7 Lubricating the vehicle and attachment
198
Operator’s Manual | 4080T Basic Line | 1000408123 | 05/2019 | [en]

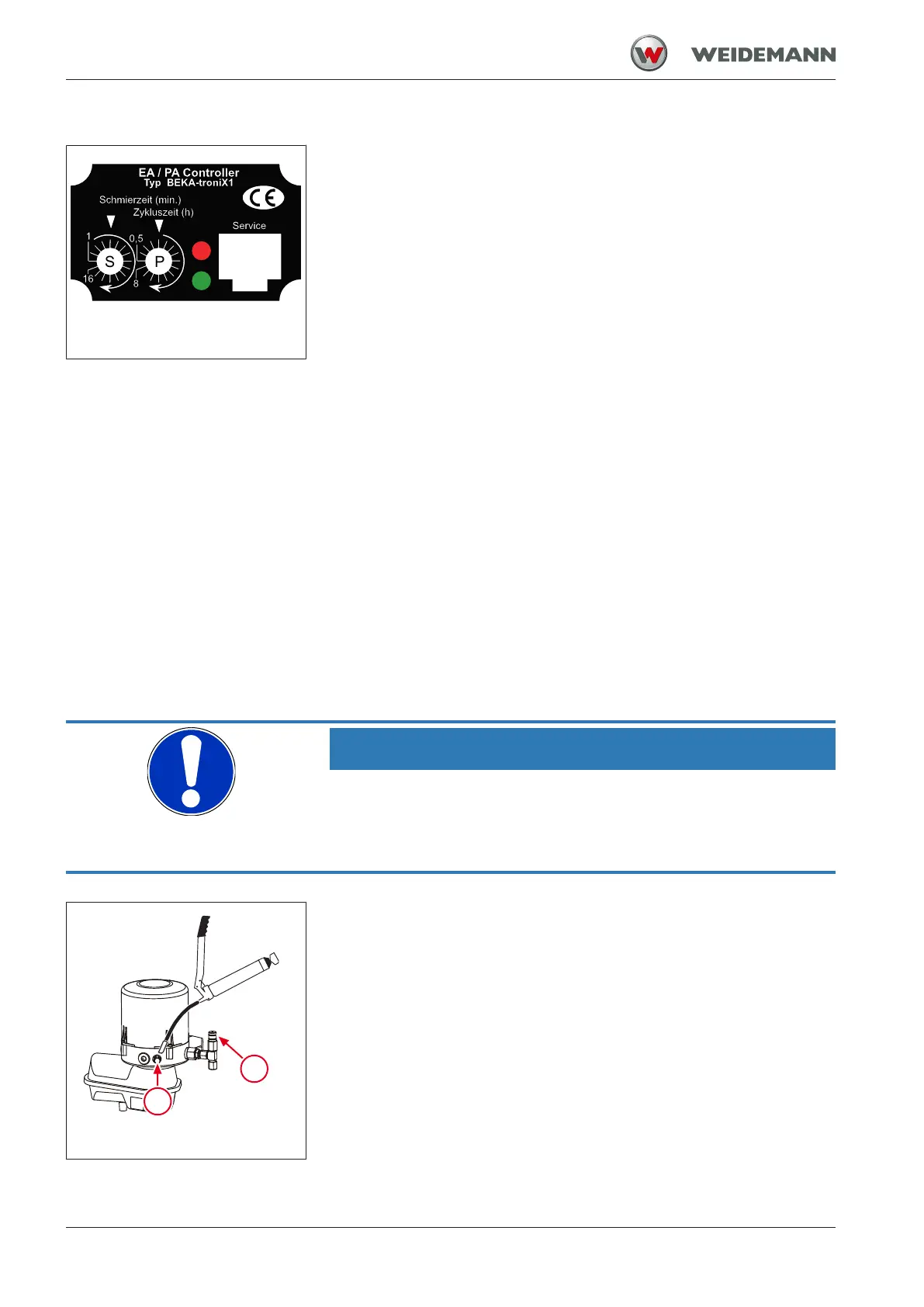

Fig.190: Operation of the central
lubrication system
Lubrication times and break times
The break time and the lubrication time are set by means of ratchet
switches S and P in the control viewing window.
1. To set the time, remove the frame on the pump of the central lubric-
ation system with a flat screwdriver.
2. Loosen exposed screws.
ð Remove the cover.
3. Set the pause time P and lubrication time S with a flat screwdriver.
4. Reinstall the protective cover and frame.
Lubrication time S can be adjusted between one and 16 minutes. There
are 16 detents of one minute each available for this purpose.
Break time P can be adjusted between 30 minutes and eight hours.
There are 16 detents of 30 minutes each available for this purpose.
The LEDs signal different operating states of the central lubrication sys-
tem.
• When the ignition is switched on, both self-test LEDs light up for 1.5
seconds.
• During the lubrication process, the green LED lights up permanently.
• If faults occur in the central lubrication system, the red LED flashes.
The original operator’s manual for the central lubrication system must for
the central lubrication system must be observed.
Repair work
NOTICE
Damage to the vehicle due to non-lubricated lubrication points!
If lubricant escapes at the central lubrication system position 1, one or
more lubrication points are not lubricated.
► Have the error repaired by an authorized service center.
Fig.191: Filling up the central lubric-
ation system
Repair work on the central lubrication system may only be performed by
authorized service centers!
Filling up the central lubrication system
The central lubrication system can be filled via grease nipple 2 or via a
filling coupling with manually operated or pneumatic grease gun. To the
specifications of the multi-purpose grease Overview of vehicle fluids and
filling quantities.
