Electrical system maintenance 9.11
209
[en] | 05/2019 | 1000408123 | 4080T Basic Line | Operator’s Manual
WARNING
Danger of explosion due to defective batteries!
Batteries give off explosive gases that can cause deflagrations if ignited.
► Do not smoke, avoid fire and open flames.
► Do not place any tools on the battery.
NOTICE
Short-circuit in the electrical system due to incorrect sequence
when connecting and disconnecting!
► Disconnecting: First the negative terminal, and then the positive ter-
minal.
► Connecting: First the positive terminal, and then the negative ter-
minal.
The battery has a nominal voltage of 12 volts.
The battery capacity is 95 Ah.
Preparation for maintenance In the engine compartment
1. Park the vehicle on a stable, level and dry surface.
2. Secure the vehicle with the parking brake.
3. Retract the loader unit and lower it to the ground.
4. Switch off the ignition and remove the starting key.
5. Let the engine cool down.
6. Open the engine cover.

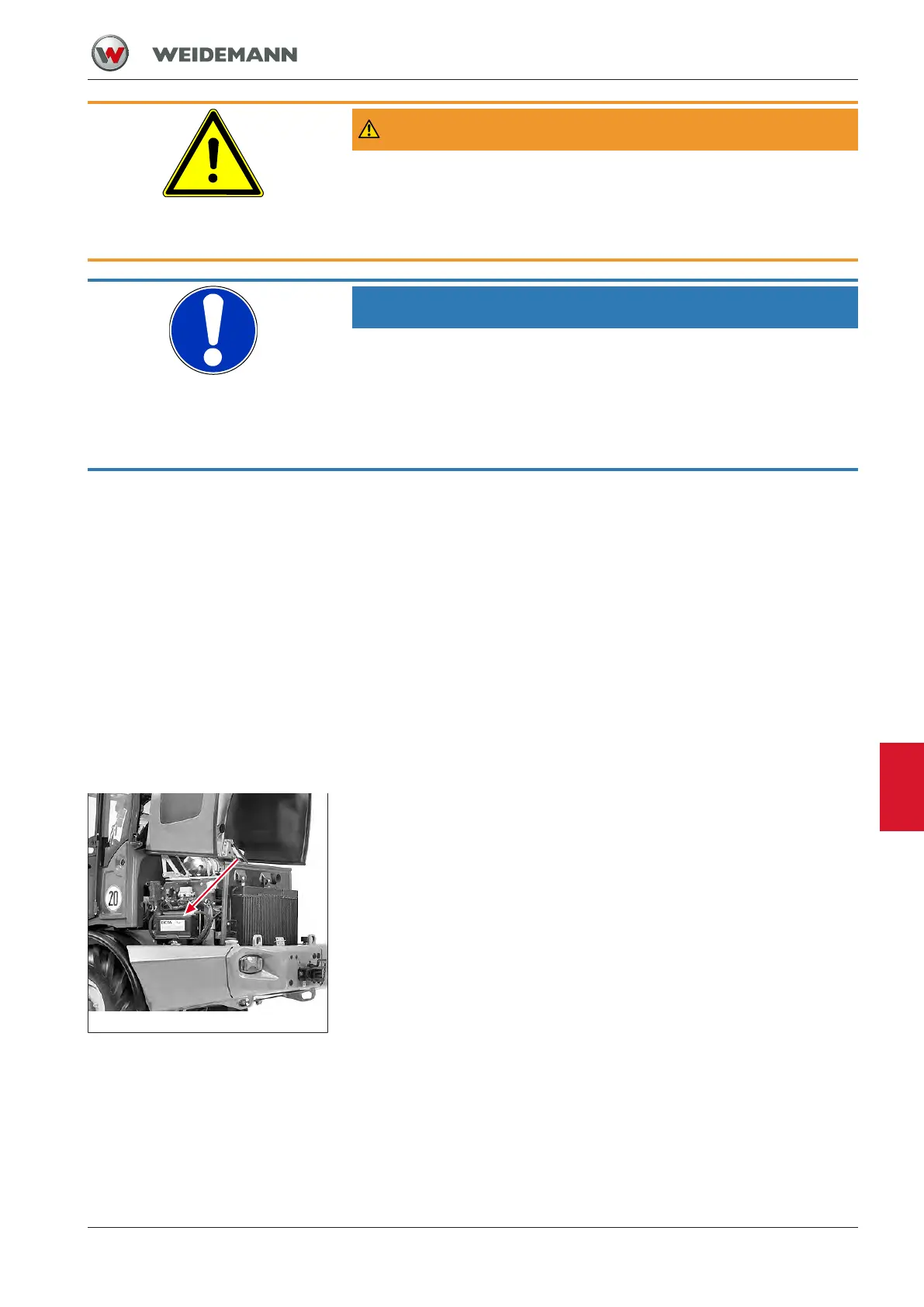

Fig.203: Battery location
Removing the battery
Required tools: Wrench size 13 mm
ü Preparations for maintenance in the engine compartment were car-
ried out.
ü Switch off the battery master switch: see Battery master switch on
page 96.
1. Remove stowage box. Unscrew the two star grip screws 1 for this
purpose.
2. Unscrew the line from the negative terminal (-).
3. Unscrew the line from the positive terminal (+).
4. Unscrew the battery holder with a wrench.
5. Remove the battery.
The installation of a new battery takes place in reverse order. Dispose of
old batteries in an environmentally friendly manner and separately from
other waste.
