Description of the vehicle
Operating elements at the operator station 5.3
47
[en] | 05/2019 | 1000408123 | 4080T Basic Line | Operator’s Manual
1 Brake/inching pedal
2 Steering column switch – control lever for light, direction indicator lamp (turn signal) and horn
3 Air vents
4 Switch panel 1
5 Steering wheel
6 Display
7 Switch panel 2
8 Stability indicator
9 Gas pedal
10 Joystick
11 Switch panel 3
12 Switch panel 4
13 Fuse boxes
14 Arm rest
15 Switch panel 5
16 Seat
17 Switch panel 6
18 Control lever for the parking brake
Control elements not shown in overview
19 Switch panel 7 (on the cab roof)
5.3.3
Overview: Joystick

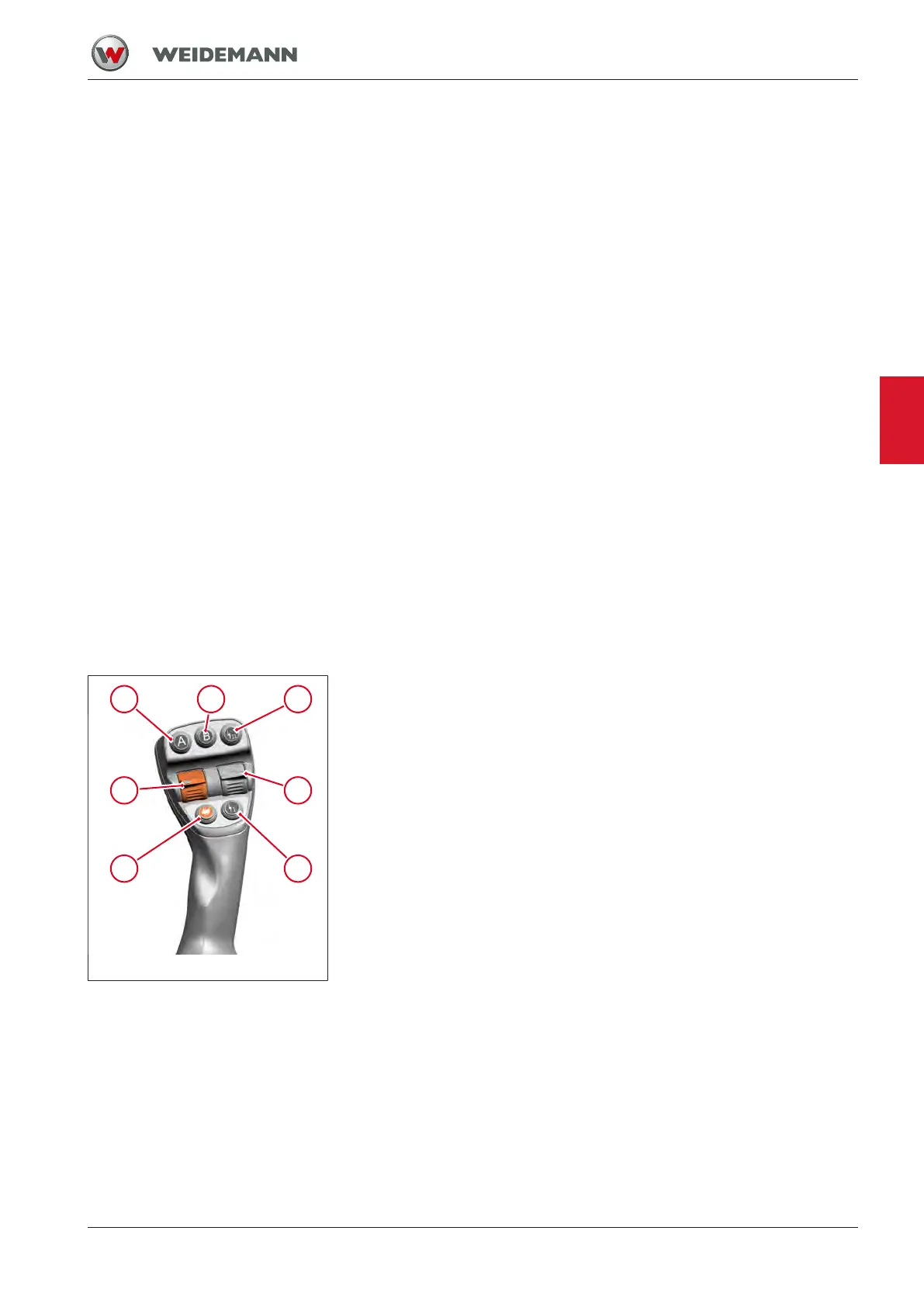

Fig.7: Switch on joystick top
1 Switch for function A
2 Switch for function B
3 Electrical connection switch2 front
4 Switch for telescopic boom retraction/extension
5 Electrical connection switch1 front
6 Switch for high speed/crawler gear button
7 Switch for forward/reverse driving direction
5
