Commissioning
6.2 Setting up the operator station
80
Operator’s Manual | 4080T Basic Line | 1000408123 | 05/2019 | [en]
6.2.1.1
Seat MSG95
1
3 5
2
4

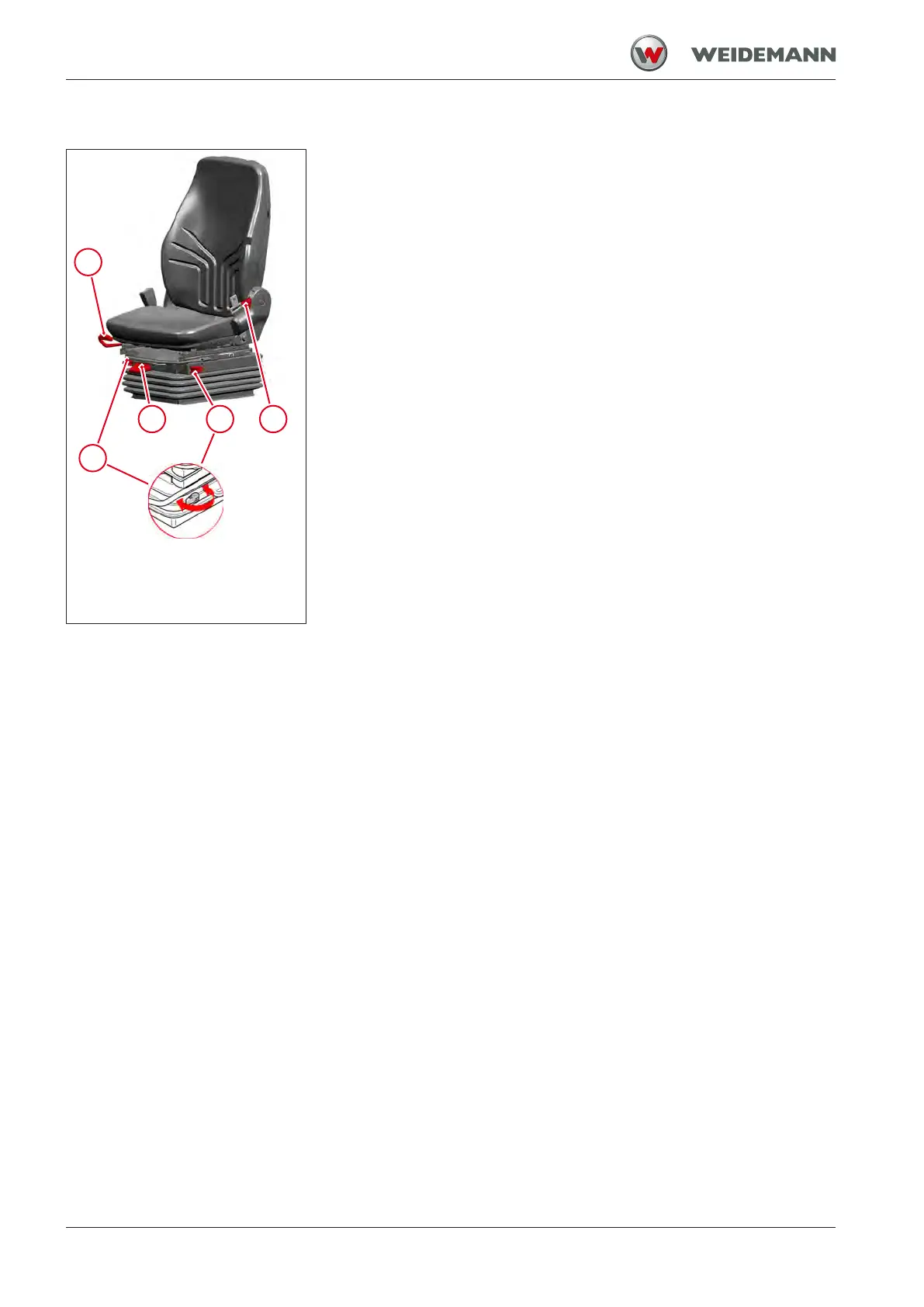

Fig.54: Seat adjustment options
MSG 95
Sit on the seat to adjust.
Adjusting longitudinal direction
1. Pull lever 1 upward and hold.
2. Push the seat forwards or backwards into the desired position.
3. Release lever1.
After adjustment, lever 1 must engage in the desired position. It shall not
be possible to move the seat after it has been locked.
Adjusting the damping hardness of the suspension
Four levels are adjustable. Lever 2 engages in each step.
▪ Move lever 2 to the left.
ð Spring tension is reduced - suspension becomes softer.
▪ Move lever 2 to the right.
ð Spring tension is increased- suspension becomes harder.
Adjusting suspension and height
The seat MSG95 is air suspended. The suspension and height of the
seat can be continuously adjusted with lever 3 via a compressor. The
reaching of the lower and upper end stops of the suspension is indicated
when the sound of the compressor changes audibly.
