Commissioning
Setting up the operator station 6.2
83
[en] | 05/2019 | 1000408123 | 4080T Basic Line | Operator’s Manual
5

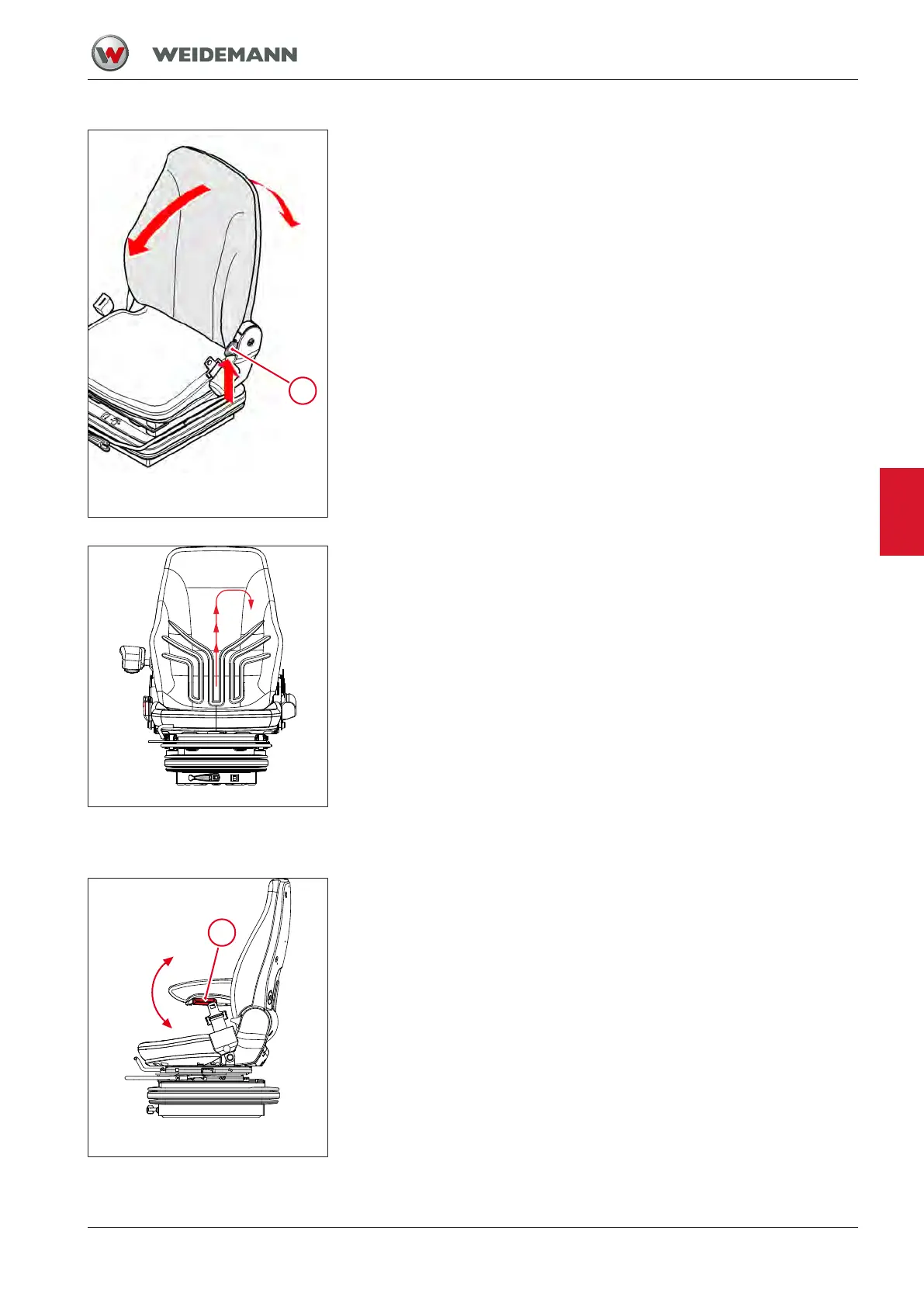

Fig.58: Adjusting the inclination of
the backrest
Adjusting the backrest
1. Pull lever 5 upward and hold.
2. Move the backrest forwards or backwards until the backrest is at the
desired angle.
3. Release lever5.
After adjustment, lever 5 must engage in the desired position. Once it is
locked in place the backrest must no longer move.
Fig.59: Adjusting the seat height
Height adjustment
The seat height can be adjusted in three different steps.
ü Stand up to adjust the seat.
▪ Raise the seat until it snaps into the next higher step.
ð The seat snaps into the next higher step.
ð The height of the seat is adjusted.
To move the seat from the highest step back to the lowest step, proceed
as follows:
▪ Lift the seat up to the upper stop.
ð The seat moves to the lowest position.
ð To adjust the height of the seat again, repeat the procedure as de-
scribed above.
6
Fig.60: Adjusting the inclination of
the armrest
Adjusting the armrest
Turn the setting wheel 6 on the underside of the armrest to set the de-
sired inclination of the armrest.
ü To adjust, relieve the armrest.
1. Turn setting wheel 6 clockwise.
ð The armrest lowers.
2. Turn setting wheel 6 counterclockwise.
ð The armrest is raised.
ð The inclination of the armrest is adjusted.
6
