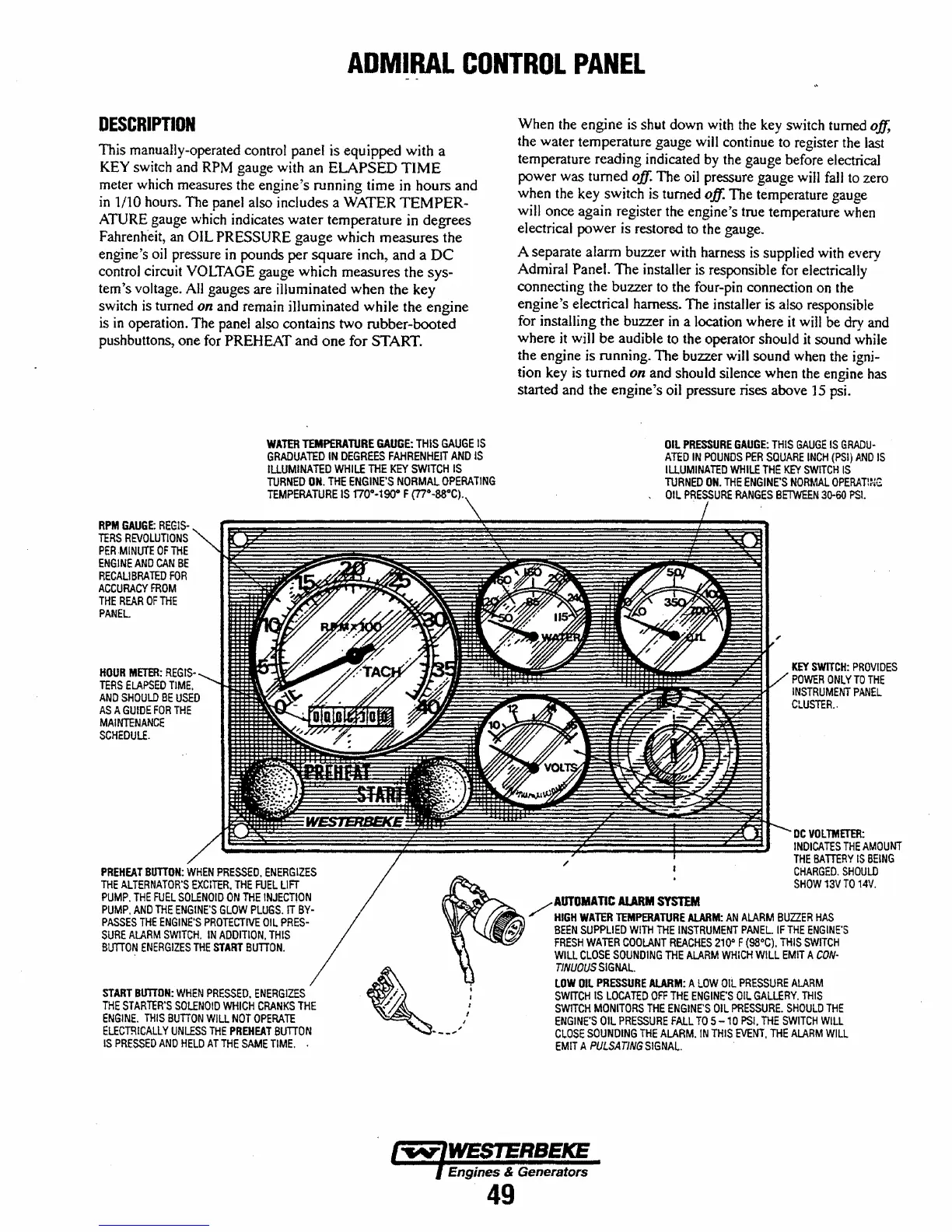

ADMIRAL
CONTROL
PANEL
DESCRIPTION
This manually-operated control panel is equipped with a
KEY switch and
RPM gauge with an
ELAPSED
TIME
meter which measures the engine's running time
in
hours and
in
1/10 hours. The panel also includes a WATER
TEMPER-
ATURE gauge which indicates
water
temperature in degrees
Fahrenheit, an
OIL PRESSURE gauge which measures the
engine's oil pressure
in
pounds per square inch, and a
DC
control circuit VOLTAGE gauge which measures the sys-
tern's voltage.
All
gauges are illuminated when the key
switch
is
turned
on
and remain illuminated while the engine
is
in
operation. The panel also contains two rubber-booted
pushbuttons, one for
PREHEAT and
one
for START.
RPM
GAUGE:
REGIS-
TERS
REVOLUTIONS
PER
,MINUTE
OF
THE
ENGINE
AND
CAN
BE
RECALIBRATED
FOR
ACCURACY
FROM
THE
REAR
OF
THE
PANEL
HOUR
METER:
REGIS-
TERS
ELAPSED
TIME.
AND
SHOULD
BE
USED
AS
A
GUIDE
FOR
THE
MAINTENANCE
SCHEDULE.
WATER
TEMPERATURE
GAUGE:
THIS
GAUGE
IS
GRADUATED
IN
DEGREES
FAHRENHEIT
AND
IS
ILLUMINATED
WHILE
THE
KEY
SWITCH
IS
TURNED
ON.
THE
ENGINE'S
NORMAL
OPERATING
TEMPERATURE
IS
170°-190°
F
PREHEAT
BUTTON:
WHEN
PRESSED.
ENERGIZES
THE
ALTERNATOR'S
EXCITER,
THE
FUEL
LIFT
PUMP.
THE
FUEL
SOLENOID
ON
THE
INJECTION
PUMP.
AND
THE
ENGINE'S
GLOW
PLUGS.
IT
BY-
PASSES
THE
ENGINE'S
PROTECTIVE
OIL
PRES-
SURE
ALARM
SWITCH.
IN
ADDITION.
THIS
SunON
ENERGIZES
THE
START
BUTTON.
START
BUTTON:
WHEN
PRESSED.
ENERGIZES
THE
STARTER'S
SOLENOID
WHICH
CRANKS
THE
ENGINE.
THIS
BUTTON
WILL
NOT
OPERATE
ELECTRICALLY
UNLESS
THE
PREHEAT
SunON
IS
PRESSED
AND
HELD
AT
THE
SAME
TIME.
.
When the engine is shut down with the key switch turned
oJ!,
the water temperature gauge will continue to register the last
temperature reading indicated by the gauge before electrical
power was turned
off. The oil pressure gauge will
faJl
to zero
when the key switch is turned
off. The temperature gauge
will once again register the engine's true temperature when
electrical power is
restored to the gauge.
A separate alarm buzzer with harness is supplied with every
Admiral
Panel.
The
installer is responsible for electrically
connecting the buzzer to the four-pin connection on the
engine's electrical harness. The installer is also responsible
for installing the buzzer
in
a location where
it
will
be dry and
where
it
will
be
audible to the operator should
it
sound while
the engine is running. The buzzer
will sound when the igni-
tion key is turned
on
and should silence when the engine has
started and the engine's oil pressure rises above 15 psi.
I'
Oil
PRESSURE
GAUGE;
THIS
GAUGE
IS
GRADU-
ATED
IN
POUNDS
PER
SQUARE
INCH
(PSI)
AND
IS
ILLUMINATeD
WHILE
THE
KEY
SWITCH
IS
TURNED
ON.
THE
ENGINE'S
NORMAL
OPERATlNG
OIL
PRESSURE
RANGES
BETWEEN
30-60
PSI.
KEY
SWITCH:
PROVIDES
POWER
ONLY
TO
THE
INSTRUMENT
PANEL
CLUSTER.,
DC
VOLTMETER;
INDICATES
THE
AMOUNT
THE
SATTERY
IS
BEING
CHARGED.
SHOULD
SHOW
13V
TO
14V.
AUTOMATIC
ALARM
SYSTEM
/'
HIGH
WATER
TEMPERATURE
AlARM:
AN
ALARM
BUZZER
HAS
BEEN
SUPPLIED
WITH
THE
INSTRUMENT
PANEL.
IF
THE
ENGINE'S
FRESH
WATER
COOLANT
REACHES
210"
F
(98°C),
THIS
SWITCH
WILL
CLOSE
SOUNDING
THE
ALARM
WHICH
WILL
EMIT
A
CON·
TINUOUS
SIGNAL.
lOW
Dll
PRESSURE
AlARM:
A
LOW
OIL
PRESSURE
ALARM
SWITCH
IS
LOCATED
OFF
THE
ENGINE'S
OIL
GALLERY.
THIS
SWITCH
MONITORS
THE
ENGINE'S
OIL
PRESSURE.
SHOULD
THE
ENGINE'S
OIL
PRESSURE
FALL
TO
5
-10
PSI.
THE
SWITCH
WILL
CLOSE
SOUNOING
THE
ALARM.
IN
THIS
EVENT.
THE
ALARM
WILL
EMIT
A
PULSATING
SIGNAL.
