8.3 Start initial configuration
Observe the following points during the configuration:
▪If there is no input or operation for 6minutes:
– the display illumination is switched off.
– the display returns to the main screen.
– parameter input is locked.
▪Some settings can only be adjusted when there is no pump in operation.
▪The menu is automatically adapted based on the settings. Example: The Menus 5.41 …
5.43 are only visible when the “pump kick” function (Menu 5.40) is activated.
▪The menu structure is valid for all EC switchgears (e.g. HVAC, Booster, Lift, Fire, etc.).
This may lead to gaps in the menu structure.
As standard, the values are only displayed. To change the values, the parameter input in
Menu 7.01 must be enabled:
7
1
5
3
2

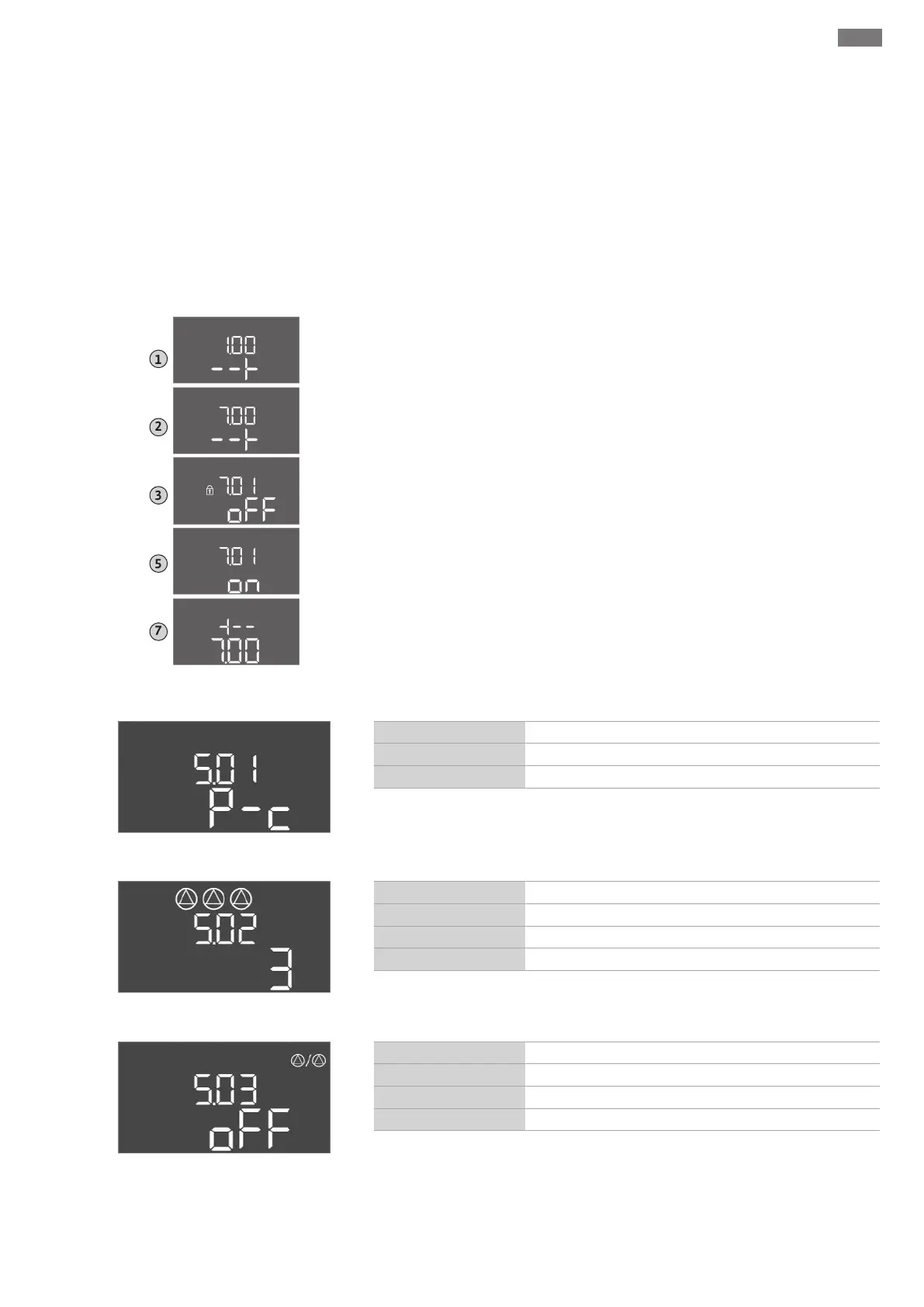

Fig.27: Enable parameter input
1. Press the operating button for 3s.
⇒ Menu item 1.00 appears
2. Turn the operating button until menu 7 appears.
3. Press the operating button.
⇒ Menu 7.01 appears.
4. Press the operating button.
5. Change the value to “on”: Turn the operating button.
6. Save value: Press the operating button.
⇒ The menu is enabled and can be changed.
7. Turn the operating button until the end of menu 7 appears.
8. Press the operating button.
⇒ Back to the main menu level.
▶ Start initial configuration:
- Menu5: Basic settings
- Menu1: Switch-on/off values
- Menu2: Field bus connection (if available)
- Menu 3: Enable pumps
Menu5: Basic settings
Fig.28: Menu 5.01
Menu no. 5.01
Description Control mode
Factory setting Constant pressure control (p-c)
Fig.29: Menu 5.02
Menu no. 5.02
Description Number of connected pumps
Value range 1 … 3
Factory setting 3
Fig.30: Menu 5.03
Menu no. 5.03
Description Standby pump
Value range on, off
Factory setting off
