blueMatic EAV4 / EAV4+ Installation, Operating and
Maintenance Instructions
Aug. Winkhaus GmbH & Co. KG ∙ Berkeser Straße 6 ∙ 98617 Meiningen
T +49 369 3950 - 0 ∙ www.winkhaus.com ∙ Subject to technical changes

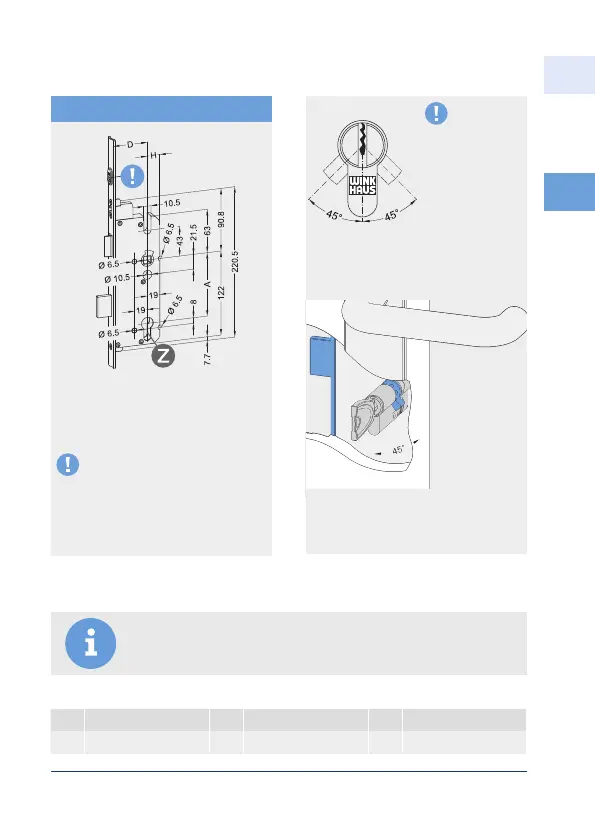

Lock housing information
Rear backset:
key operated lock housing
H = 18 mm
The rebate clearance limiter is
important for the correct airgap
and thus the function of the
day-time latch → do not remove!
Attention!
Requirement
for profile
cylinder:
Cylinder with
not adjustable
cam have to
have cam
position max. 45° left/righthand
in key removal position.
Requirement
for profile
cylinder with
adjustable
cam:
Cylinder have
to have cam
position max.
45° or 4-o‘clock-position to the
hinge side in key removal position.
Notice: If the diameter of the hole 4.5 mm + magnetic clip does
not fit, carefully re-drill with a diameter of 4.5 mm (e.g. for
powder-coated keep rails / due to tolerances)!
A Distance G Handle position L Length STV (T)
D Backset H Rear backset ** croppable
