blueMatic EAV4 / EAV4+ Installation, Operating and
Maintenance Instructions
Aug. Winkhaus GmbH & Co. KG ∙ Berkeser Straße 6 ∙ 98617 Meiningen
T +49 369 3950 - 0 ∙ www.winkhaus.com ∙ Subject to technical changes

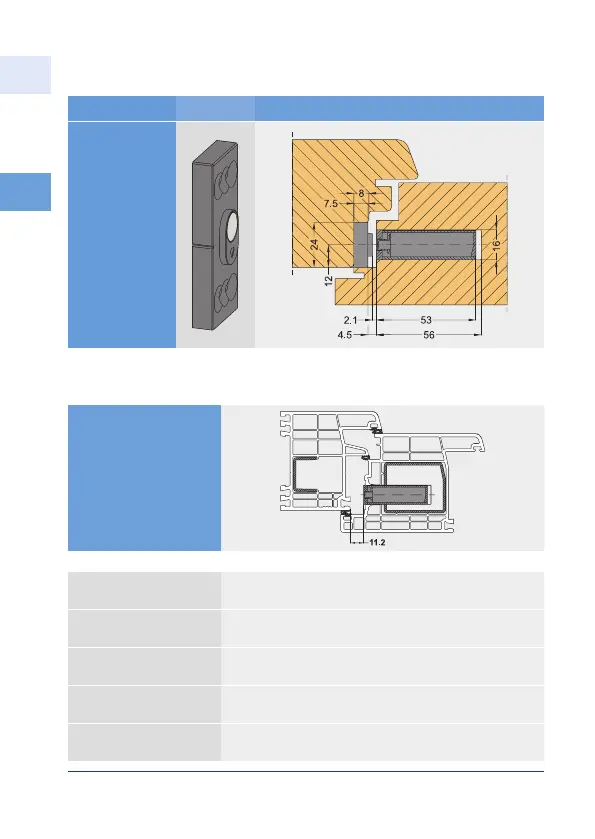

Definition of residual
airgap for single
keeps:
Distance between
frame and upper edge
of STV faceplate for
PVC-U / aluminium
Residual airgap Explanation
< 6,7 mm
EAV4+/Magnetic clip not recommended because
airgap is too small
  -  mm T-Magnetclip 1,0 EAV4+/BM+ SB U24x5,5 GR
(only for aluminium and not for PVC-U)
  -  mm T-Magnetclip 1,5 EAV4+/BM+ SB U24x5,5 GR
(only for PVC-U, possibly for aluminium)
  -  mm T-Magnetclip 1,5 EAV4+/BM+ SB U24x7,5 GR,
6 mm triggering range
  mm Magnetic clip not possible  magnet no longer
releases because airgap is too large
Description Variants Installation situations
Application
of wood 11/12
mm (standard
rebate 24 x 8
mm) with sing-
le keep with
magnetic clip /
motor housing
in timber
profile
Use of magnetic clip for single keeps
