blueMatic EAV4 / EAV4+ Installation, Operating and
Maintenance Instructions
Aug. Winkhaus GmbH & Co. KG ∙ Berkeser Straße 6 ∙ 98617 Meiningen
T +49 369 3950 - 0 ∙ www.winkhaus.com ∙ Subject to technical changes

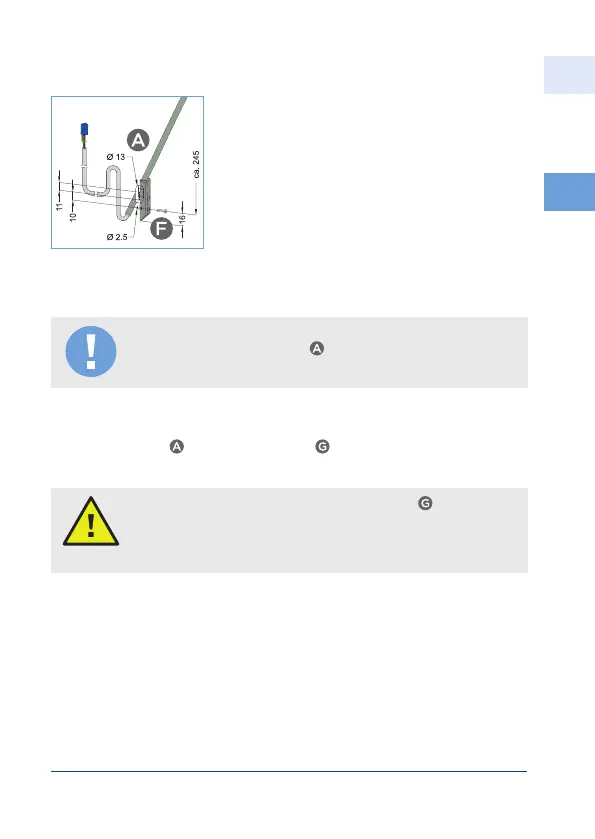

Figure 3.3.1-3: Detail T-KÜ-T1 FT without cover plate
• Complete the plug-in connection after putting the door on its hinges
• Fix the sash part
with the fitting screw Ø 3 x 20 mm(Figure 1)
• Install the cable for example within the
glazing chamber towards the motor housing;
install the rest of the cable for example within
the hollow section.Ø 3 x 20 mm in the fitting
groove.
• Install the cable for example within the
glazing chamber towards the motor housing;
install the rest of the cable for example within
the hollow section.
CAUTION! Release the second retaining screw (e.g. during
the installation of the door frame into the reveal) when unhinge
the door sash!
Insulate the wires not used!
Attention! Provide cable reserve of about 3 - 5 cm for the spring
tension behind the sash part
of the cable transition!
