blueMatic EAV4 / EAV4+ Installation, Operating and
Maintenance Instructions
Aug. Winkhaus GmbH & Co. KG ∙ Berkeser Straße 6 ∙ 98617 Meiningen
T +49 369 3950 - 0 ∙ www.winkhaus.com ∙ Subject to technical changes
230V AC
Description Part-no.
Cable transition
T-KÜ-T FT M
plus cover plate (depends
on the faceplatematerial
type) plug-in

alternatively cable transi-
tion T-KÜ-T FT M

alternatively Cable transi-
tion T-KÜ-T FT M

Frame part cable transition
T-KÜ-T RT KABEL M
RNT for frame power
supply

T-MOTORKASTEN EAV
(V) BL

T-MOTORKASTEN EAV
(V) BL (with app control)

for retrofitting mechanical locking
systems AVD standard
Frame power supply
T-NETZTEILRAHM V DC
A (AS) BMEAV

Access control system IDENCOM
BioKey® INSIDE - FINGER-
PRINT - BASIC FUNCTION
 
alternatively BioKey® INSI-
DE - FINGERPRINT WITH
APP MANAGEMENT
 
- App

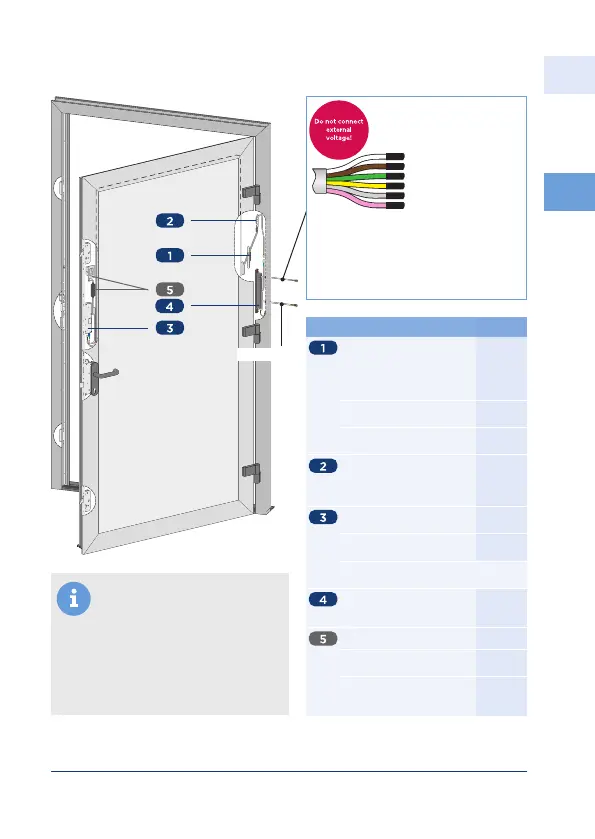

Figure 3.6.2-5: Wiring blueMatic EAV4 / EAV4+ with "Fingerprint IDENCOM
Biokey INSIDE, Mini X and frame power supply" (sash side)
white  V DC
brown V Masse
green external opening signal
yellow not used
grey
pink
green  external opening signal (unlock)
greypink  only with EAV otherwise not used
potential-free signal output various
signals adjustable
• Default  door closed  locked
• alternatively signal for swing door
opener
Notice! max  m extendable (min  x  mm)
}
EAV
potential-free
signal-output
Notice: The positioning of
frame power supply and
cable transition on the hinge
side is recommended, either
between lower / middle door
hinge or in each case approx.
10 cm above / below the
middle door hinge.
