Xerox 560 Reference Manual

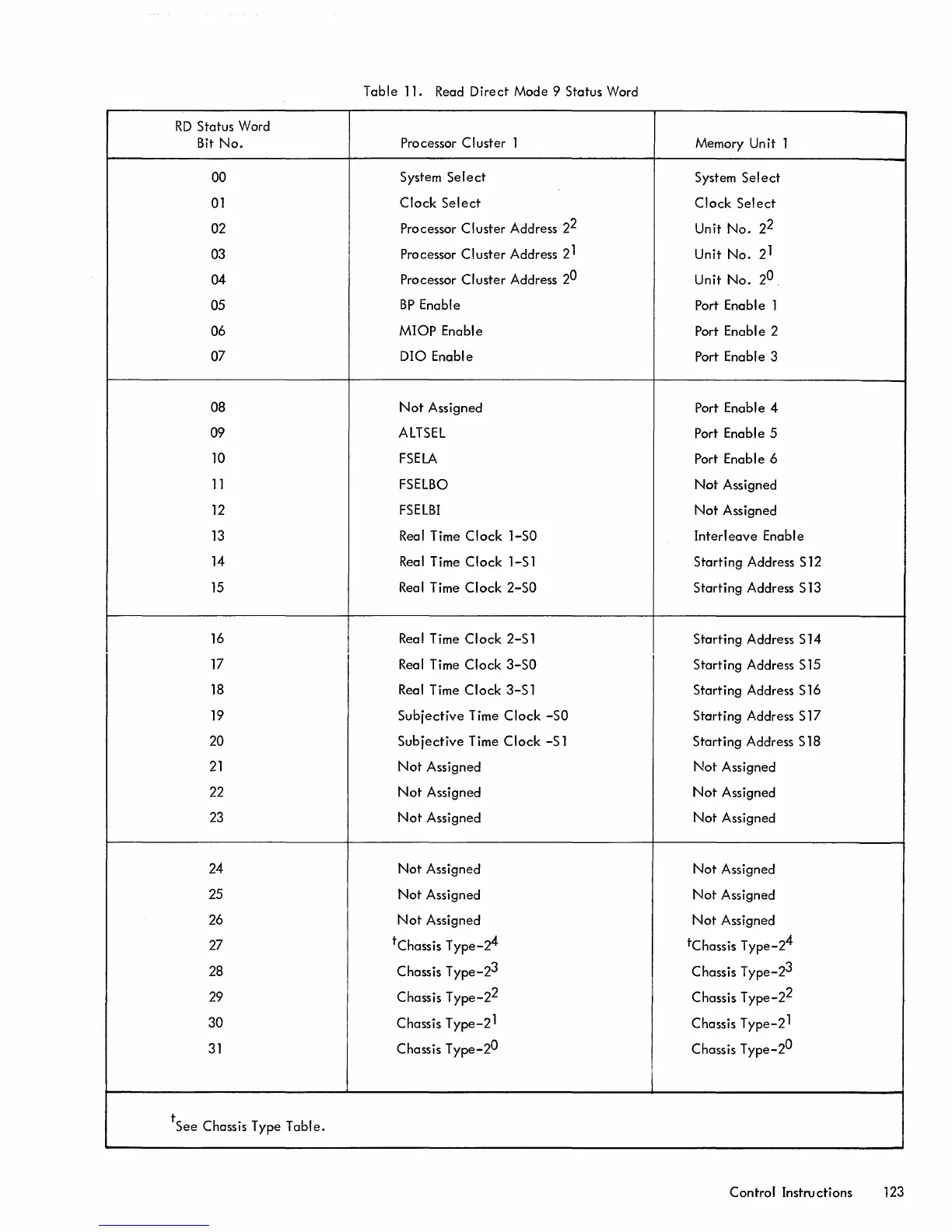

Table 11. Read Direct Mode 9 Status Word
RD Status Word
Bit
No.
Processor Cluster 1
Memory Unit 1
00
System Select
System Select
01
Clock Select
Clock Select
02
Processor Cluster Address 22
Unit
No.
22
03
Processor Cluster Address 21
Unit No.
21
04
Processor Cluster Address 2
0
Unit No.
2°
05
BP Enable
Port Enable 1
06
MIOP Enable
Port Enable 2
07 DIO Enable
Port Enable 3
08
Not Assigned
Port Enable 4
09 ALTSEL
Port Enable 5
10 FSELA
Port Enable 6
11
FSELBO
Not Assigned
12
FSELBI
Not Assigned
13 Real Time Clock 1-S0
Interleave Enable
14
Real Time
Clock 1-S 1 Starting Address S 12
15
Real Time Clock 2-S0 Starting Address S 13
16
Real Time Clock 2-S 1
Starting Address S 14
17
Real Time Clock 3-S0 Starting Address S 15
18
Real Time Clock 3-S 1
Starting Address S 16
19
Subjective Time Clock -so Starting Address S 17
20 Subjective Time Clock -S 1
Starting Address S 18
21
Not Assigned Not Assigned
22
Not Assigned Not Assigned
23
Not Assigned Not Assigned
24
Not Assigned
Not Assigned
25
Not Assigned Not Assigned
26
Not Assigned
Not Assigned
27 tChassis
Type-~
tChassis Type-2
4
28
Chassis
Type-2
3
Chassis
Type-2
3
29
Chassis
Type-2
2
Chassis
Type-2
2
30
Chassis T ype-2
1
Chassis
Type-2
1
31
Chassis Type-2
0
Chassis Type-2
0
tSee Chassis Type Table.
Control Instructions 123
