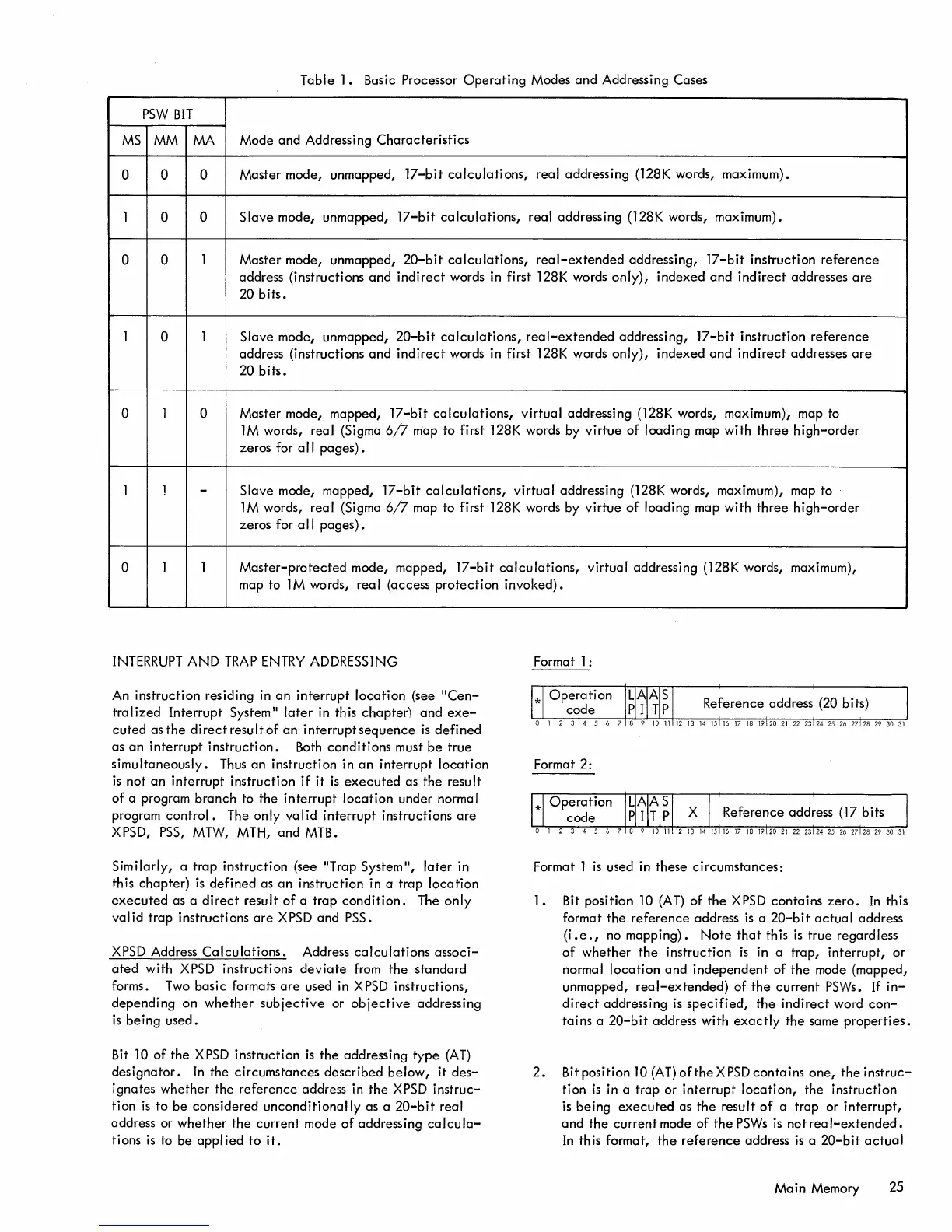

Table
1.
Basic Processor
Operating
Modes
and
Addressing Cases
PSW
BIT
MS
MM
MA
Mode
and
Addressing
Characteristics
0 0 0
Master mode, unmapped,
17-bit
calculations,
real addressing (128K words, maximum).
1
0 0
Slave
mode, unmapped,
17-bit
calculations,
real
addressing (128K words, maximum).
0 0
1
Master
mode, unmapped,
20-bit
calculations,
real-extended
addressing,
17-bit
instruction
reference
address (instructions
and
indirect
words in first 128K words
only),
indexed
and
indirect
addresses
are
20
bits.
1
0
1
Slave mode, unmapped,
20-bit
calculations,
real-extended
addressing,
17-bit
instruction
reference
address (instructions
and
indirect
words in first 128K words only),
indexed
and
indirect
addresses
are
20
bits.
0
1
0
Master mode, mapped,
17-bit
calculations,
virtual
addressing (128K words, maximum), map to
1M
words, real (Sigma
6/7
map to first 128K words by
virtue
of
loading map with
three
high-order
zeros for
all
pages).
1
1
-
Slave
mode, mapped,
17-bit
calculations,
virtual
addressing (128K words, maximum), map to
1M
words, real (Sigma
6/7
map to first 128K words by
virtue
of
loading map with
three
high-order
zeros for a
II
pages).
0
1 1
Master-protected
mode, mapped,
17-bit
calculations,
virtual addressing (128K words, maximum),
map to 1 M words,
rea
I (access
protection
invoked).
INTERRUPT
AND
TRAP
ENTRY
ADDRESSING
An
instruction
residing in
an
interrupt
location
(see
"Cen-
tralized
Interrupt
System"
later
in this chapter!
and
exe-
cuted
asthe
directresultof
an
interruptsequence
is
defined
as
an
interrupt
instruction.
Both
conditions
must
be
true
simultaneously.
Thus
an
instruction in
an
interrupt
location
is
not
an
interrupt
instruction
if
it
is
executed
as
the
result
of
a program
branch
to the
interrupt
location
under normal
program
control.
The only va I id
interrupt
instructions
are
XPSD,
PSS,
MTW, MTH, and
MTB.
Similarly, a
trap
instruction (see "Trap System",
later
in
this
chapter)
is
defined
as
an
instruction
in a
trap
location
executed
as a
direct
result
of
a
trap
condition.
The
only
valid
trap
instructions
are
XPSD and PSS.
XPSD Address
Calculations.
Address
calculations
associ-
ated
with XPSD instructions
deviate
from
the
standard
forms.
Two
basic
formats
are
used in
XPSD
instructions,
depending
on
whether
subjective
or
objective
addressing
is
being
used.
Bit 10
of
the
XPSD instruction
is
the
addressing
type
(AT)
designator.
In
the circumstances
described
below,
it
des-
ignates
whether
the
reference
address in
the
XPSD
instruc-
tion
is
to
be
considered
unconditionally
as a
20-bit
real
address or
whether
the
current
mode
of
addressing
calcula-
tions
is
to be appl ied
to
it.
Format 1:
Format 2:
Format 1
is
used in
these
circumstances:
1.
Bit position 10
(AT)
of
the
XPSD
contains
zero.
In
this
forma t
the
reference
address
is
a
20-b
it
actua
I address
(i
.e.,
no
mapping).
Note
that
this
is
true regardless
of
whether
the
instruction
is
in a
trap,
interrupt,
or
normal
location
and
independent
of
the
mode (mapped,
unmapped,
real-extended)
of
the
current
PSWs.
If
in-
direct
addressing is
specified,
the
indirect
word
con-
tains
a
20-bit
address
with
exactly
the
same
properties.
2.
Bit position
10
(AT)
oftheXPSD
contains
one,
theinstruc-
tion
is
in
a
trap
or
interrupt
location,
the
instruction
is
being
executed
as
the
result
of
a trap or
interrupt,
and
the
current
mode of
the
PSWs
is
not rea
I-extended.
In
this format,
the
reference
address is a
20-bit
actual
Ma i n Memory 25
