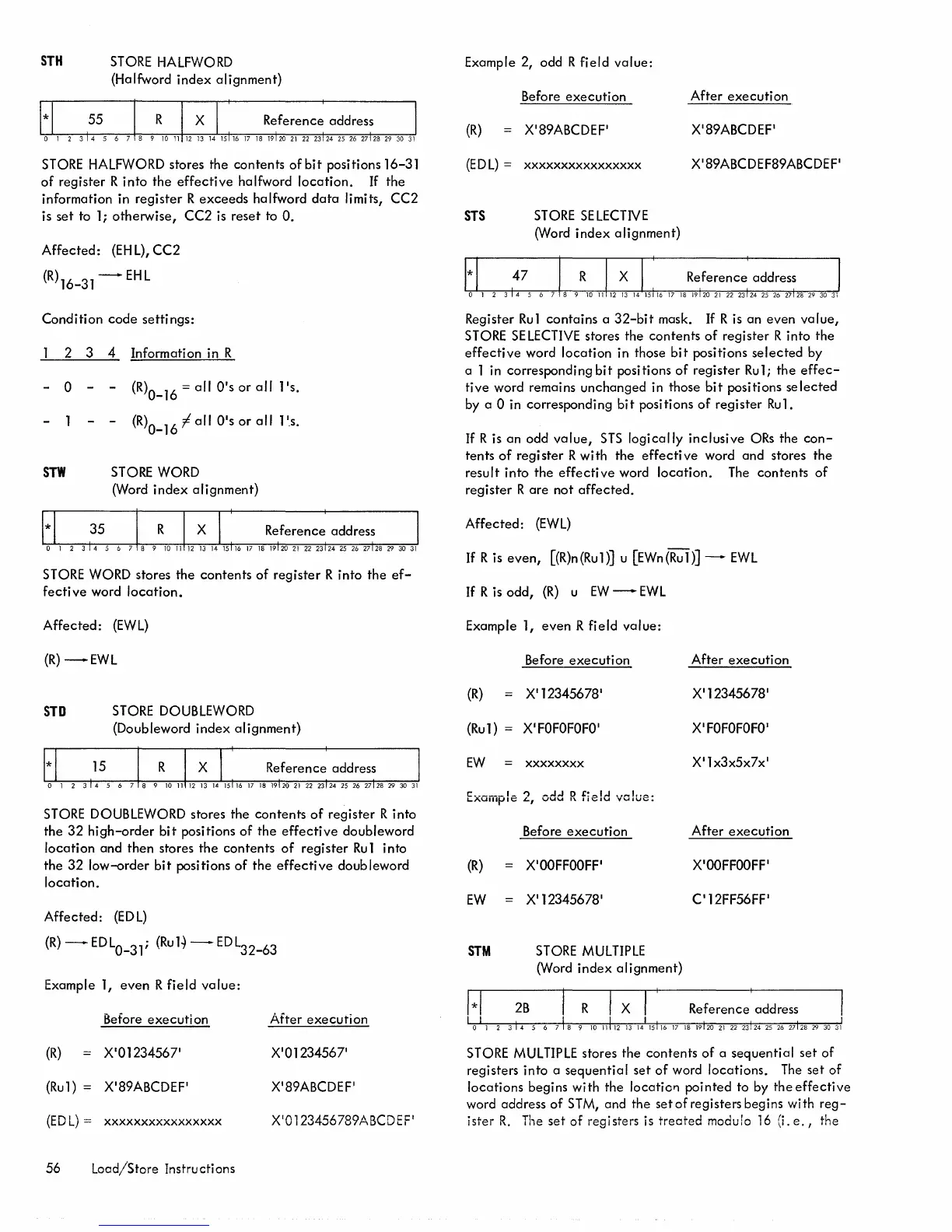

Xerox 560 Reference Manual

STH
STORE HALFWORD
(Halfword index alignment)
STORE HALFWORD stores the contents of bit positions 16-31
of register R into the effective halfword location. If the
information in register R exceeds halfword data limits, CC2
is set to 1; otherwise, CC2 is reset to O.
Affected: (EHL), CC2
(R)16-31- EHL
Condition code settings:
2 3 4 Information in R
-
0 (R)0-16 = all O's or all lis.
(R)0-16 I all O'S or all l'.s.
STW STORE WORD
(Word index alignment)
STORE WORD stores the contents of register R into the ef-
fective word location.
Affected: (EWL)
(R) -EWL
STD STORE DOUBLEWORD
(Doubleword
index alignment)
STORE DOUBLEWORD stores the contents of register R into
the 32 high-order bit positions of the effective doubleword
locati on and then stores the contents of regi ster Ru 1 into
the 32 low-order bit positions of the effective doubleword
location.
Affected: (E D L)
(R) - EDL
O
_
31
; (RuH
- EDL
32
_
63
Example 1, even R field value:
Before execution After execution
(R) X
1
01234567
'
X
1
01234567
'
(Rul) = X'89ABCDEF' X'89ABCDEF
'
(ED L):::= xxxxxxxxxxxxxxxx X'Q 1 23456789ABCDEF'
56 Load/Store Instructions
Example 2, odd R field value:
Before execution
(R) X
I
89ABCDEF
'
(E D L) = xxxxxxxxxxxxxxxx
STS STORE SE LECTNE
(Word
index alignment)
After execution
X'89ABCDEF'
X
I
89ABCDEF89ABCDEF'
Register Rul
contains a 32-bit mask. If R is an even value,
STORE SELECTIVE stores the contents of register R into the
effective word location in those bit positions selected by
a 1 in
corresponding bit positions of register Rul; the effec-
tive word remains unchanged in those bit positions selected
by a 0 in corresponding bit positions of register Rul.
If R is an odd value, STS logically inclusive ORs the con-
tents of register R with the effective word and stores the
result into the effective word location. The contents of
register R are not affected.
Affected: (EWL)
If R is even, [(R)n(Rul)] u [EWn(Rul)] - EWL
If R is odd, (R) u EW - EWL
Example 1, even R field value:
Before execution
(R) X'12345678'
(Ru 1) = X' FOFOFOFO
'
EW
(R)
EW
STM
xxxxxxxx
Before execution
X'OOFFOOFF'
X'12345678'
STORE MULTIPLE
(Word
index alignment)
After execution
X'12345678
'
X'
FOFOFOFO'
X'lx3x5x7x'
After execution
X'OOFFOOFF'
C' 12FF56FF I
/*/ 2B
I R I X I I Reference address I
10
1
] 23145
718 9 ]0 11112 13 14'151]6 17 18 19120 21 22 23!24 25 26 27128 29 30 31'
STORE MULTIPLE stores the contents of a sequential set of
registers into a sequential set of word locations. The set of
locations begins with the 10catiol1 pointed to by the effective
word address of STM, and the set of registers begins with reg-
i ster R. The set of regi sters is treated modu fo 16 (i. e., the
