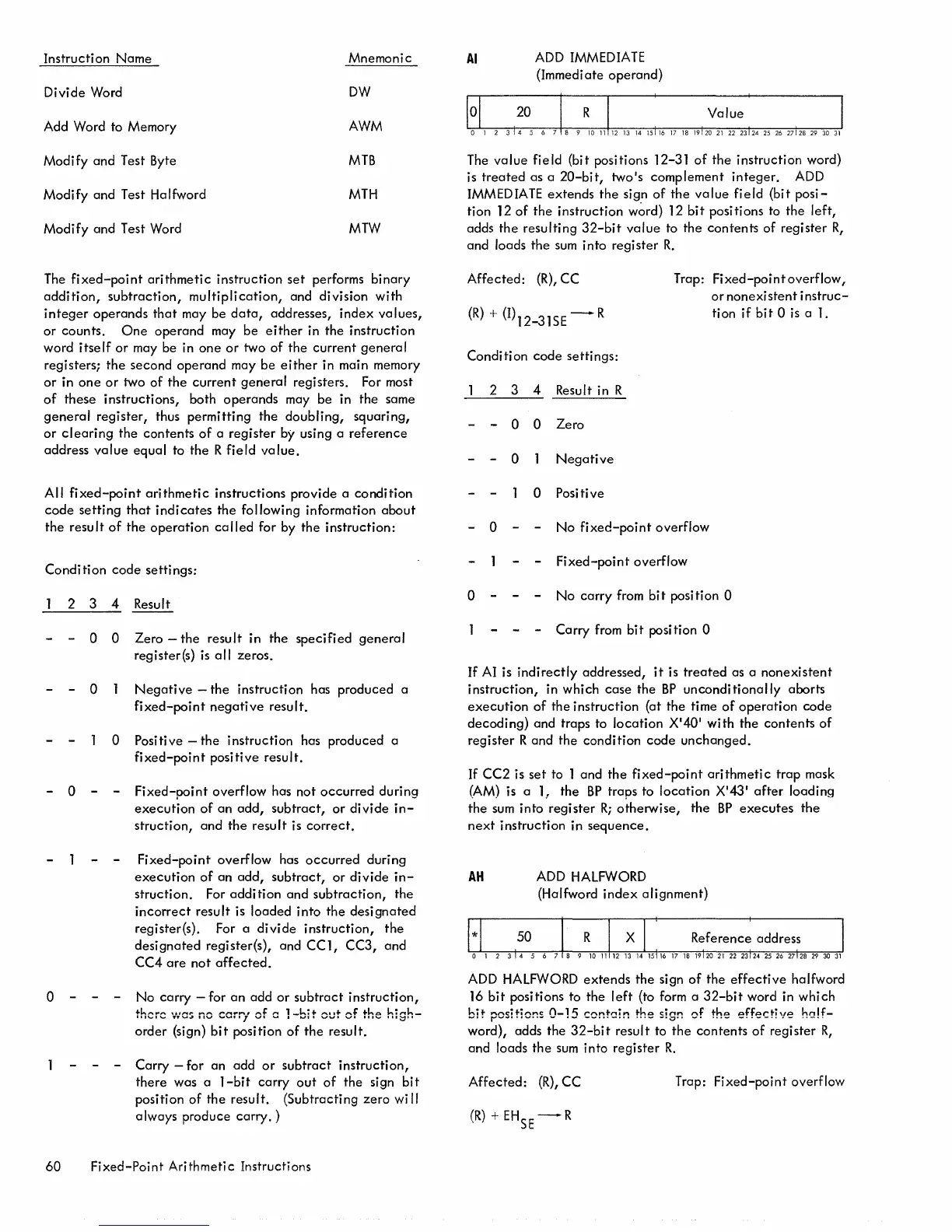

Xerox 560 Reference Manual

Instruction Name
Mnemonic
Divide Word
DW
Add Word to Memory
AWM
Modify and Test Byte
MTB
Modify and Test Halfword
MTH
Modify and Test Word
MTW
The fixed-point arithmetic instruction set performs binary
addition, subtraction, multiplication, and division with
integer operands that may be data, addresses, index values,
or counts. One operand may be either in the instruction
word itself or may be in one or two of the current general
registers; the second operand may be either in main memory
or in one or two of the current general registers. For most
of these instructions, both operands may be in the same
general register, thus permitting the doubling, squaring,
or clearing the contents of a register by using a reference
address value equal to the R field value.
All fixed-point arithmetic instructions provide a condition
code setting that indicates the following information about
the result of the operation called for by the instruction:
Condition code settings:
o
2 3 4 Result
o
o
0 Zero - the result in the specified general
register(s) is all zeros.
o Negative - the instruction has produced a
fixed-point negative result.
o Positive - the instruction has produced a
fixed-point positive result.
Fixed-point overflow has not occurred during
execution of an add, subtract, or divide in-
struction, and the result is correct.
Fixed-point overflow has occurred during
execution of an add, subtract, or divide in-
struction. For addition and subtraction, the
incorrect result is loaded into the designated
register(s). For a divide instruction, the
designated register(s), and CC1, CC3, and
CC4 are not affected.
No carry - for an add or subtract instruction,
there \,ves no carrl of a l-bit cut of the h:gh-
order (sign) bit position of the result.
- Carry - for
an add or subtract instruction,
there was a l-bit carry out of the sign bit
position of the result. (Subtracting zero wi II
a Iways produce carry. )
60 Fixed-Point Arithmetic Instructions
AI ADD IMMEDIATE
(Immediate
operand)
The va I ue fi e Id (bi t posi ti ons 12-31 of the i nstructi on word)
is
treated as a 20-bit, two's complement integer. ADD
IMMEDIATE extends the sign of the value field (bit posi-
tion 12 of the instruction w~rd) 12 bit positions to the left,
adds
the resulting 32-bit value to the contents of register R,
and loads the sum into register R.
Affected: (R), CC
(R) + (I)12-31SE - R
Condition code settings:
2 3 4 Result in R
-
0 0 Zero
-
0 Negative
o Positive
Trap:
Fixed-point overflow,
or nonexi stent i nstruc-
tion if bit 0 is a 1.
- 0
No fixed-point overflow
Fixed-point overflow
o
No carry from bit position 0
- Carry from bit position 0
If AI is indirectly addressed, it is treated as a nonexistent
instruction, in which case the BP unconditionally aborts
execution of the instruction (at the time of operation code
decoding) and traps to location X'40' with the contents of
register R and the condition code unchanged.
If CC2 is set to 1 and the fixed-point arithmetic trap mask
(AM) is a
1, the BP traps to location X'43' after loading
the sum into register R; otherwise, the BP executes the
next instruction in sequence.
AH
o 1 2
ADD HALFWORD
(Halfword
index alignment)
ADD HALFWORD extends the sign of the effective halfword
16 bit positions to the left (to form a 32-bit word in which
bit positions 0-15 contain the sign of the effective ha!f-
word), adds the 32-bit result to the contents of register R,
and loads the sum into register R.
Affected: (R), CC
Trap: Fixed-point overflow
(R)+EHSE-R
