Machine Components
Xerox 6204 Wide Format Solution 21
Product Overview
2

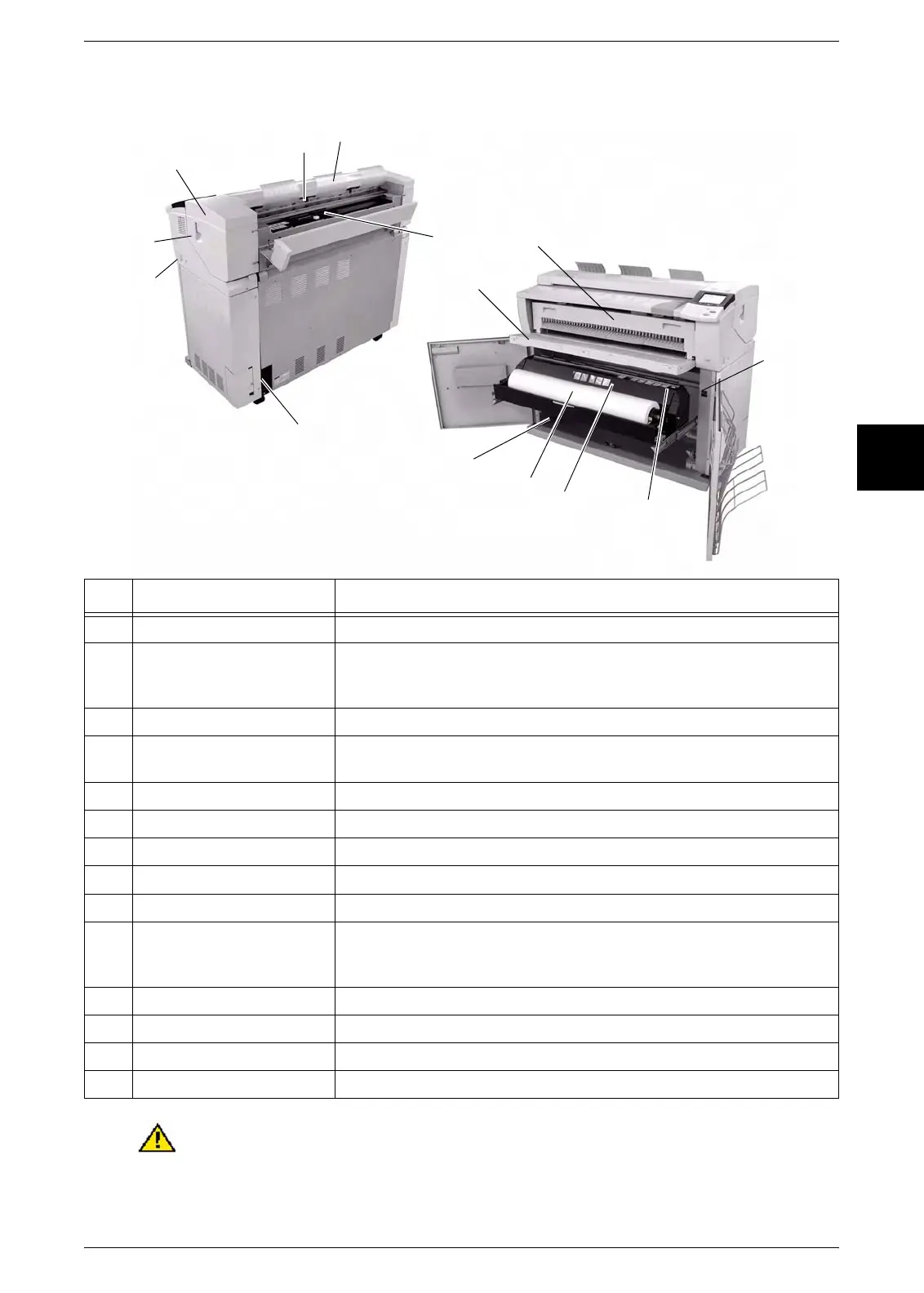

Right and Rear Views
WARNING: Never touch a labeled area on hot or sharp parts. You may receive a burn
or incur other injuries.
No. Component Function
11 Scanner exit port Scanned originals exit here.
12 Front return guide Returns scanned originals to the front. An optional Document Catch
Tray may be installed on the rear of the machine. Ask your Xerox
representative for more information about this option.
13 Toner supply port Toner is added through this port.
14 Circuit Breaker Switches the input power to the machine on/off and provides
overcurrent and short circuit protection.
15 Power Switch Switches the machine power on/off. (Also called the Standby switch.)
16 Upper unit release lever Lift up this lever to open the upper unit.
17 Upper unit Open this to clear a paper jam.
18 Manual feed tray (Bypass) Open and load media here when making manual feed copies or prints.
19 Fuser cover Open this to clear a paper jam.
20 Media heater switch Switches the media heater on/off.
Powering on the media heater helps prevent the media from wrinkling.
The media heater switch is normally on.
21 Cutter button Cuts the lead edge of roll media.
22 Cutter cover Covers the cutter to cut media. Normally, do not open this cover.
23 Roll 1 Load roll media here.
24 Roll 2 location A second, optional roll (Roll 2) may be installed below Roll 1.
12
13
14
15
16
17
18
19
20
21
22
23
24
(controller not shown)
11
