2 Product Overview
22 Xerox 6204 Wide Format Solution
Product Overview
2

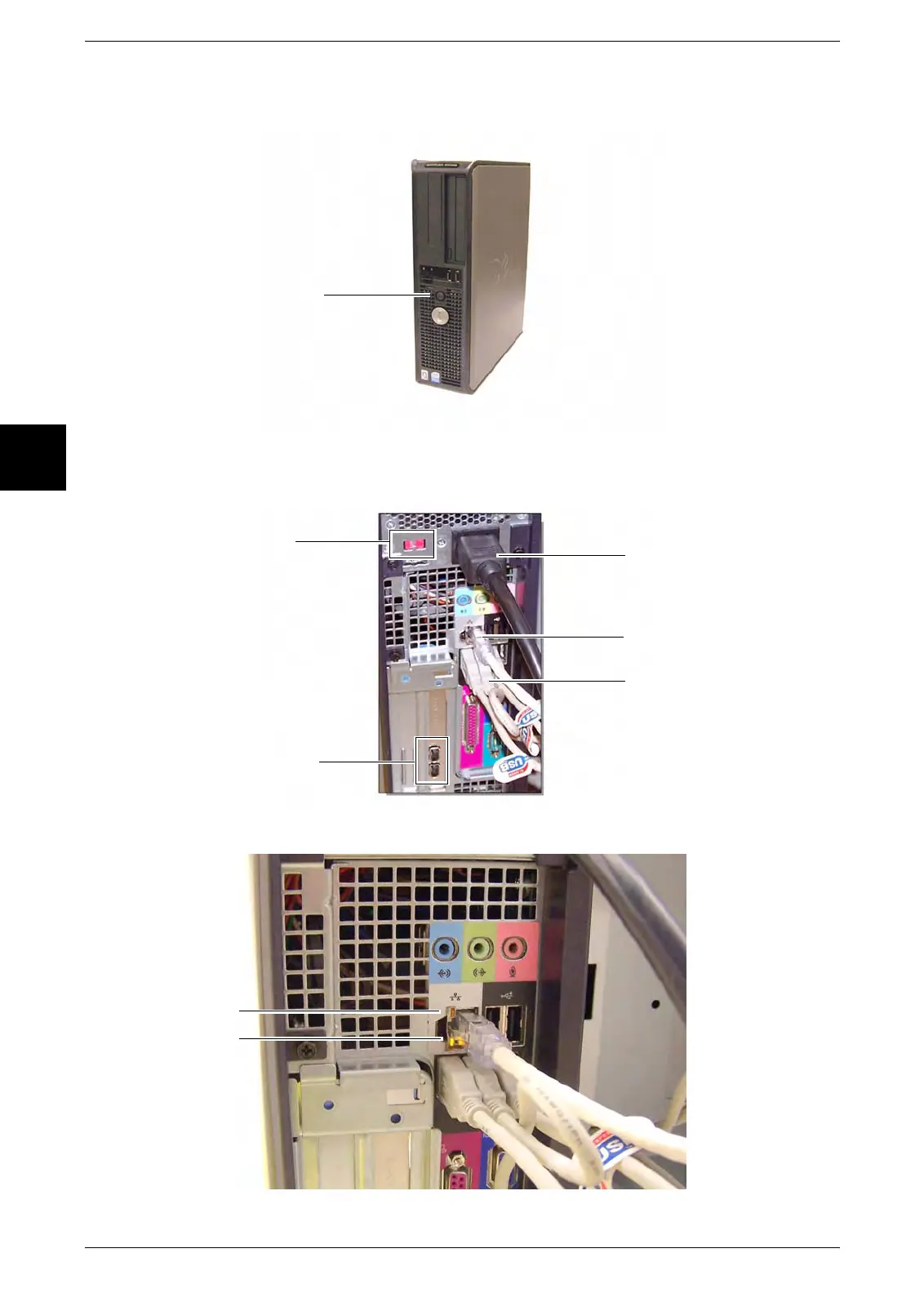

YKE-N Controller (front view)
YKE-N Controller (rear views)
Power
Button
Power Cable
Ethernet Cable Connection
USB Cables:
2 on Printer model;
3 on Copier/Printer model
The USB cables provide com-
munication pathways between
the controller and the Xerox
6204 Wide Format Solution.
IEEE 1394 Firewire connectors
(for connecting the Wide Format
Scan System)
115/230V Selector Switch
This switch is set to the cor-
rect position during machine
installation. Do not change its
position.
Activity LED
Link LED
On a system that is work-
ing normally and has a
good network connection,
the Link LED will be illu-
minated continuously; the
Activity LED will blink in
response to network ac-
tivity
