Xerox Phaser 3160B Service Manual

8-10 Phaser 3140/3155/3160 Printer Service Manual
Service Parts Disassembly
5. Rotate the Pick Up Roller and lift it off the shaft.
Replacement Note

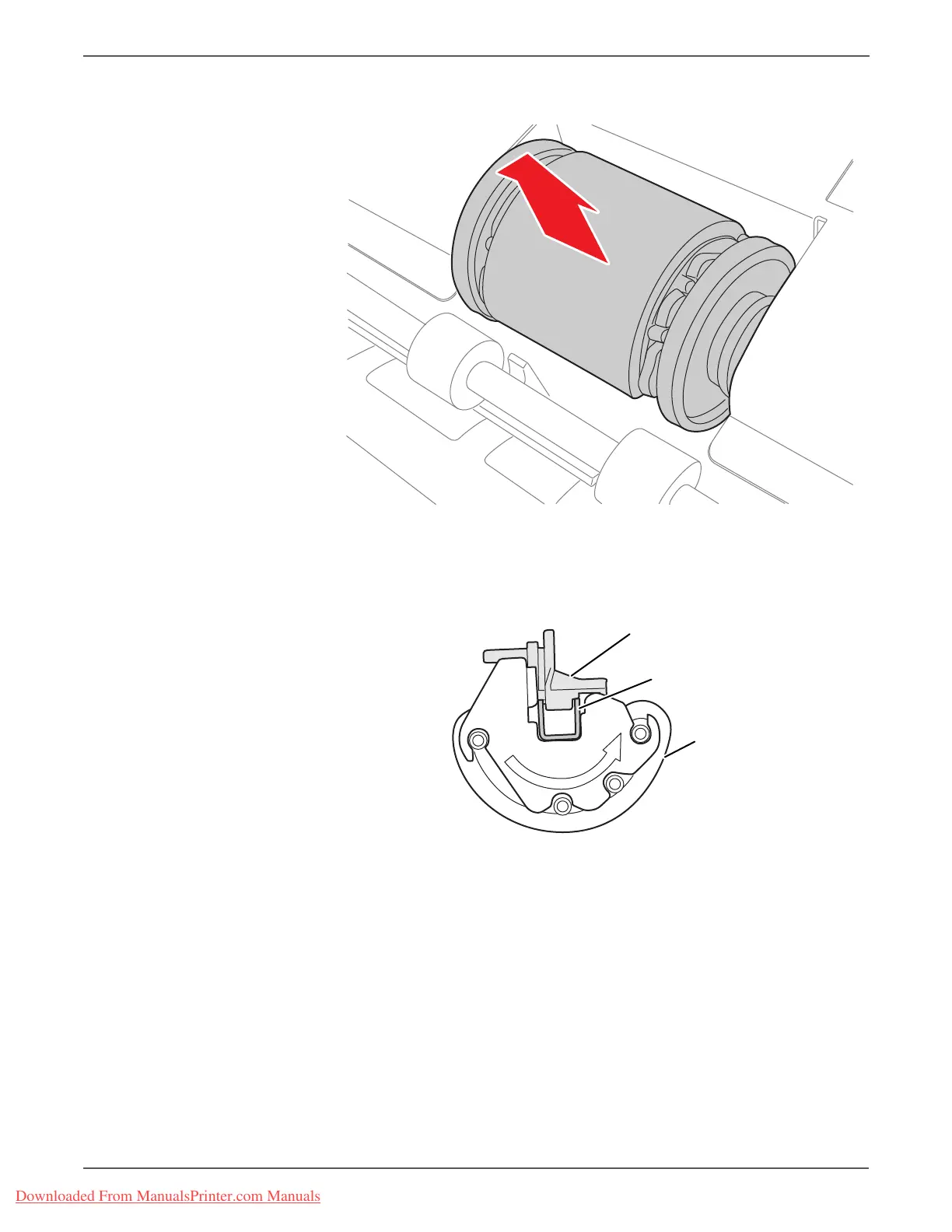

The following illustration shows how the Pick Up Roller is attached to the Feed
Roller Shaft.
s3160-045
Feed Roller Clip
Feed Roller Shaft
Feed Roller
s3160-046
