Xerox Phaser 3160B Service Manual

Phaser 3140/3155/3160 Printer Service Manual 10-23
Wiring

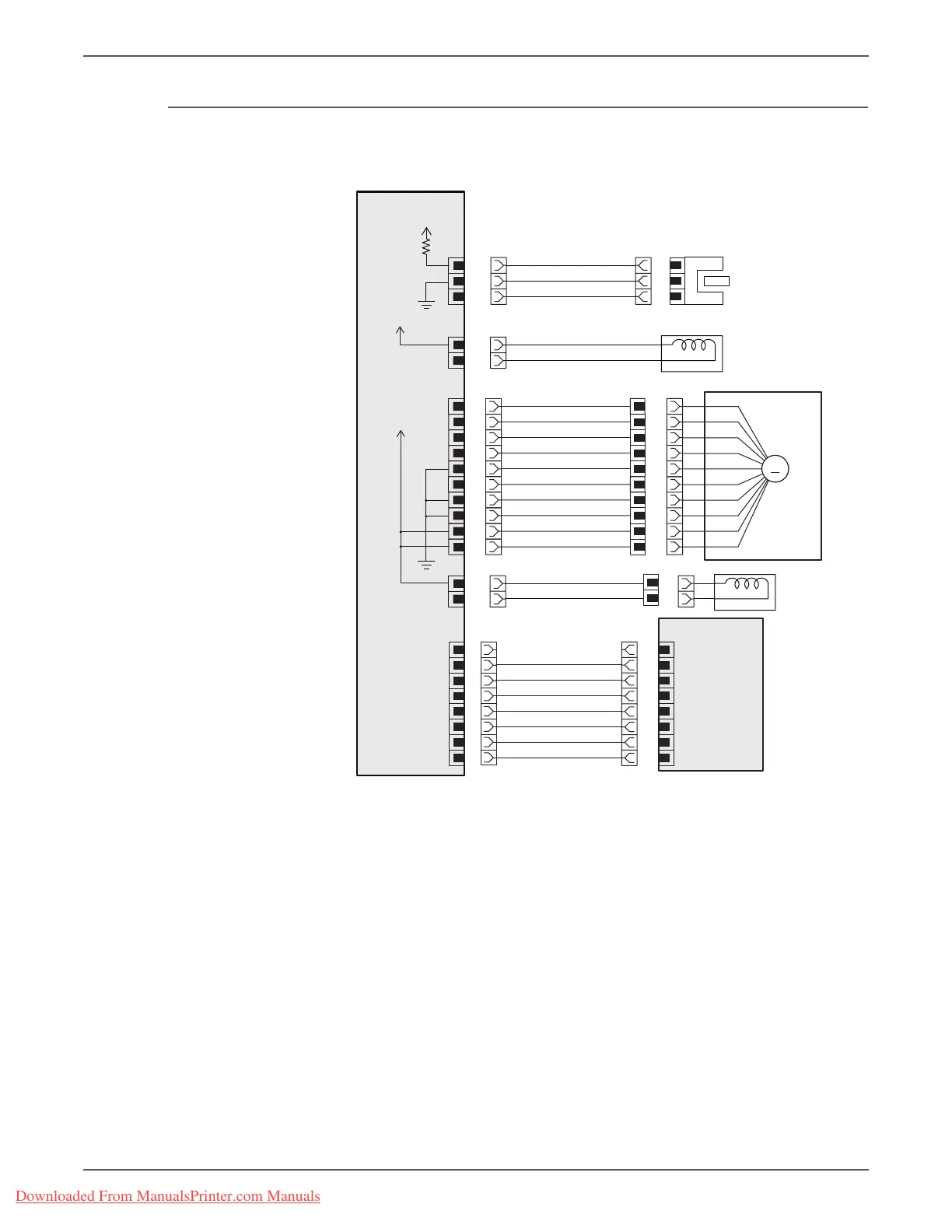

3160 Controller Board Wiring
3160
Controller Board
1
2
3
3
2
1
+3.3VDC
GND
nSENS_OUTBIN_FULL
Outbin Full Sensor
+24VS
REGI_CLUTCH
11
12
Manual Feed
Solenoid
CN12 CN1
CN22
+24VDC
PICKUP_CLUTCH
1
2
Pickup Solenoid
CN6
CN15
+3.3VDC
1
3
4
5
2
Motor
33 PULL-DOWN (DIR)
BLDC_CLK
BLDC_MOTOR_READY
nBLDC_MOTOR_EN
GND
33 PULL-DOWN (BRAKE)
GND
GND
+24VS
+24VS
6
8
9
10
7
1
3
4
5
2
6
8
9
10
7
1
2
Interlock
+24VDC
Interlock
+24VDC
M
Control Panel
CN1CN9
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
N.C.
nKEY_POWER_SAVE
LED_POWER
GND
nLED_READY
nLED_TONER
nKEY_CANCEL
nLED_ERROR
s3160-108
