Phaser 3140/3155/3160 Printer Service Manual 8-17
Service Parts Disassembly

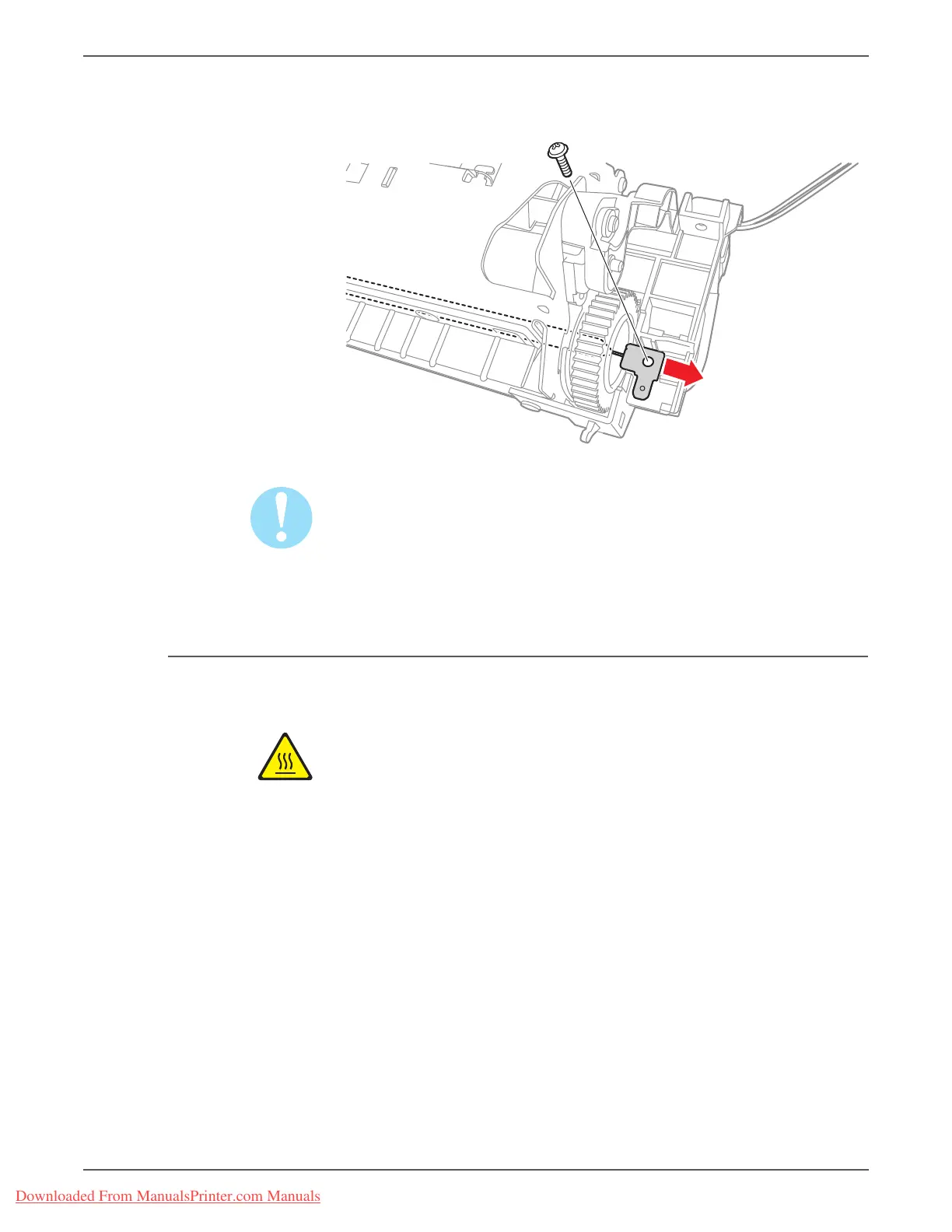

5. Remove 2 screws (8 mm, black, tap), one on each end of the Fuser, and gently
slide the Fuser Lamp out of the Fuser.
Hold the halogen lamp by the ends so there is no transfer of oil from your
hands onto the lamp, which can damage the lamp.
Heat Roller
PL9.0.36
Turn the printer power Off and allow the Fuser to cool 30 minutes before
performing this procedure.
1. Remove the Fuser (page 8-11).
2. Remove the Fuser Lamp (page 8-15).
