Xerox Phaser 3160B Service Manual

2-6 Phaser 3140/3155/3160 Printer Service Manual
Theory of Operation
Drive Assembly
The Drive Assembly receives power from the Controller Board. The Drive Assembly
consists of the main motor and gear set mounted to a support plate.
• Motor: 24V DC
• Driving Frequency: 2200 rpm

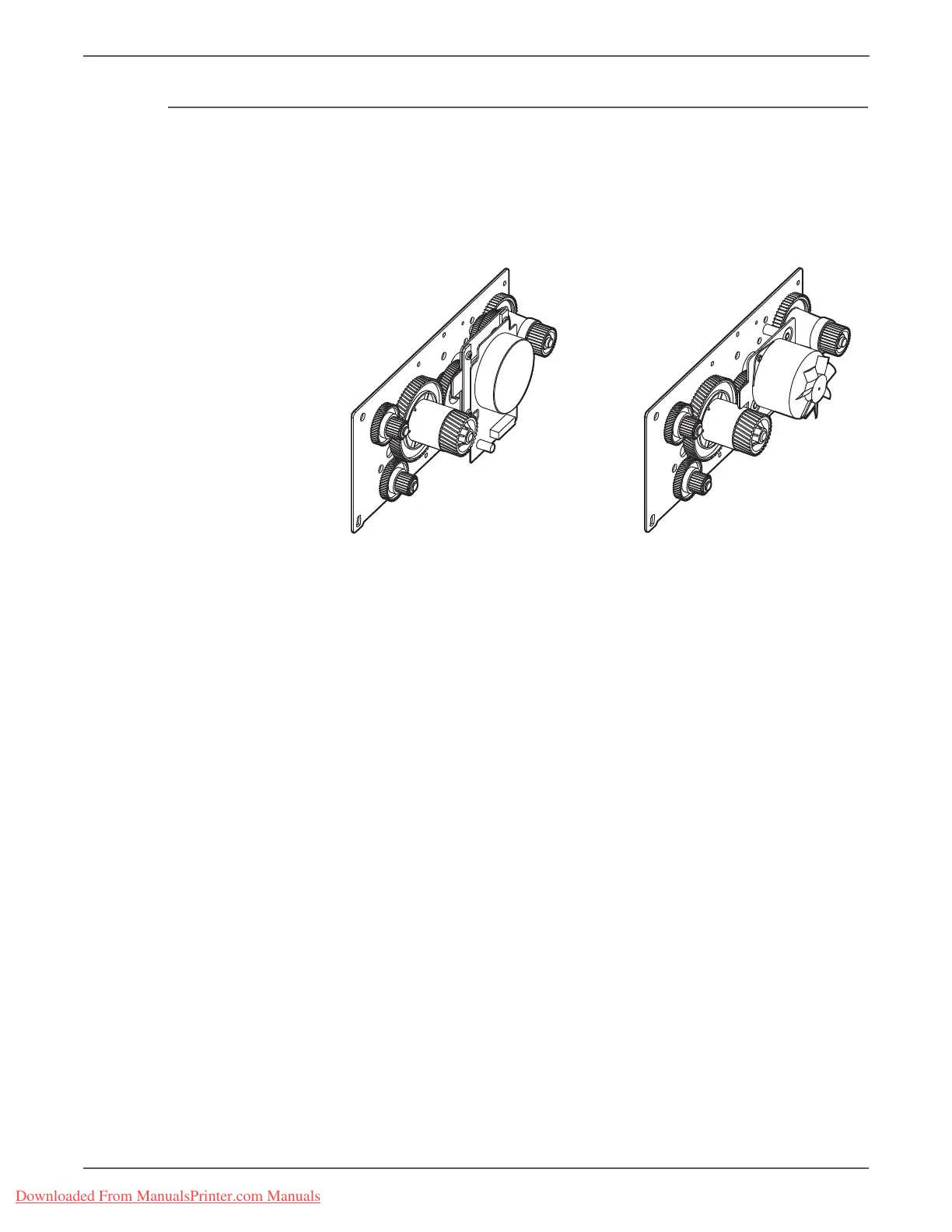

s3160-084
3155 & 3160 3140
