Service Parts Disassembly

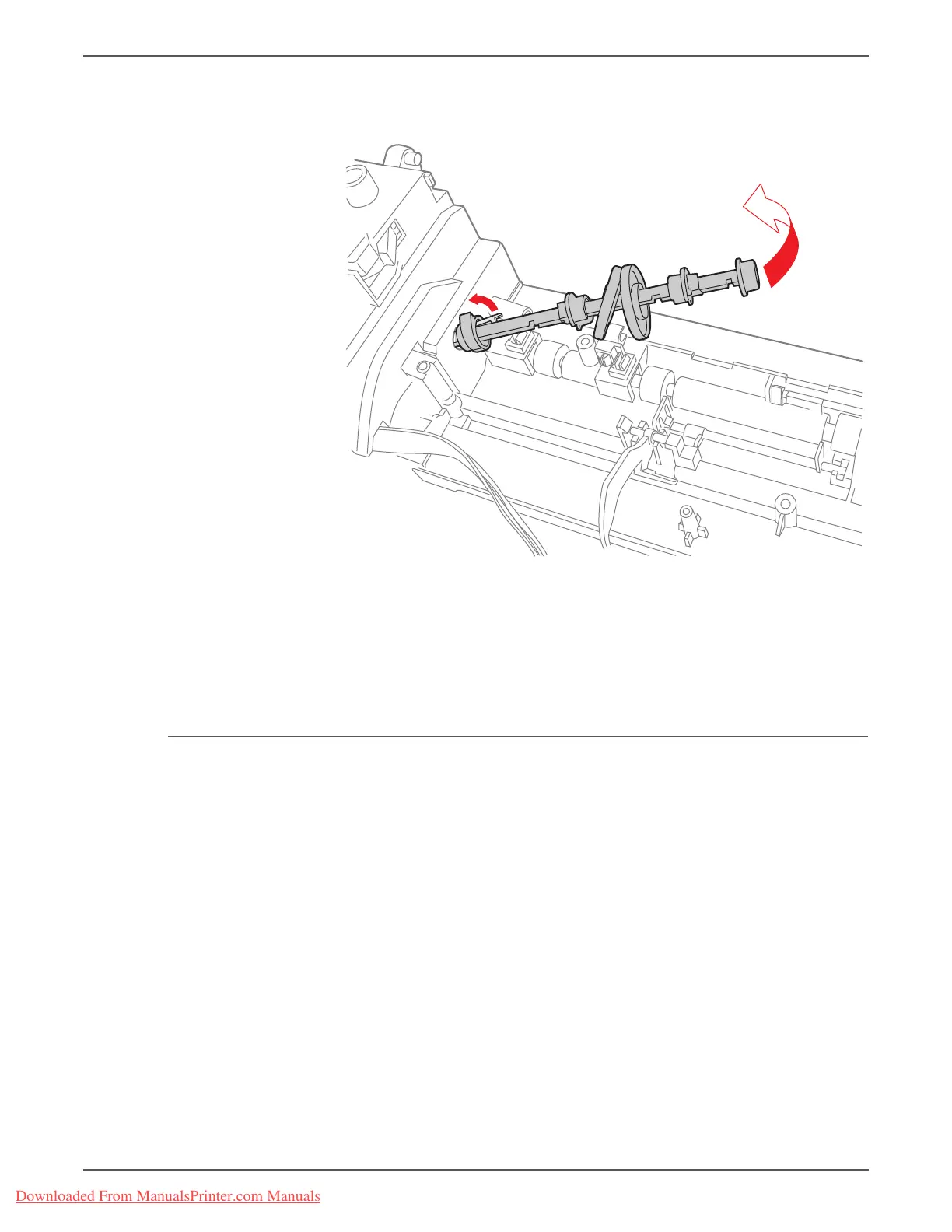

9. Lift the clip on the Pick Up Shaft and slide the Pick Up Assembly slightly to the
left, and then lift the assembly and slide it to the right to remove it.
The back panel of the Drive Assembly is numbered to show the order that the
screws should be installed during installation. Start the 6 screws in the order
listed, and then tighten them in the same order.
When installed on the printer, the numbers on the bracket are upside down.
Drive Assembly
PL7.0 and 7.1
1. Remove the Left Cover (page 8-27).
