Phaser 3140/3155/3160 Printer Service Manual 2-3
Theory of Operation

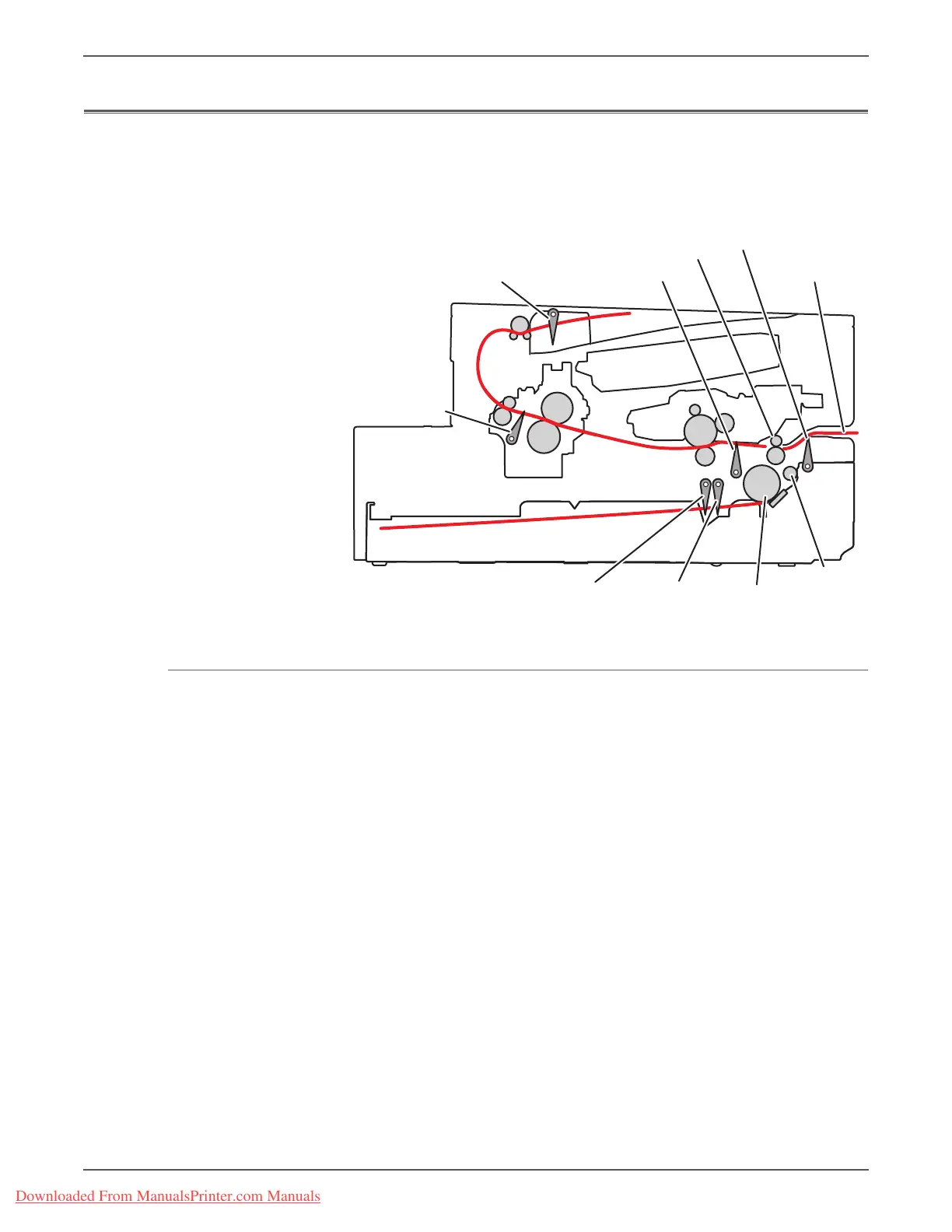

Paper Path
The media supplied from the Paper Tray is transported through the printer as
shown in the illustrations below. Media fed from the manual feed slot enters the
media path at the Feed Idle Roller.
Paper Feeding
The feeding mechanism consists of the manual feeder, Paper Tray, Pick Up Roller,
Feed Rollers, and Holder Pad. The rollers and sensors in the paper feed path control
paper registration and guide the paper through the image transfer, image
development, image fusing, and exit assemblies.
s3160-082
Output Bin Full Sensor
Paper Exit Sensor
Paper Empty Sensor
Paper Feed Sensor
Cover Open Sensor
Manual Feed Sensor
Pick Up Roller
Feed Roller
Feed Idle Roller
Manual Feed Slot
