8-14 Phaser 3140/3155/3160 Printer Service Manual
Service Parts Disassembly
Thermostat
PL9.0.12
Turn the printer power Off and allow the Fuser to cool 30 minutes before
performing this procedure.
1. Remove the Fuser (page 8-11).

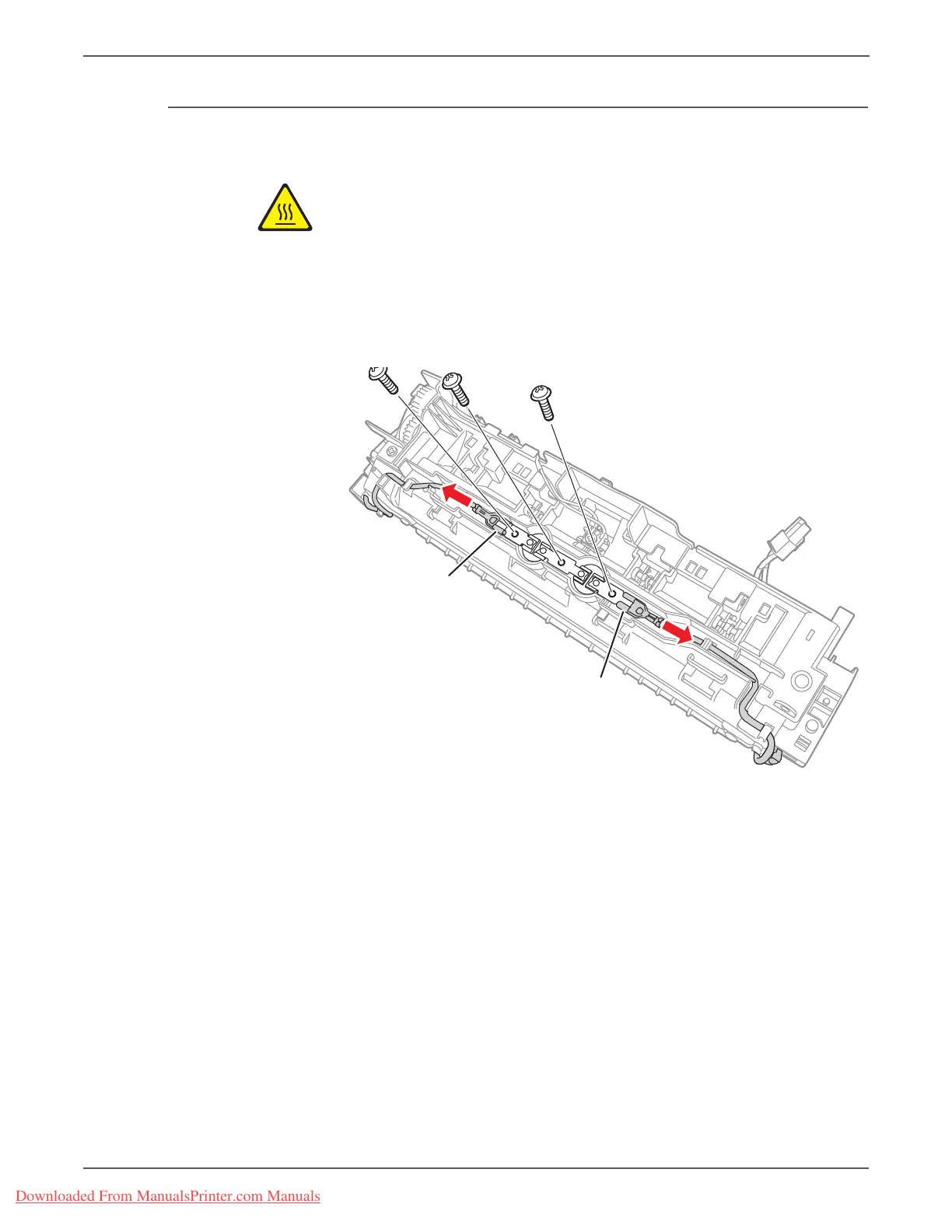

2. Remove 3 screws (8 mm, black) that secure the Thermostat.
3. Lift the Thermostat away from the Fuser Cover.
4. Disconnect the wiring harness connectors CN49 & CN50 from the Thermostat.
5. Remove the Thermostat.
