Xerox Phaser 3160B Service Manual

8-30 Phaser 3140/3155/3160 Printer Service Manual
Service Parts Disassembly
Laser Unit
PL6.0.79

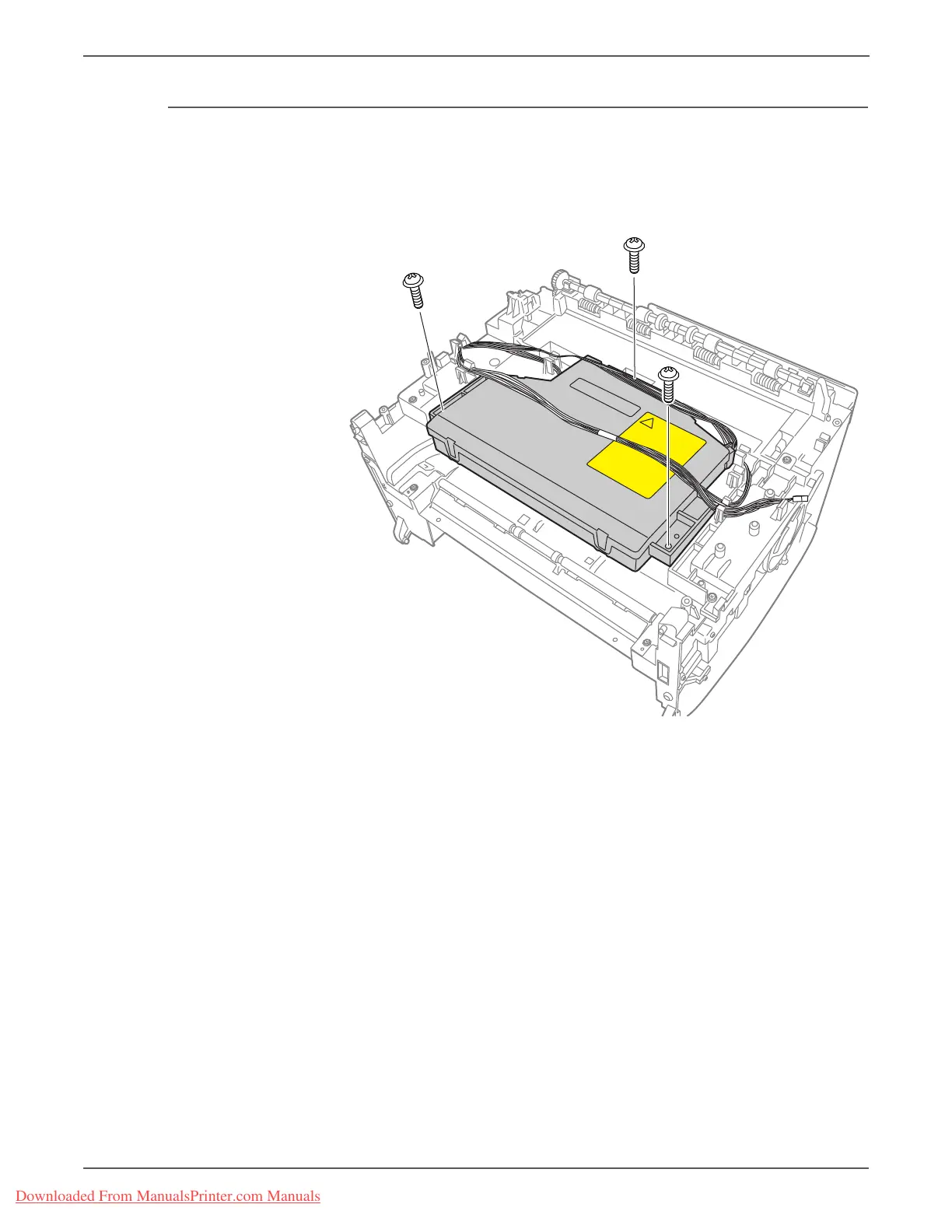

1. Remove the Top Cover (page 8-23).
2. Remove 3 screws (10 mm, silver, tap).
3. Move the harness that lays over the top of the Laser Unit out of the way.
s3160-023
