Xerox Phaser 3160B Service Manual

Phaser 3140/3155/3160 Printer Service Manual 8-63
Service Parts Disassembly
9. Carefully thread the solenoid cable through the side of the printer and remove
the solenoid.
Out Bin Full Sensor
PL6.0.73
1. Remove the Top Cover (page 8-23).

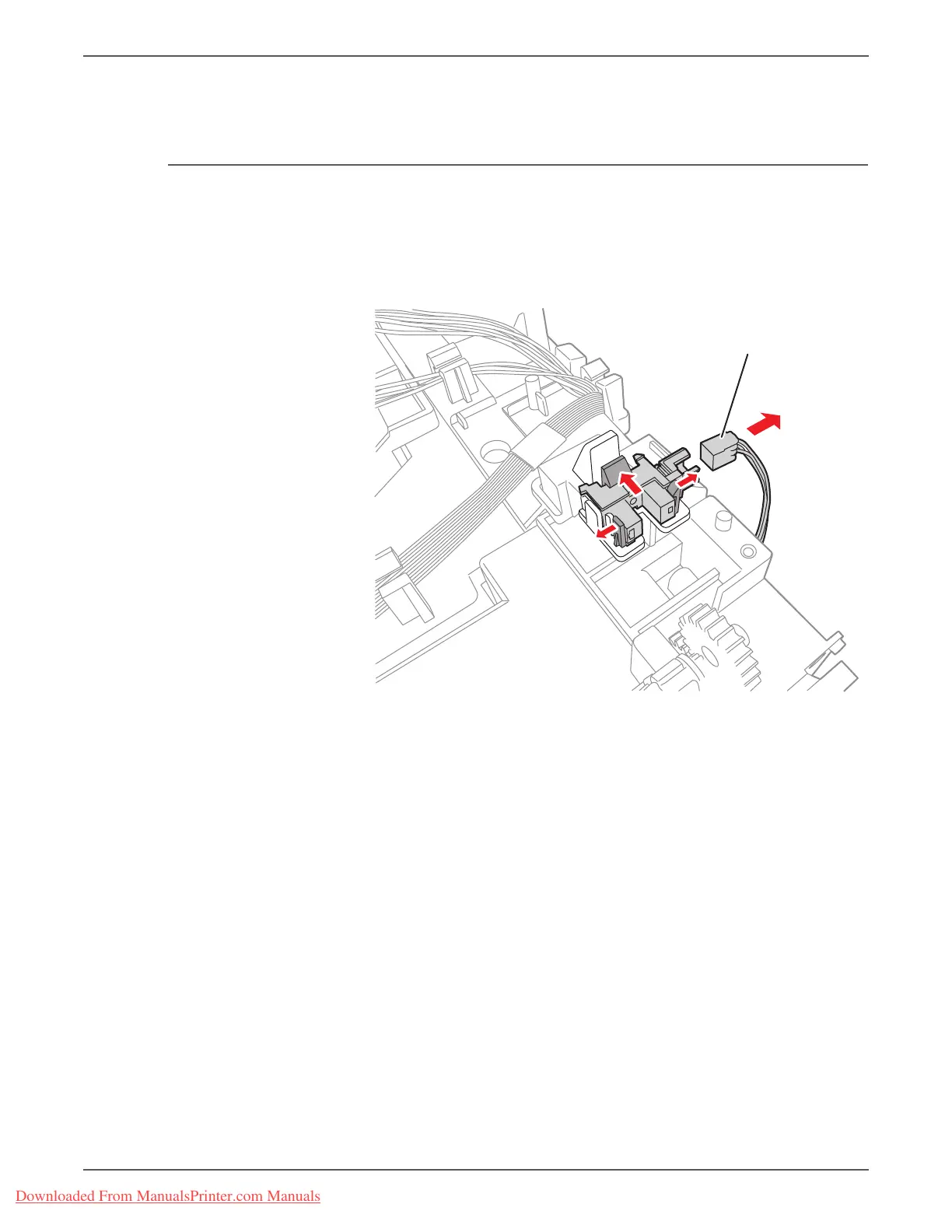

2. Disconnect the wiring harness CN21, and then press the tabs and remove the
sensor.
s3160-063
CN21
