2-10 Phaser 3140/3155/3160 Printer Service Manual
Theory of Operation
Pressure Roller
The Pressure Roller is made of a silicon resin and the surface is coated with Teflon.
When media passes between the Heat Roller and the Pressure Roller, toner is
melted and permanently fixed to the surface of the paper.
Safety Features
Several protection devices are used to prevent Fuser overheating:
• Hardware cuts off Fuser power when overheating is detected.
• Software cuts off Fuser power when overheating is detected.
• Thermostat cuts off power to the lamp.
Interlocks disable the Fuser, motor, and Laser Unit.
• Fuser power is cut off when the front cover is opened.
• Fuser cover temperature is maintained at less than 80° C.

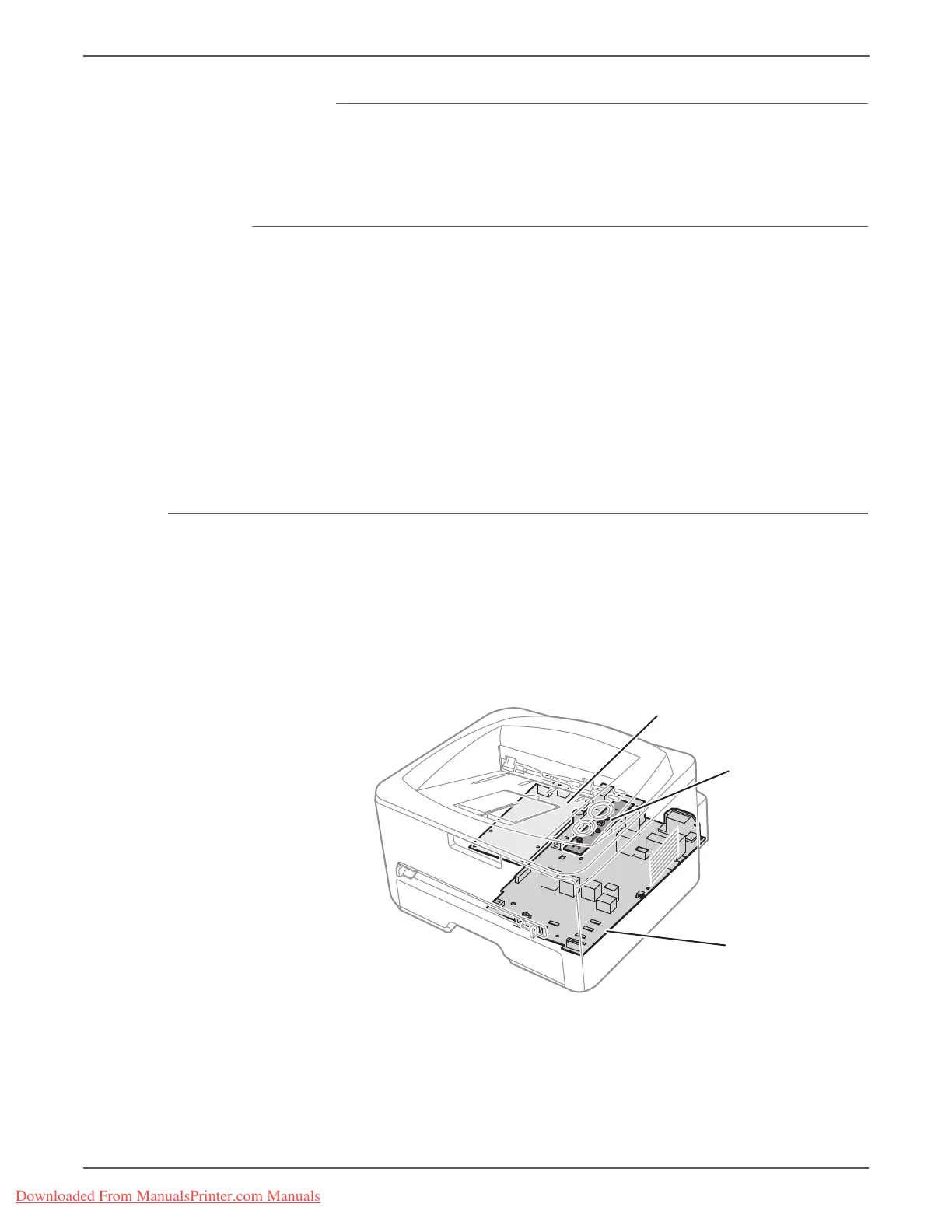

Electrical Components
The printer’s major electrical components consist of these boards:
• Control Panel
• Controller
•Power Supply
Controller
Power Supply
Control Panel
s3160-091
