8-28 Phaser 3140/3155/3160 Printer Service Manual
Service Parts Disassembly
Right Side Cover
PL3.0.4
1. Remove the Front Cover (page 8-23).
2. Remove the Top Cover (page 8-23).
3. Remove the Rear Cover (page 8-26).
4. Lift the Right Side Cover off of the 2 bosses on the front of the printer.
5. Lift the top 2 hooks on the Right Side Cover off of the printer.
6. Lift the Right Side Cover off of the 2 bosses on the rear of the printer and
remove the cover.

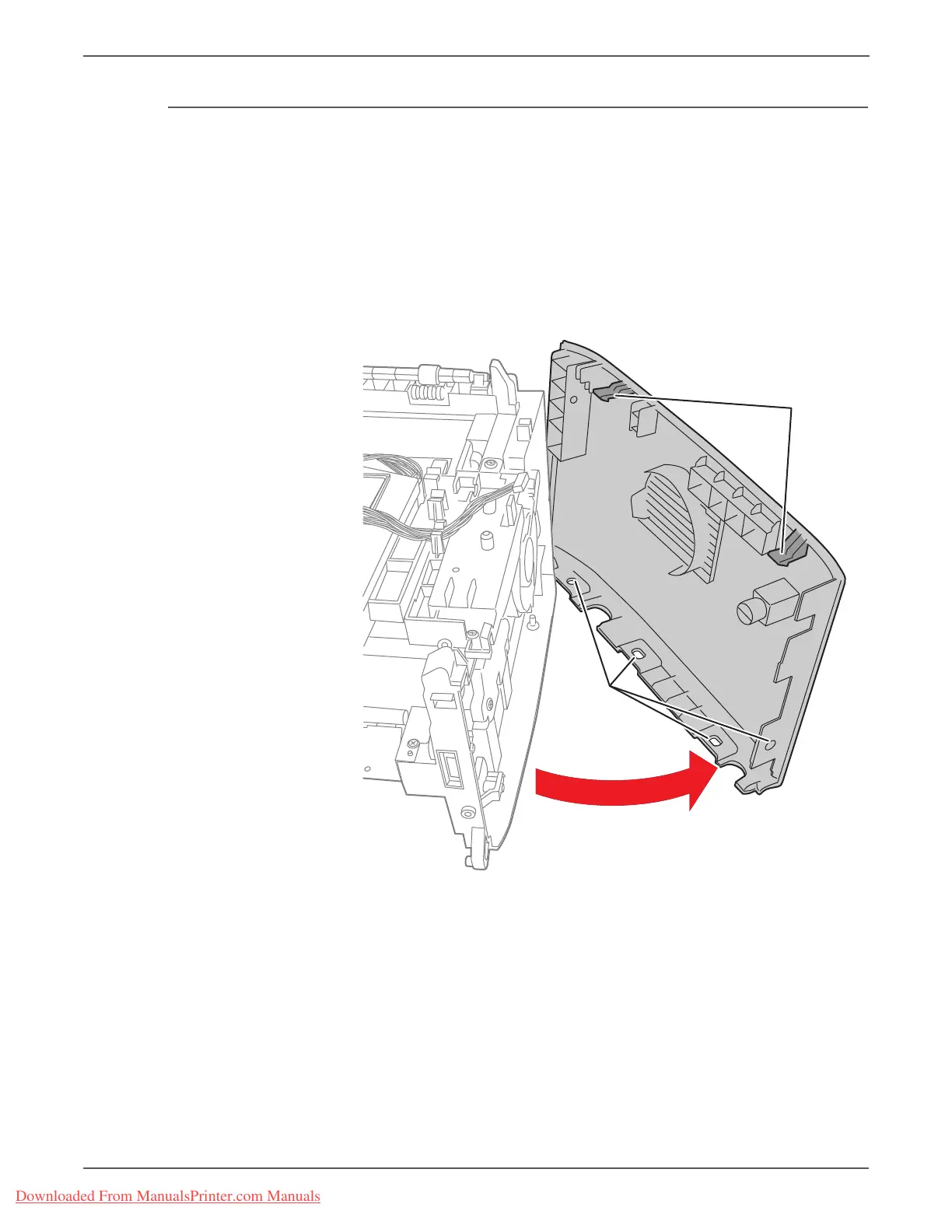

Hooks
s3160-020
Bosses
