8-22 Phaser 3140/3155/3160 Printer Service Manual
Service Parts Disassembly

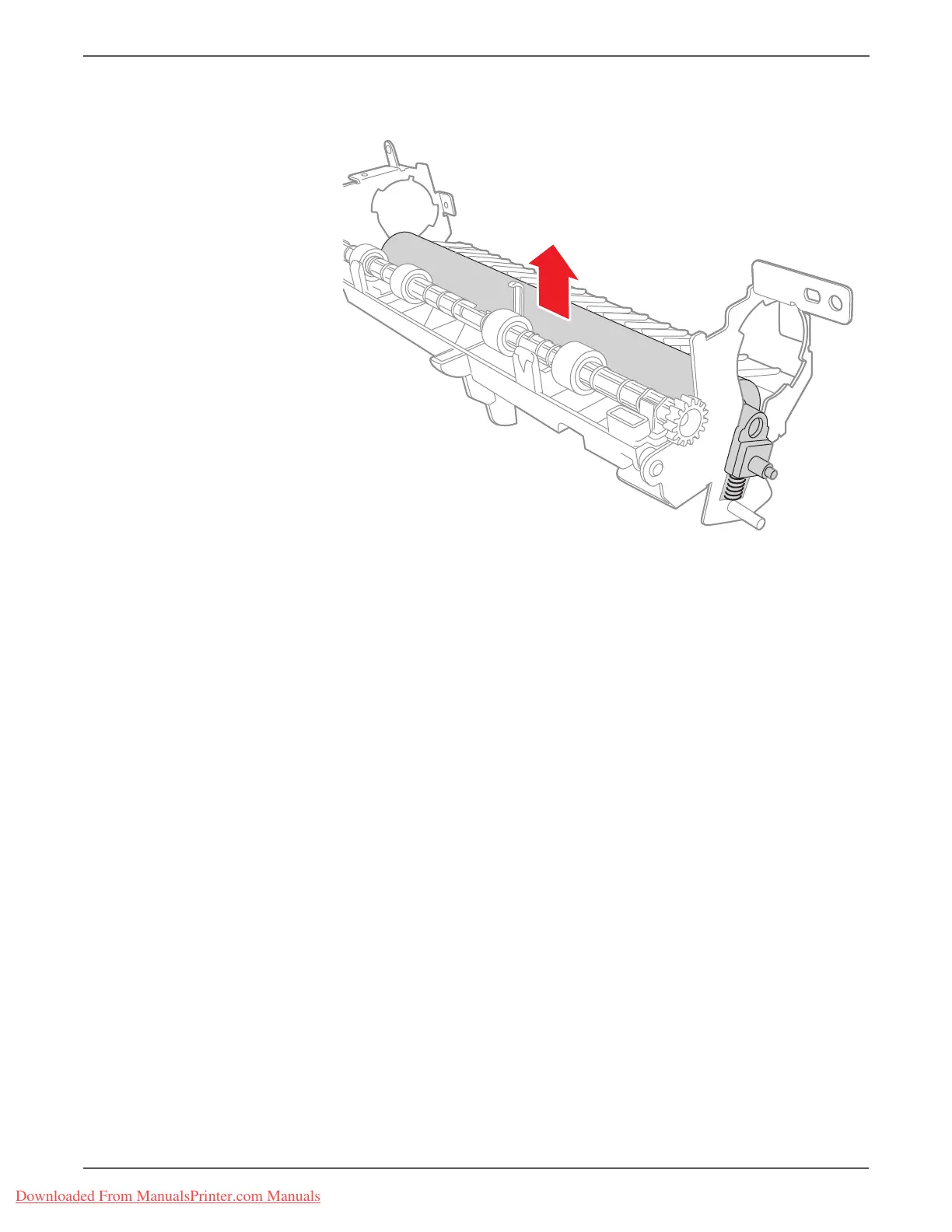

6. Slide the Pressure Roller High Bushing up and away from the Fuser Frame, and
then remove the Pressure Roller.
s3160-060
