Phaser 3140/3155/3160 Printer Service Manual 8-33
Service Parts Disassembly

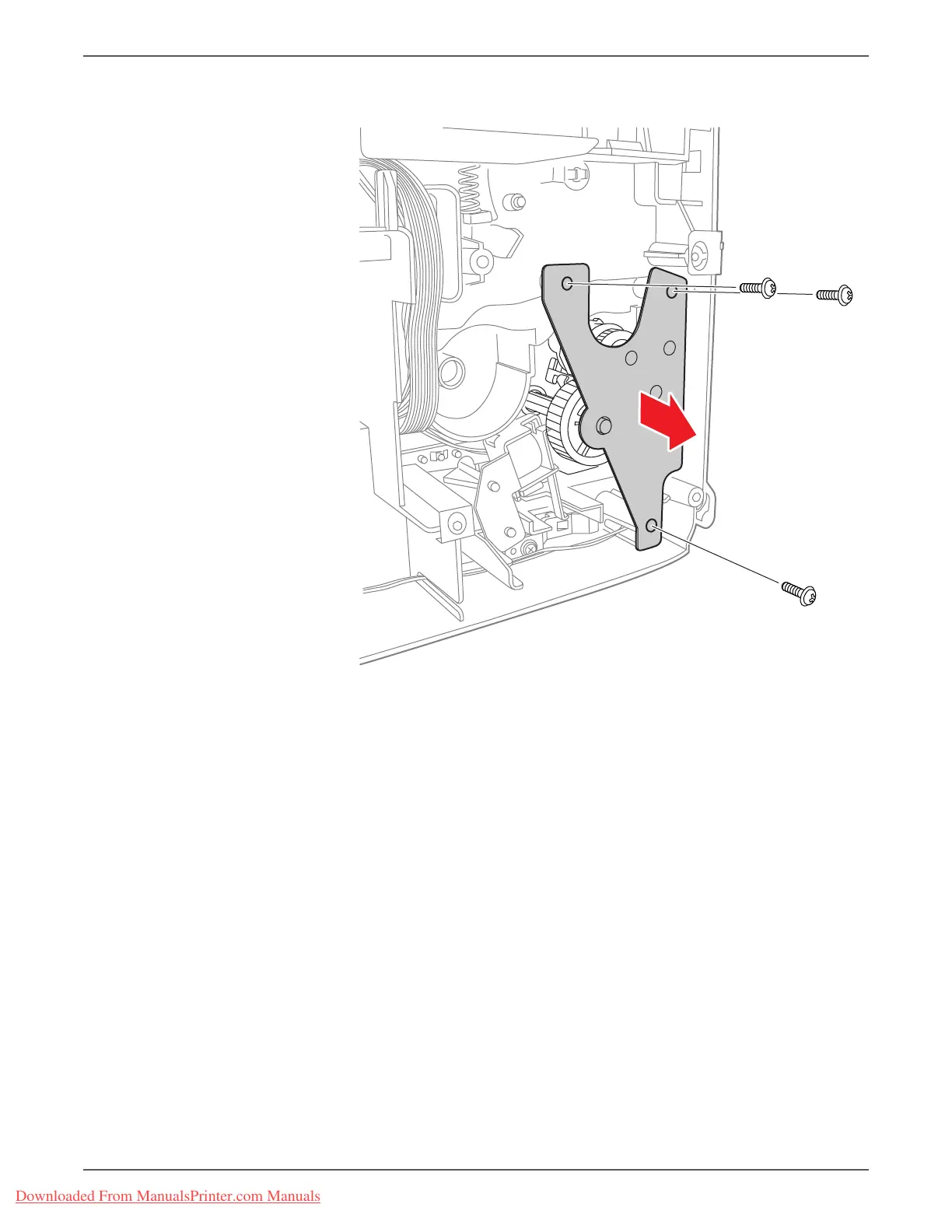

6. Remove 3 screws (10 mm, silver, tap) and remove the Feed Bracket.
s3160-028
