Xerox Phaser 3160B Service Manual

Phaser 3140/3155/3160 Printer Service Manual 8-43
Service Parts Disassembly

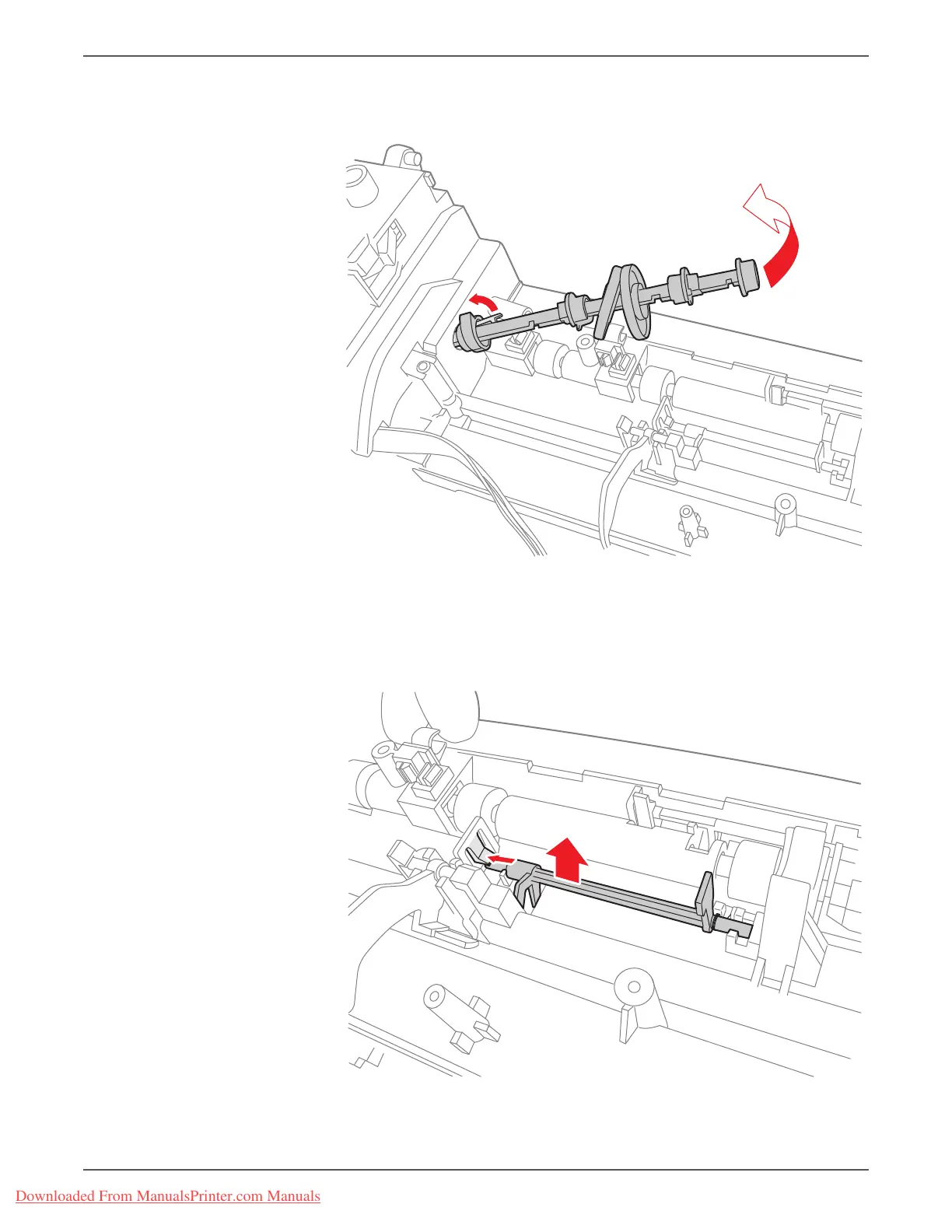

9. Lift the clip on the Pick Up Shaft and slide the Pick Up Assembly slightly to the
left, and then lift the assembly and slide it to the right to remove it.
10. Gently press the tab and remove the Feed Actuator.
Note
For reinstallation purposes, observe the position of the spring on the Feed
Actuator.
s3160-031
s3160-033
