Xerox Phaser 3160B Service Manual

8-46 Phaser 3140/3155/3160 Printer Service Manual
Service Parts Disassembly

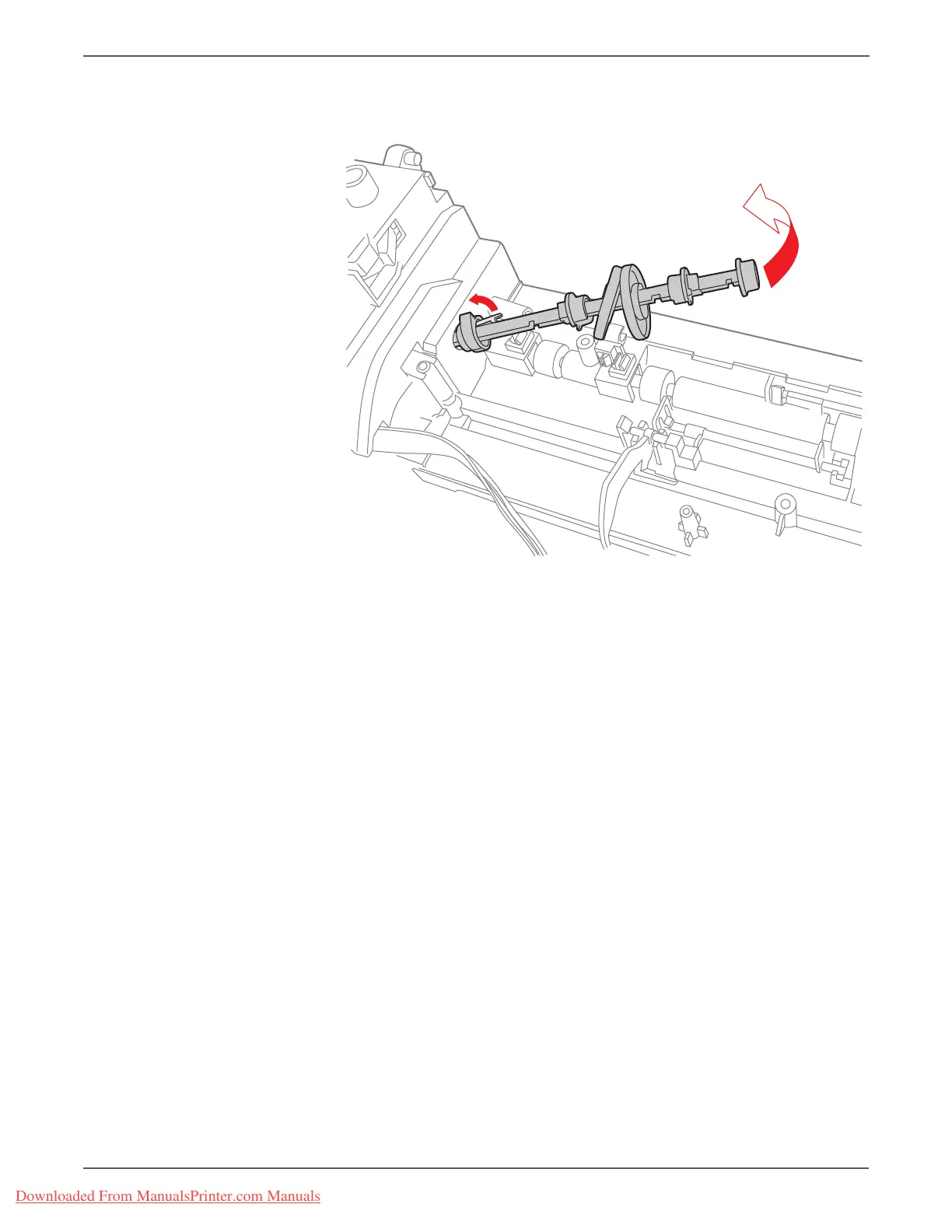

10. Lift the clip on the Pick Up Shaft and slide the Pick Up Assembly slightly to the
left, and then lift the assembly and slide it to the right to remove it.
s3160-031
