Phaser 3140/3155/3160 Printer Service Manual 8-57
Service Parts Disassembly
8. Gently turn the Engine Shield Assembly over and disconnect all cables on the
boards to remove the assembly.

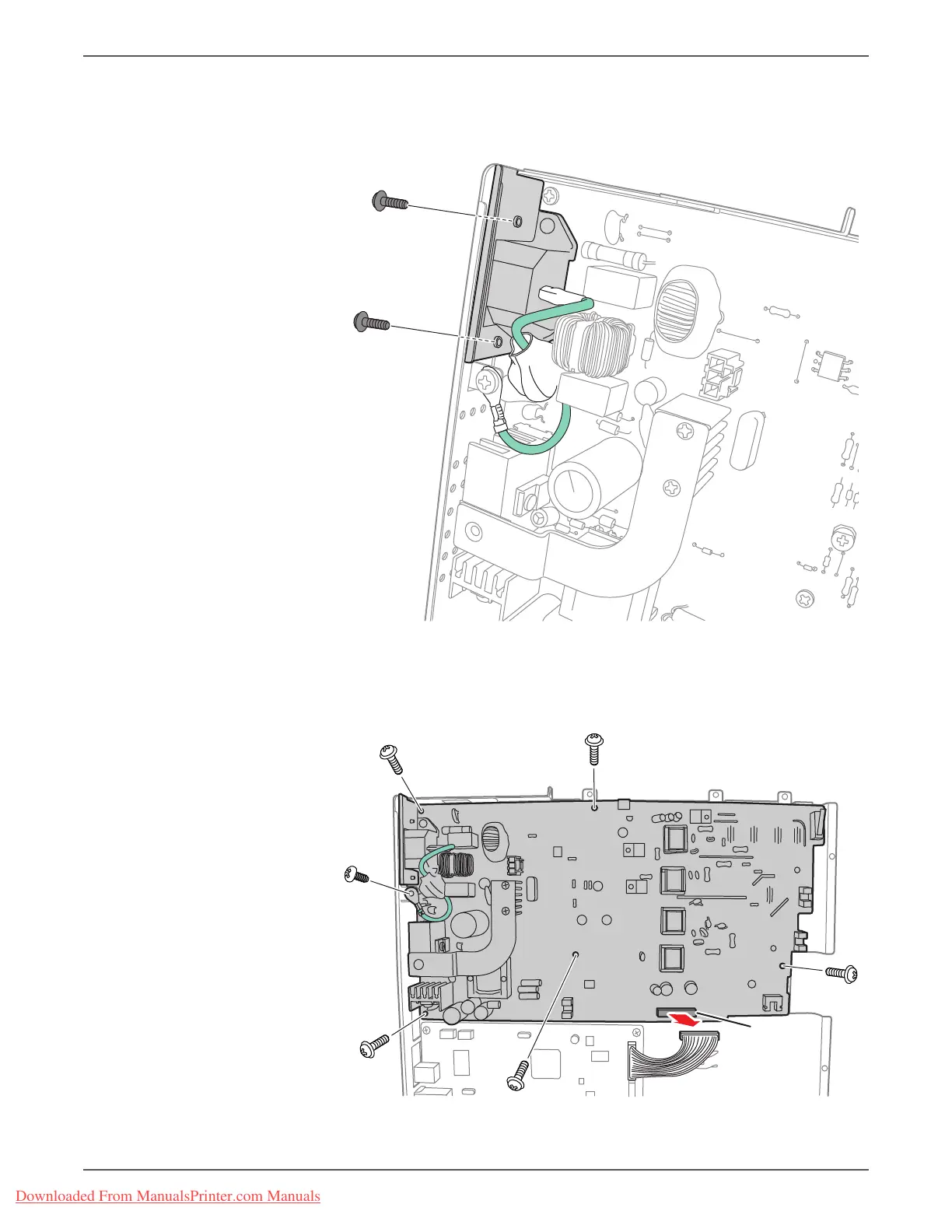

9. Remove 2 screws (black, 8 mm, tap) from the power supply connector.
10. Disconnect CON2 on the Power Supply Board.
11. Remove 5 screws (silver, 6mm).
Remove the ground wire screw (silver, 6mm). Note that the ground wire screw
is slightly larger in diameter than the other screws.
12. Remove the Power Supply Board.
