Xerox Phaser 6600 Service Manual

Wiring
Phaser 6600 and WorkCentre 6605 Xerox Internal Use Only
Service Manual
7-22

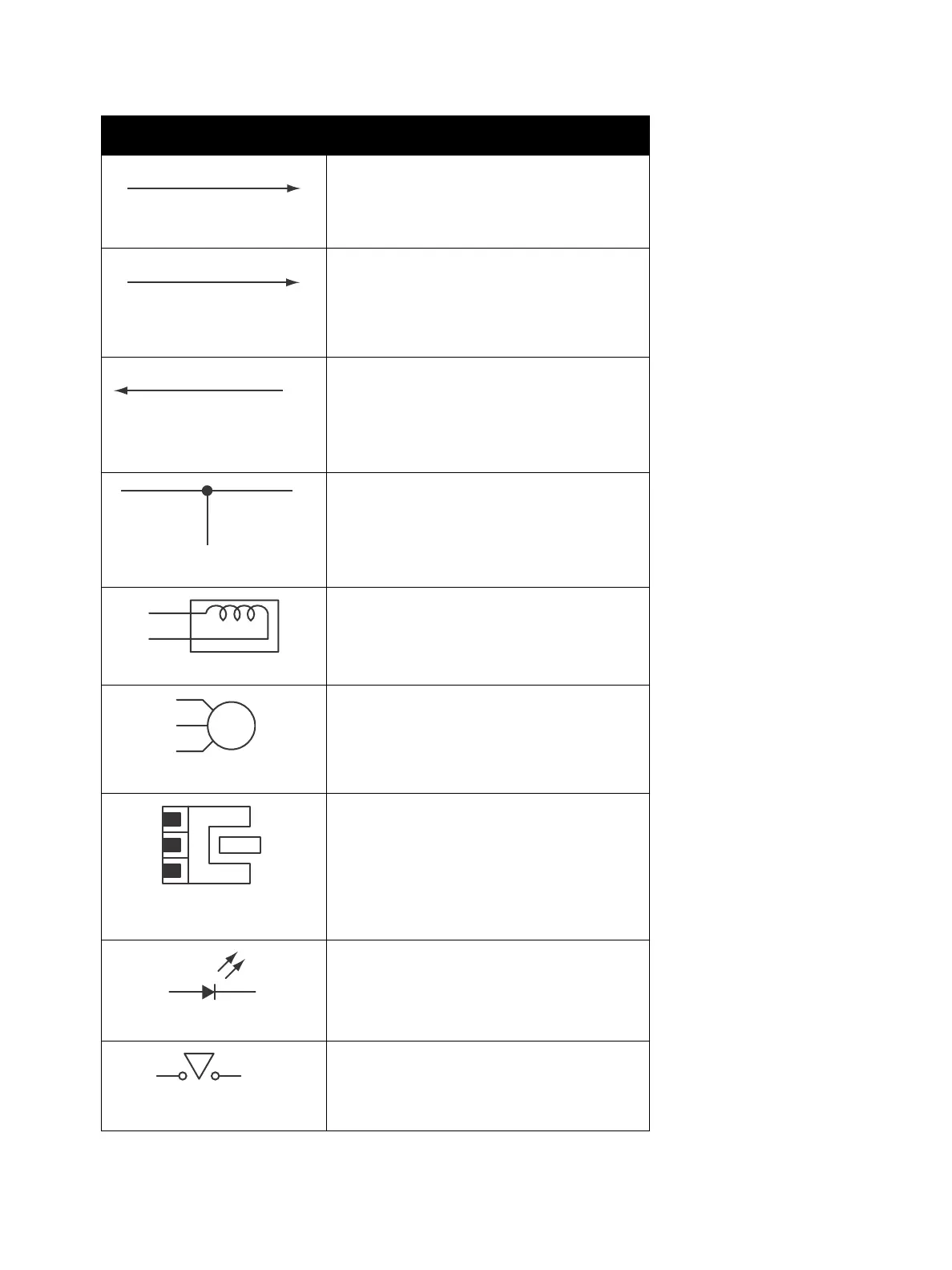

Denotes a connection between parts with
harness or wires, attached with signal
name/contents.
Denotes function, and logic value of the
signal to operate the function (Low: L, High:
H). The given voltage is for signal in high
status. The arrow indicates the direction of
signal.
Denotes function, and logic value of the
signal when the function operated (Low: L,
High: H).
The given voltage is for signal in high status.
The arrow indicates the direction of signal.
Denotes a connection between wires.
Denotes a Clutch or Solenoid.
Denotes a Motor.
Denotes a Photo Sensor.
Denotes an LED.
Denotes a Safety Interlock Switch.
Symbol Description
DEVE_A
Connection Wire
CLUTCH ON(L)+24V
Function Logic 1
EXIT SENSED(L)+3.3VDC
Function Logic 2
Connection of Wires
Solenoid/Clutch
M
Motor
Optic Sensor
LED
Safety Interlock Switch

Xerox Phaser 6600 Specifications

General

Color	Yes
Duplex printing	No
Print technology	Laser
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	9 s
Time to first page (color, normal)	10 s
Print speed (black, normal quality, A4/US Letter)	36 ppm
Maximum duty cycle	80000 pages per month
Number of print cartridges	-
Internal memory	256 MB
Processor frequency	533 MHz
Maximum internal memory	768 MB
Sound pressure level (printing)	53 dB
Total input capacity	700 sheets
Total output capacity	250 sheets
Paper tray media types	Card stock, Envelopes, Glossy paper, Labels
ISO A-series sizes (A0...A9)	A4
Standard interfaces	USB 2.0
USB 2.0 ports quantity	1
AC input frequency	50 - 60 Hz
Power consumption (standby)	65 W
Power consumption (printing)	535 W
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Weight	25500 g
Dimensions (WxDxH)	429.26 x 487.68 x 383.54 mm
