Xerox Phaser 6600 Service Manual

Wiring
Xerox Internal Use Only Phaser 6600 and WorkCentre 6605
Service Manual
7-23
Denotes an On-Off Switch (single-pole, single-
throw switch).
Denotes an On-Off Switch (Temperature -
normally close).
Denotes an NPN Photo-transistor.
I/L +24 VDC Denotes DC voltage when the Interlock
Switch in MCU Board turns On.
+5 VDC
+3.3 VDC
Denotes DC voltage.
SG Denotes signal ground.
AG Denotes analog ground.
RTN Denotes return.

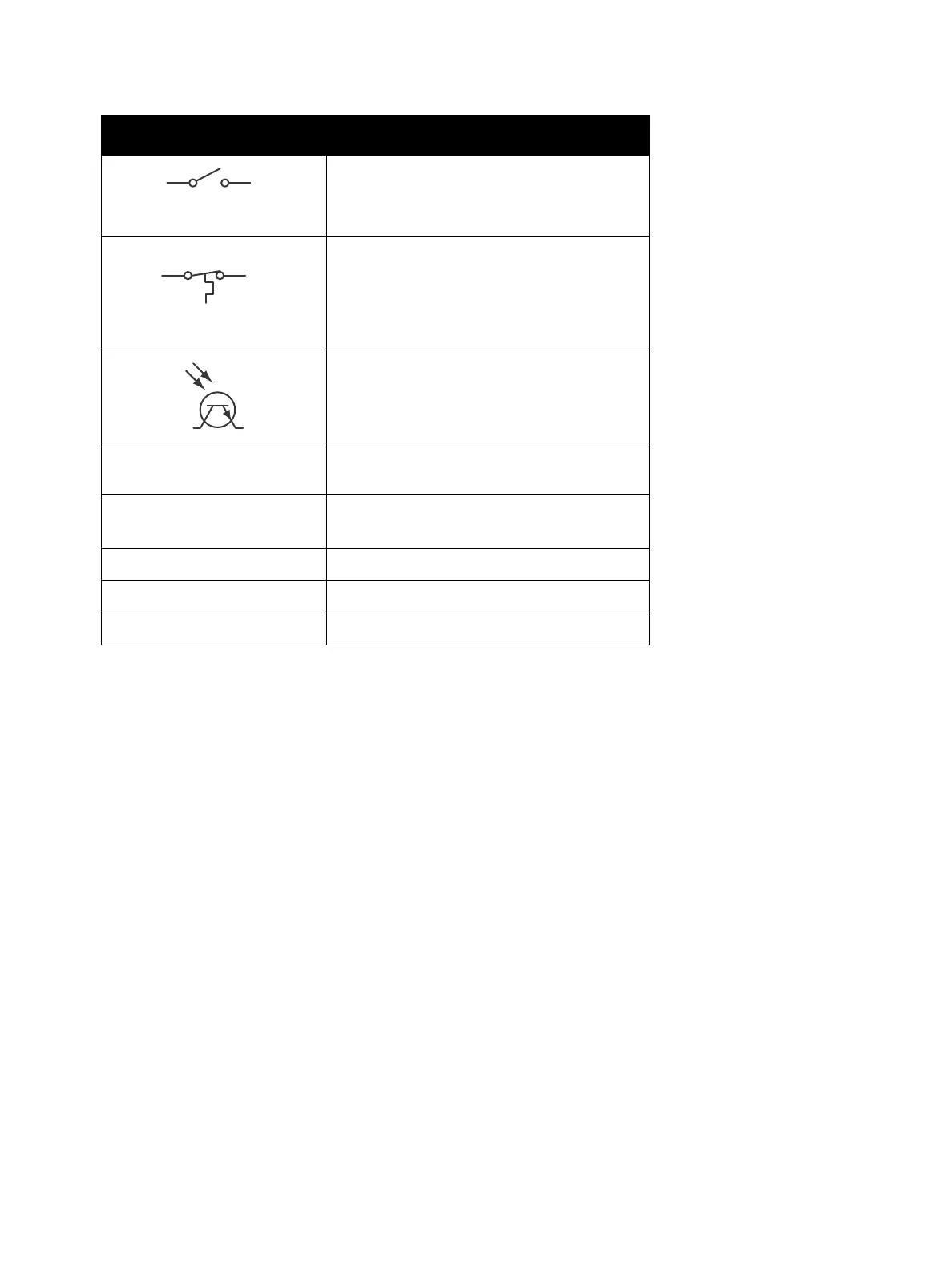

Symbol Description
On Off Switch
Temperature Switch

Xerox Phaser 6600 Specifications

General

Color	Yes
Duplex printing	No
Print technology	Laser
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	9 s
Time to first page (color, normal)	10 s
Print speed (black, normal quality, A4/US Letter)	36 ppm
Maximum duty cycle	80000 pages per month
Number of print cartridges	-
Internal memory	256 MB
Processor frequency	533 MHz
Maximum internal memory	768 MB
Sound pressure level (printing)	53 dB
Total input capacity	700 sheets
Total output capacity	250 sheets
Paper tray media types	Card stock, Envelopes, Glossy paper, Labels
ISO A-series sizes (A0...A9)	A4
Standard interfaces	USB 2.0
USB 2.0 ports quantity	1
AC input frequency	50 - 60 Hz
Power consumption (standby)	65 W
Power consumption (printing)	535 W
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Weight	25500 g
Dimensions (WxDxH)	429.26 x 487.68 x 383.54 mm
