Xerox Phaser 6600 Service Manual

General Information
Phaser 6600 and WorkCentre 6605 Xerox Internal Use Only
Service Manual
1-52
Document Stopper
When a document is loaded in the DADF, the Document Stopper is locked to prevent the document
from being moved forward.
When the DADF starts feeding, the front portion of the Pickup Assembly is lowered. This unlocks the
Document Stopper that blocks the document, and the Document Stopper is pressed by the lead edge
of the document in the feed direction and the document is fed.
When the paper feed is completed, the Pickup Assembly returns to its original position.

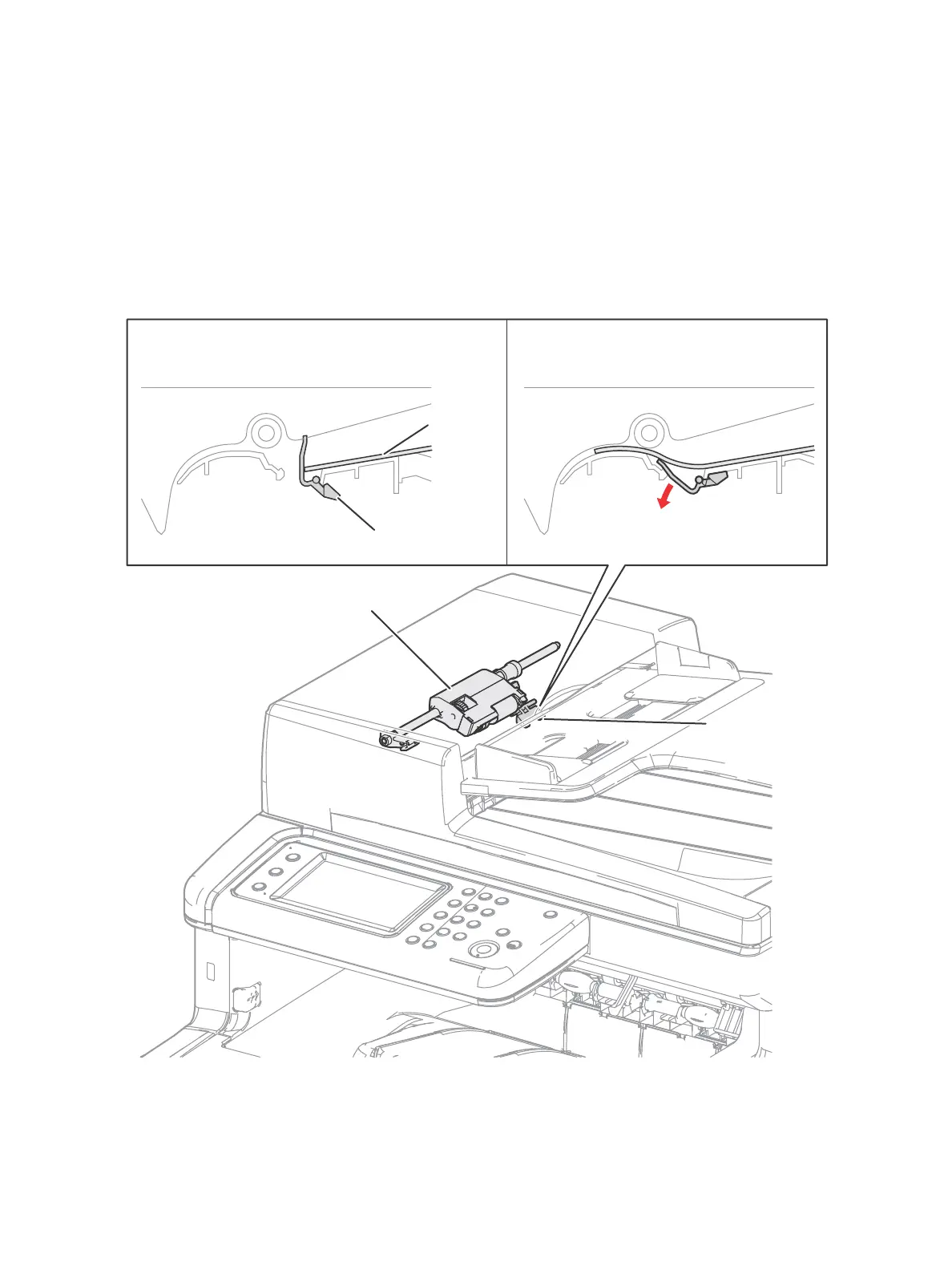

s6600-282
Document
[When a document is loaded]
[When a document is fed]
Pickup Assembly
Document Stopper
Document Stopper
