Xerox Phaser 6600 Service Manual

General Information
Xerox Internal Use Only Phaser 6600 and WorkCentre 6605
Service Manual
1-53

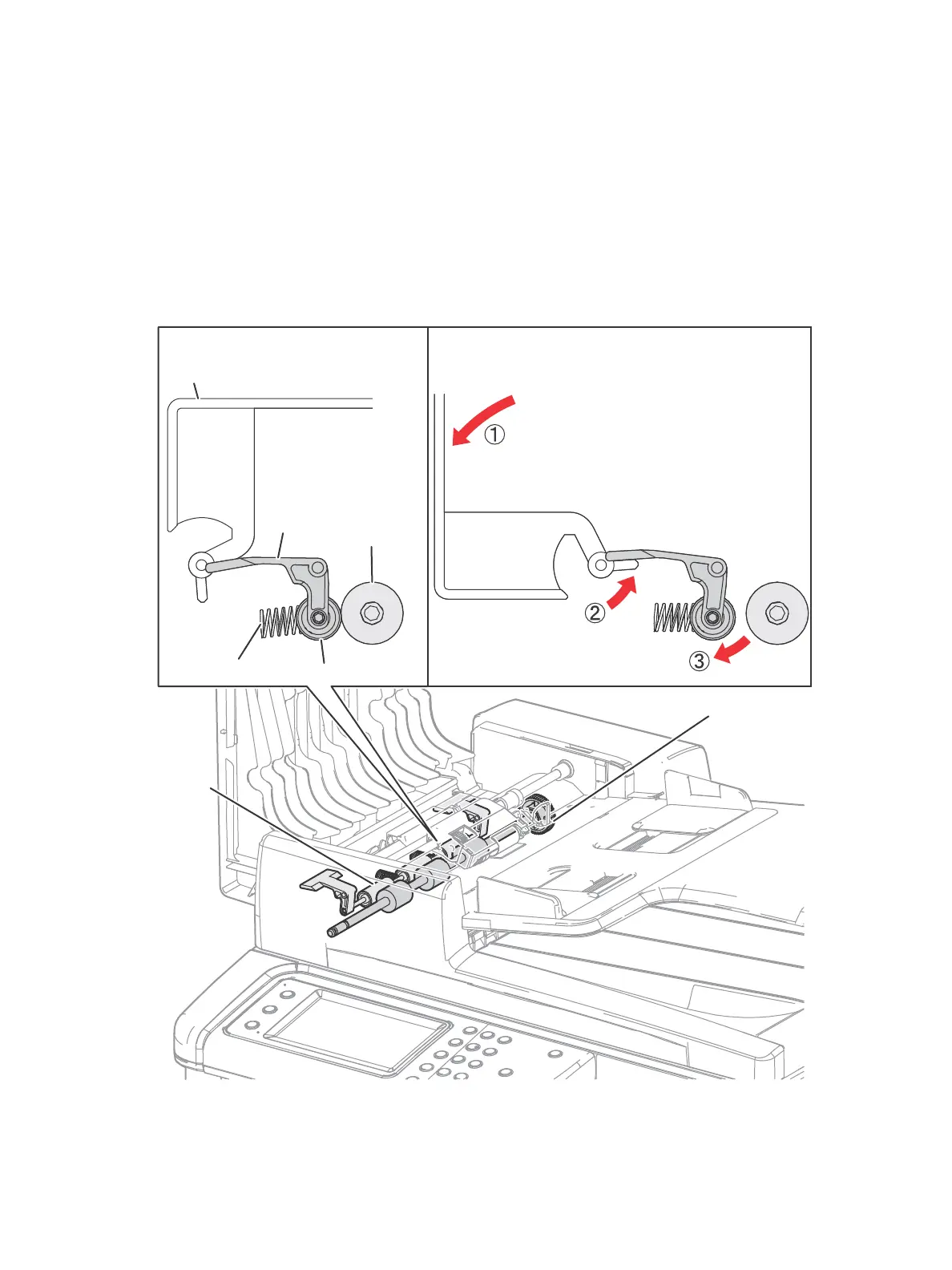

Pinch Roller Assembly
The Pinch Roller Assembly is normally pressed against the direction of the Takeaway Roller by the
spring pressure. Documents are fed through between the Pinch Rollers and the Takeaway Roller to the
CVT Window by the rotation of the Takeaway Roller.
If a jam occurs between the Pinch Roller Assembly and the Takeaway Roller, it is hard to retrieve
documents due to the high spring pressure of Pinch Roller Assembly. In order to retrieve jammed
documents, open the DADF Cover Assembly to release the spring pressure, and make enough clearance
between the Pinch Rollers and the Takeaway Roller.
s6600-283
Pinch Roller
Assembly
Takeaway Roller
ADF Top Cover openADF Top Cover closed
Takeaway Roller
Link
Spring
ADF Top Cover
Pinch Roller

Xerox Phaser 6600 Specifications

General

Color	Yes
Duplex printing	No
Print technology	Laser
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	9 s
Time to first page (color, normal)	10 s
Print speed (black, normal quality, A4/US Letter)	36 ppm
Maximum duty cycle	80000 pages per month
Number of print cartridges	-
Internal memory	256 MB
Processor frequency	533 MHz
Maximum internal memory	768 MB
Sound pressure level (printing)	53 dB
Total input capacity	700 sheets
Total output capacity	250 sheets
Paper tray media types	Card stock, Envelopes, Glossy paper, Labels
ISO A-series sizes (A0...A9)	A4
Standard interfaces	USB 2.0
USB 2.0 ports quantity	1
AC input frequency	50 - 60 Hz
Power consumption (standby)	65 W
Power consumption (printing)	535 W
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Weight	25500 g
Dimensions (WxDxH)	429.26 x 487.68 x 383.54 mm
