Lower unit

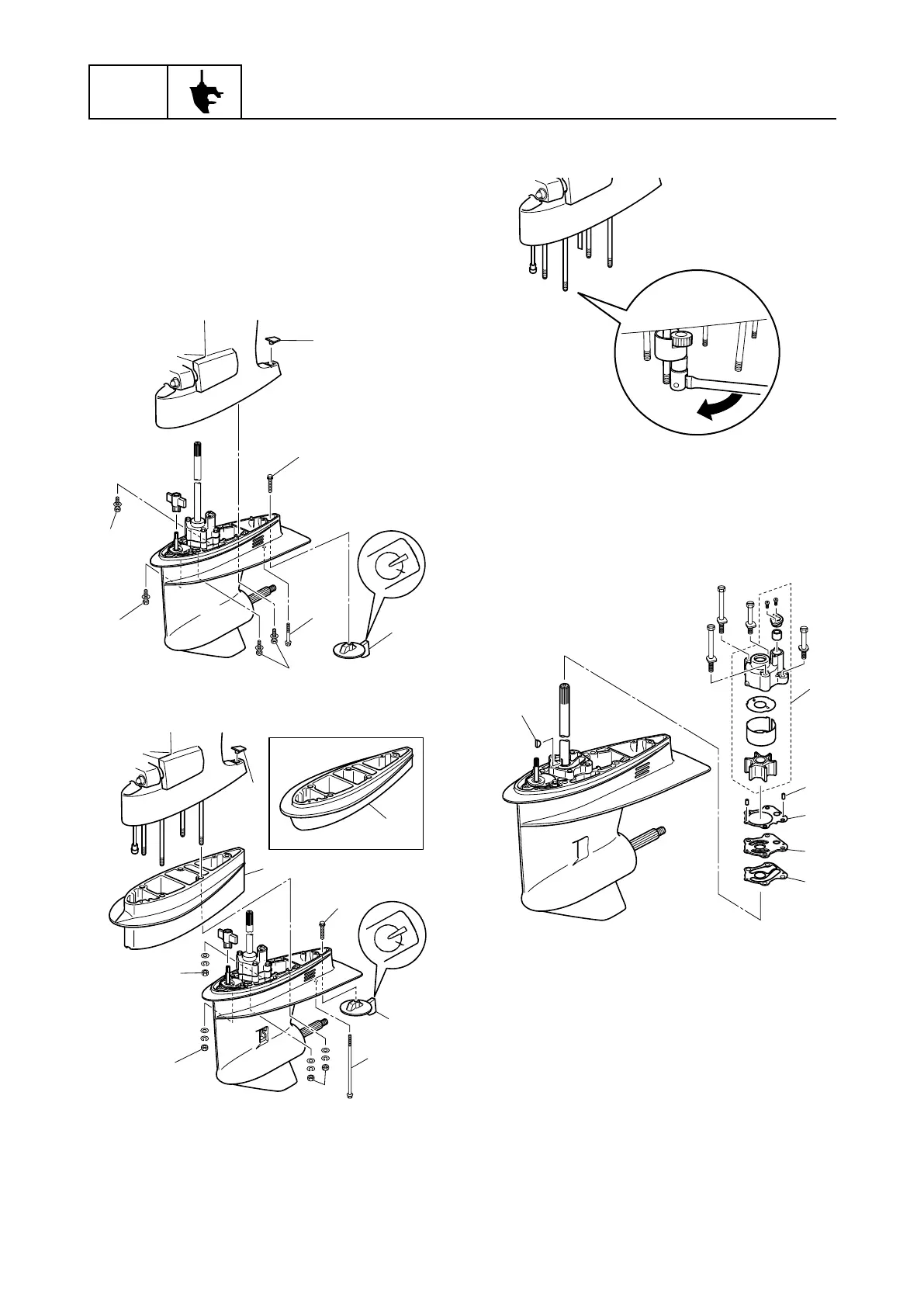

8. Mark the trim tab at the area shown.
9. Remove the cover 3, then remove the
trim tab bolt 4 and trim tab 5.
10. Loosen the bolts(nuts) 6, and then
remove the lower unit (X, Y-transom: and
extension 7) from the upper case.
å L-transom
∫ X-transom
ç Y-transom
68860455
4
3
å
6
6
6
5
6
68860465
3
7
7
6
6
6
5
6
∫
ç
4
11. Remove the stud bots. (X, Y-transom)
Removing the water pump
1. Remove the water pump assembly 1
and gasket 2.
2. Remove the Woodruff key 3 from the
drive shaft, then remove the outer plate
cartridge 4 and gasket 5.
3. Remove the dowels 6.
68860456
68860415
1
3
6
2
4
5
