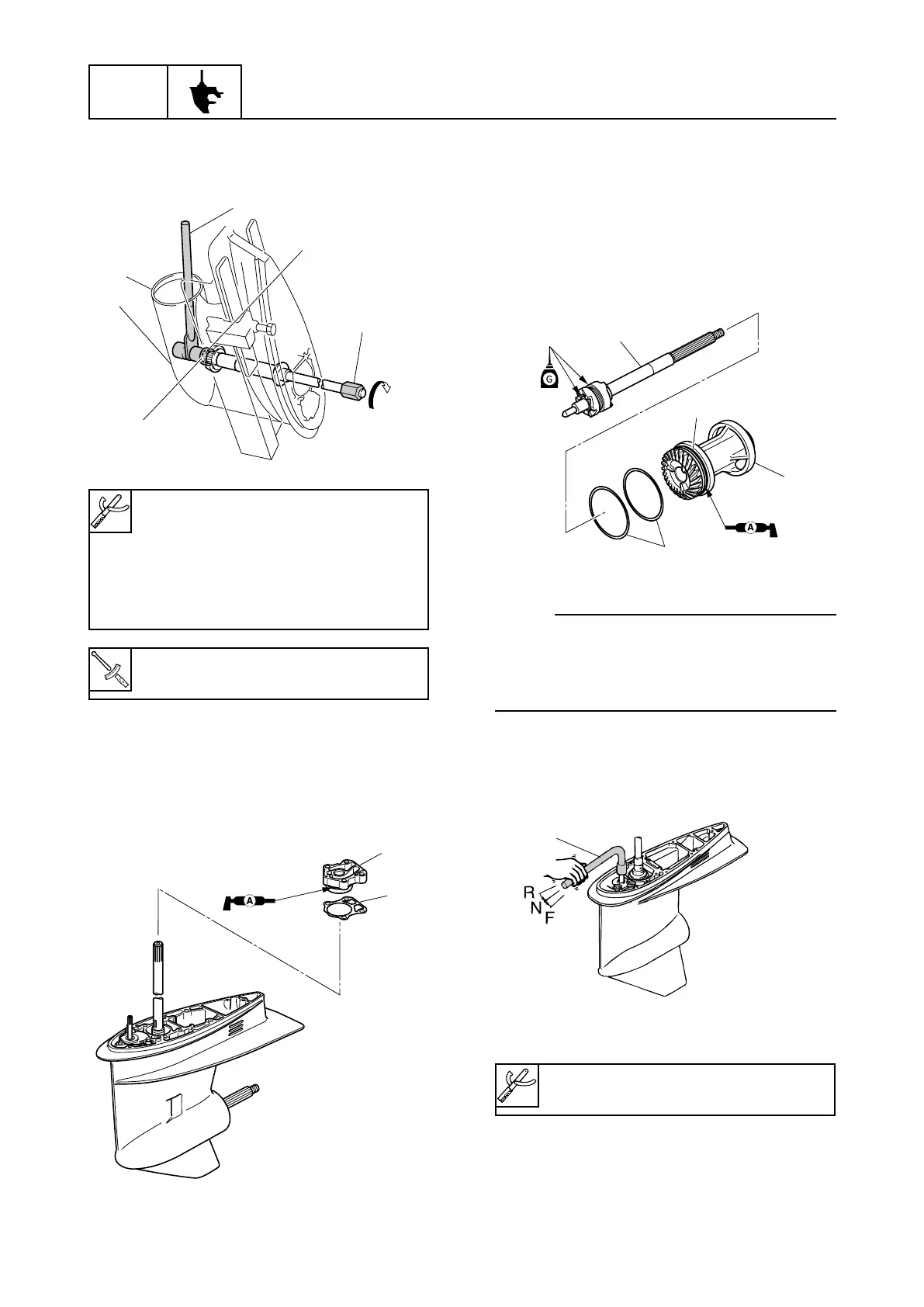

Yamaha 55DEHD - Installing the Oil Seal Housing; Installing the Propeller Shaft Housing

6-19
LOWR
6885J11
Lower unitLower unit
2. Tighten the pinion nut 4 to the specified
torque.
Installing the oil seal housing
1. Install the new gasket 1 and oil seal
housing 2.
7
6
4
5
68860330
Drive shaft holder 5 5:
90890-06519
Pinion nut holder 6:
90890-06715
Socket adapter 2 7:
90890-06507
Pinion nut 4:
95 N·m (9.5 kgf·m, 70.1 ft·lb)
68860340
2
1
Installing the propeller shaft hous-
ing
1. Install a new O-ring 1.
2. Install the propeller shaft assembly 2
and shim(s) 3 into the propeller shaft
housing assembly 4.
NOTE:
9 Be sure to select the reverse gear shim(s) if
the lowercase, propeller shaft housing or
ball bearing is replaced.
9To select the shim(s), refer to page 6-26.
3. Set the gear shift to “N” position.
68860350
2
4
1
3
68860355
5
Shift rod push arm 5:
90890-06052
