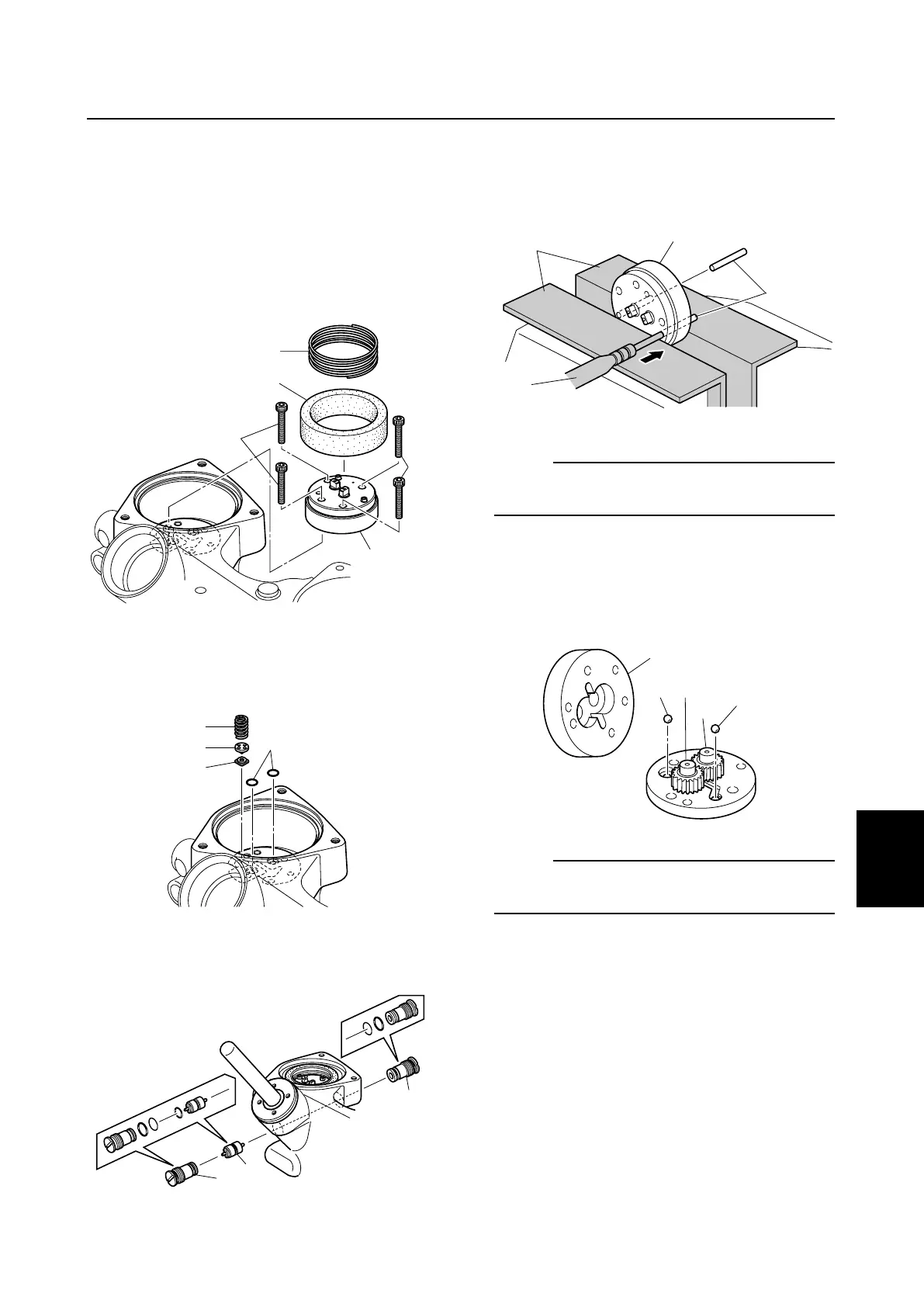

Gear pump
Disassembling the gear pump, down
relief valve and main valve
1. Drain the PTT fluid.
2. Remove the spring 1 and filter 2.
3. Remove the bolts 3, and then remove
the gear pump assembly 4.
4. Remove the O-rings 5, down-relief
spring 6, valve support pin 7 and main
valve seal 8.
5. Remove the main valves 9 and shuttle
piston 0.
6. Hold the gear pump assembly 4 in a vice
using aluminum plates a on both sides,
and then remove the pins q.
NOTE:
Use a 4 mm pin punch w to remove the pins
q.
7. Separate the gear housing 2 e as
shown, then remove the balls r, drive t
and driven gear y.
NOTE:
Turn the gear pump assembly upside down,
and then separate the gear housing 2 e.
1
2
3
3
4
68870780
6
5
7
8
68870790
9
0
9
68870800
a
w
q
4
68870810
e
r
r
t
y
68870820
