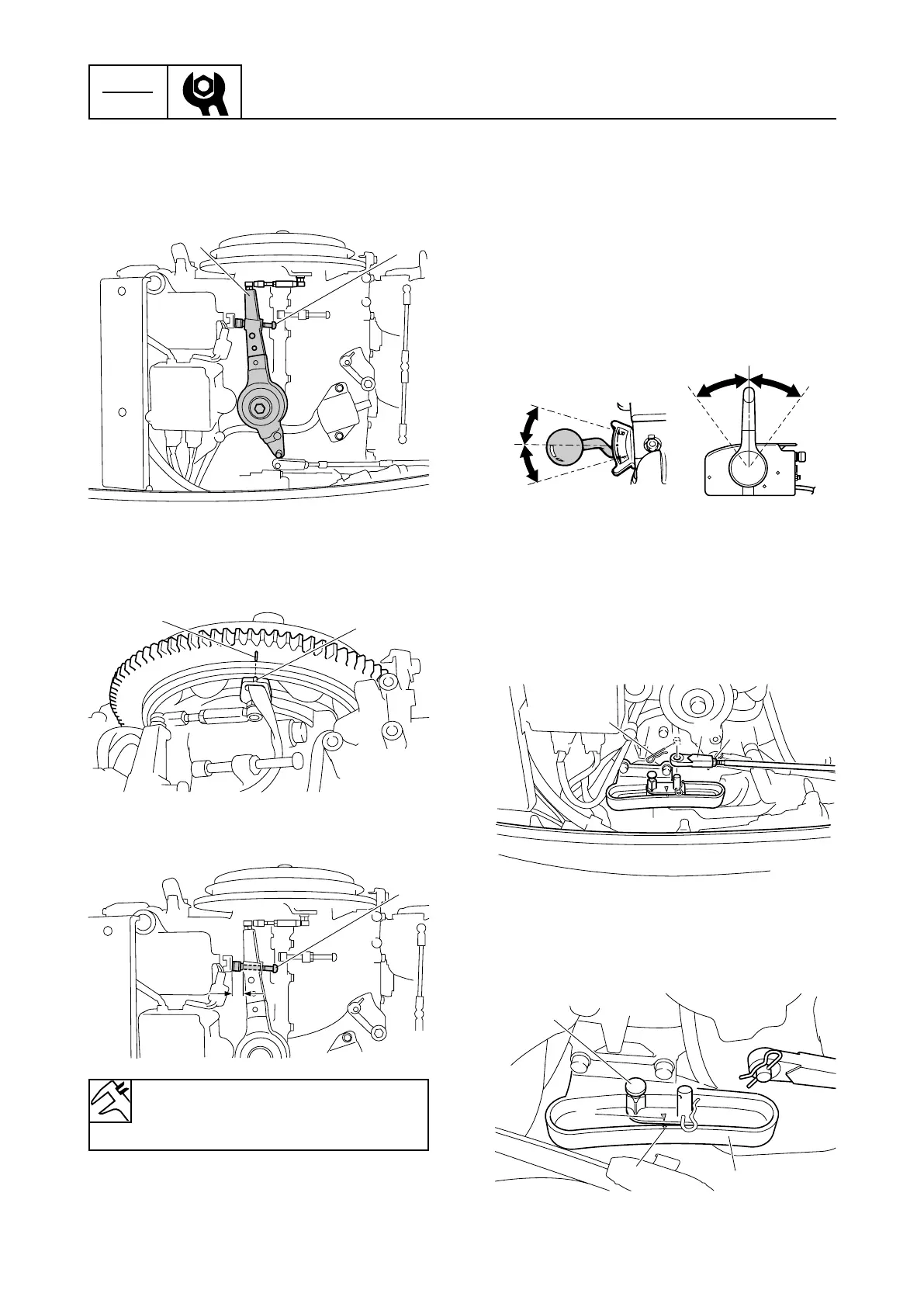

Periodic check and adjustment
8. Set the control lever 2 2 to the full retard
position, and then check that the adjust-
ing screw 6 comes in contact with the
crankcase.
9. Check that the mark b on the flywheel
magnet is aligned with the pointer 4 on
the pulser coil assembly.
10. If it is not aligned, check the screw out
length f of the adjusting screw 6.
11. Install the throttle link rod and connect
the throttle cable.
Checking the gear shift operation
1. Check that the gear shift operates
smoothly when shifting from “N” to “F” or
“R”. Adjust the shift cable if necessary by
turning the cable joint.
2. Set the gear shift to “N” position.
3. Loosen the locknut 1, remove the pin 2
and then disconnect the shift cable joint
3.
4. Make sure to align the mark a on the
bracket 4 with mark b on the shift lever
5.
68830280
6
2
68830290
4
b
68830300
6
f
Specified length f (full retard,
reference data):
12.5–13.5 mm (0.49–0.53 in)
68830340
N
F
F
N
R
R
2
1
3
68830350
68830356
4
5
a
b
