Yamaha 55DEHD - Assembling the Carburetor

6885J11
9
8
7
6
5
4
3
2
1
4-14
Carburetor
4. Install the new gasket 9, float chamber
0, and then tighten the float chamber
screws q.
5. Install the new O-ring w, and then tight-
en the drain screw e to specified torque.
6. Install the plate 1 r, rubber seal 1 t,
plate 2 y, rubber seals 2 u, cover i,
and then tighten the cover screws o.

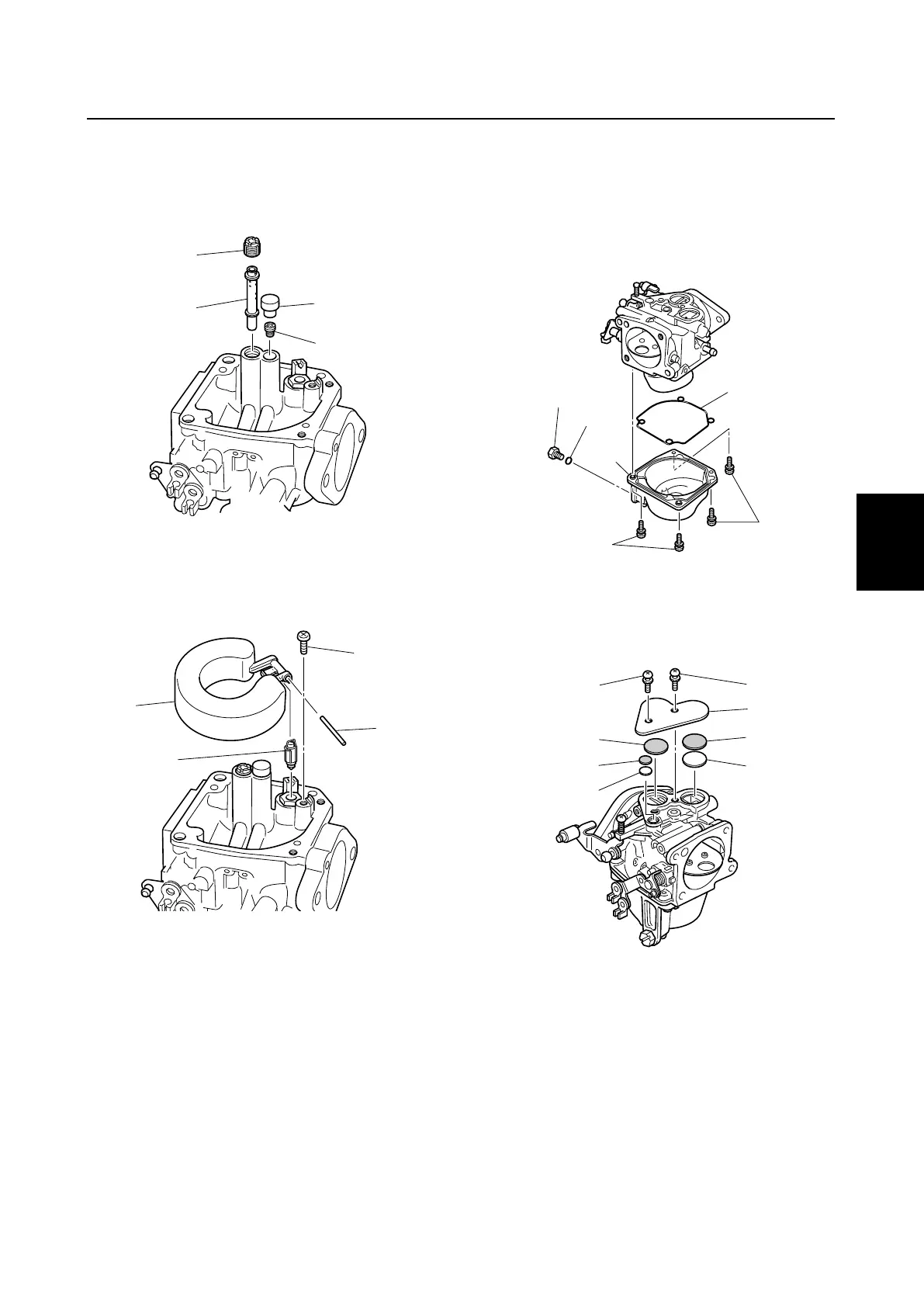

Assembling the carburetor
1. Install the main nozzle 1 and main jet 2.
2. Install the pilot jet 3 and cap 4.
3. Install the needle valve 5 to the float 6,
then install the float pin 7 into the float
6, and then tighten the float screw 8.
1
2
3
4
68840050
9
0
q
w
e
q
68840070
5
6
7
8
68840060
r
y
t
u
i
o
o
u
68840080
