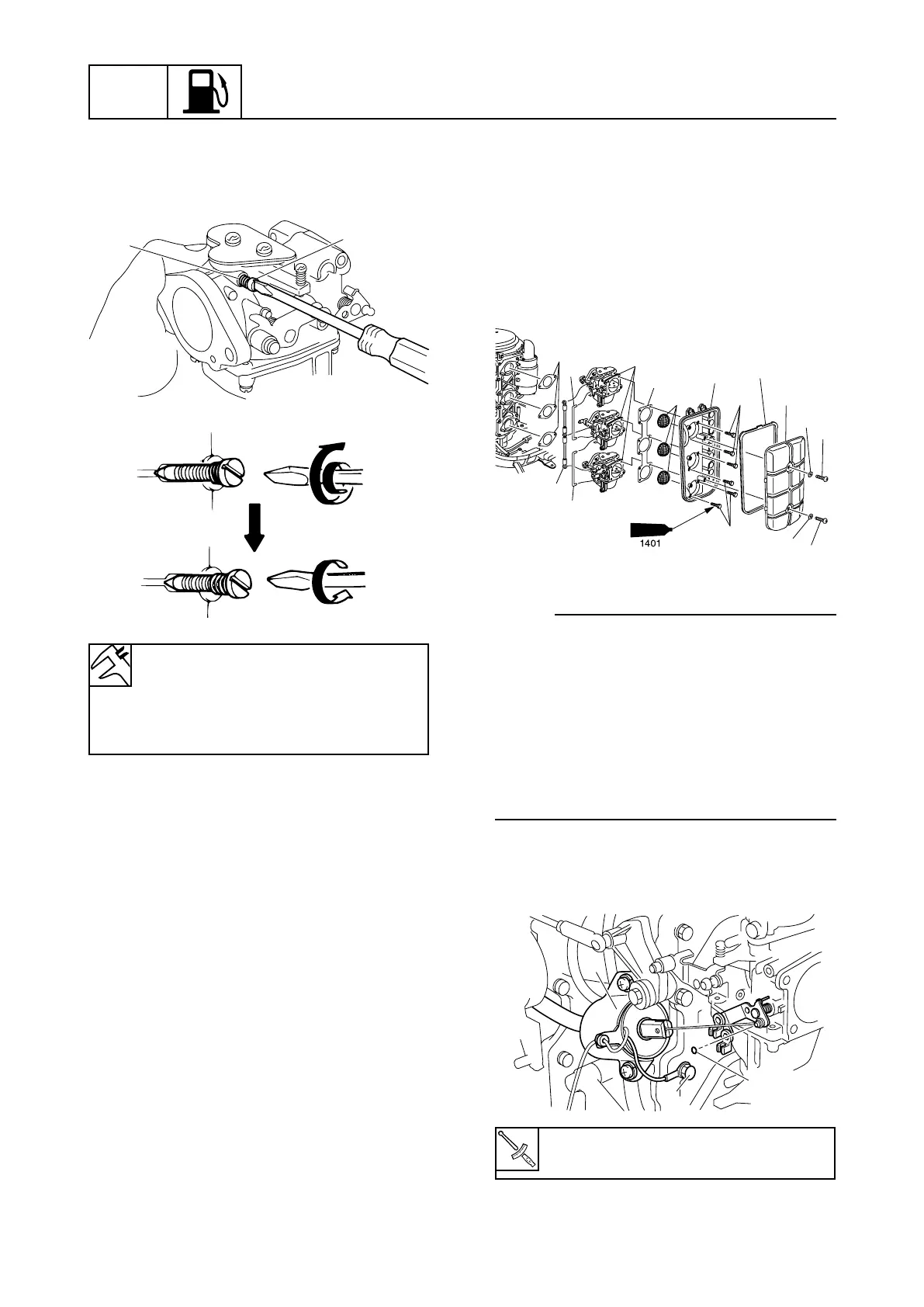

7. Install the spring p, pilot screw a, then
turn it in until it is lightly seated, and then
turn it out the specified number of turns.
8. Install the new gaskets s, carburetor
assembly d, new gasket f, carburetor
caps g, intake silencer h and bolts j.
9. Install the new gasket k, cover l, wash-
ers ; and screws z, and then install the
link rod x and rods c.
NOTE:
9 Temporarily install the carburetor caps g to
the intake silencer h, and then tighten the
bolts j.
9 Synchronizing the carburetor, adjust the
throttle cable and engine idle speed when-
ever the carburetor has been disassem-
bled.
9 For the adjustment procedures mentioned
above, refer to chapter 3.
10. Install the choke solenoid v and O-ring
b. (ED, ET)
Pilot screw setting:
55D, 75A:
1–1 1/2 turns out
85A:
7/8–1 3/8 turns out
s
d
f
g
j
h
k
l
;
z
z
x
c
c
j
;
68840100
4-15
Fuel system
Intake manifold bolt n:
12 N·m (1.2 kgf·m, 8.9 ft·lb)
