NOTE:
Remove the all spark plug caps, when mea-
suring the CDI unit peak voltage at loaded
engine cranking.
6885J11
8-6
9
8
7
6
5
4
3
2
1
Ignition and ignition control system

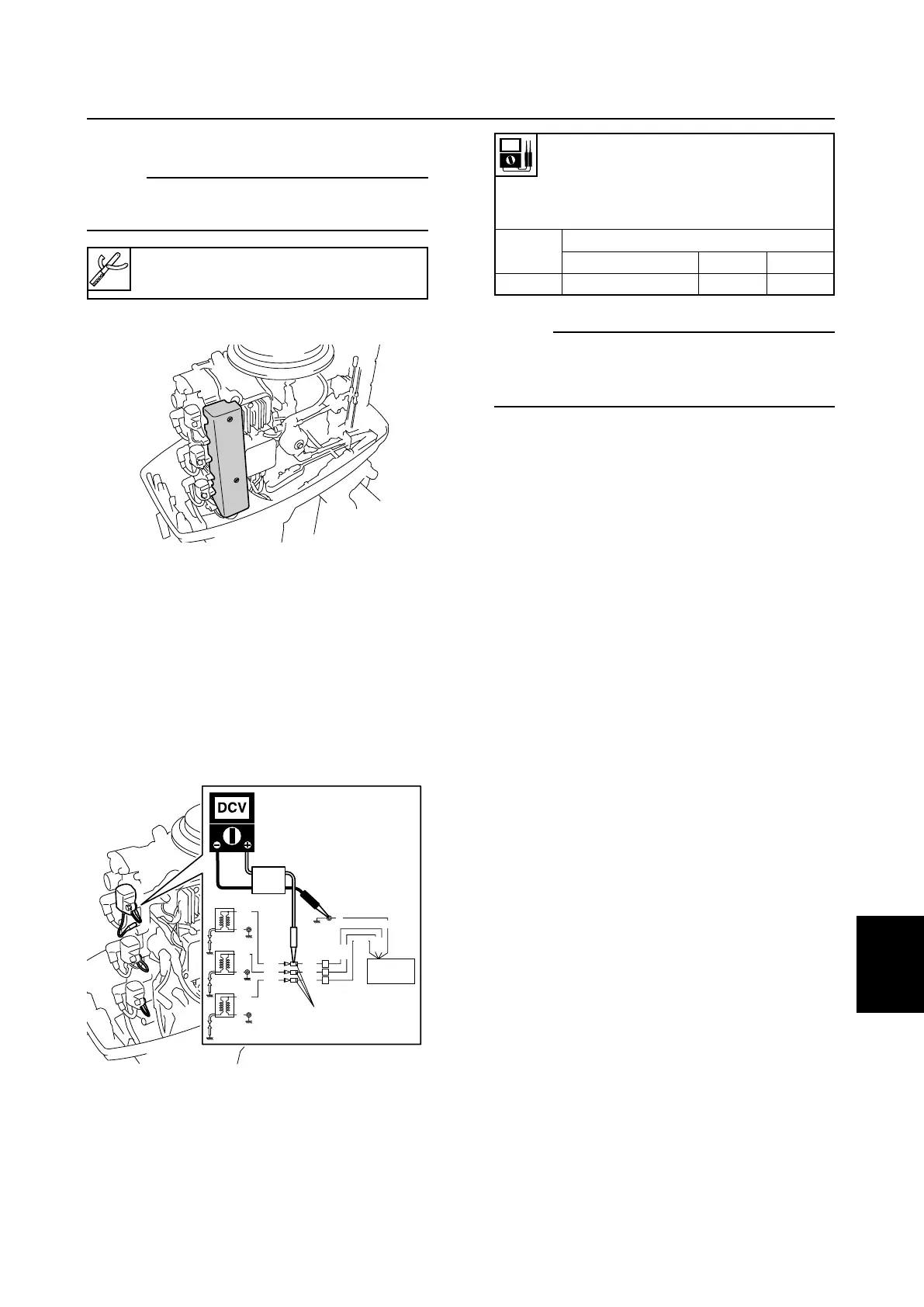

Checking the CDI unit
NOTE:
Be sure to install the test propeller before
checking the peak voltage.
1. Remove the cover.
2. Connect the digital circuit tester with
peak voltage adapter B to the ignition coil
lead and the ground.
3. Measure the CDI unit output peak volt-
age. If less than specification, measure
the charge coil output peak voltage.
Replace the CDI unit if the output peak
voltage of the charge coil is more than
specification.
Test propeller: 90890-01620
1
2
3
B
B
B/W
B/W
B
B
B
B/W
B/W
B/W
B/W
B/W
B/W
B/W
B/W
B/W
B/W
B/W
B/W
B/W
68880010
68880080
CDI unit output peak voltage:
z Black/white (B/W)–Ground (B)
x Black/white (B/W)–Ground (B)
c Black/white (B/W)–Ground (B)
r/min
Loaded
Cranking 1,500 3,500
DC V 130 150 150
6885J11_08 07.10.1 9:02 Page 7
