PTT motor

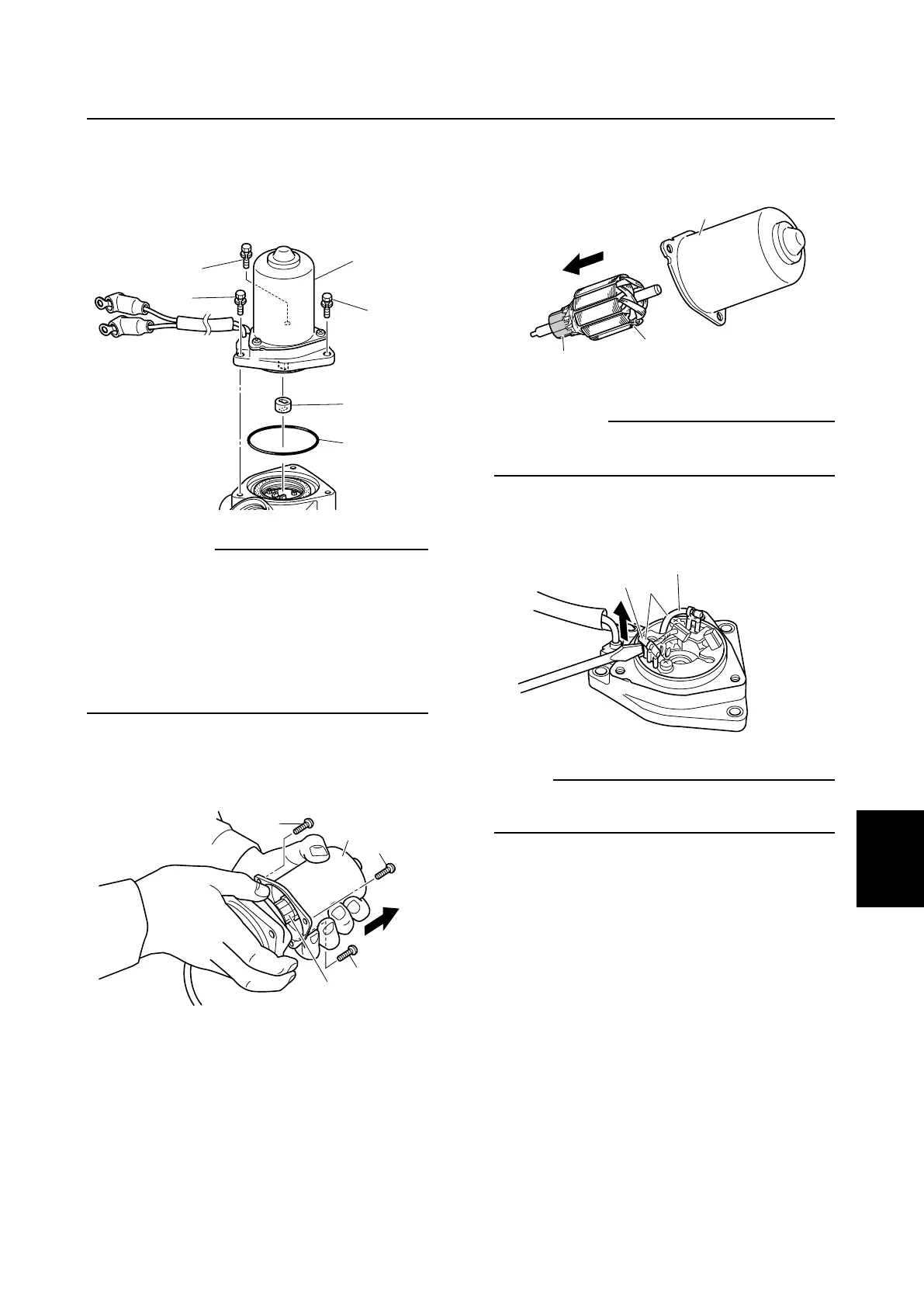

Disassembling the PTT motor
1. Remove the bolts 1, then remove the
PTT motor 2, O-ring 3, and joint 4
from the PTT unit.
w
9 Make sure that the trim and tilt rams are
fully extended when removing the PTT
motor, otherwise fluid can spurt out
from the unit due to internal pressure.
9 Do not push the trim and tilt rams down
while the PTT motor is removed from the
PTT unit, otherwise fluid can spurt out.
2. Remove the screws 5, stator 6 with
armature 7.
3. Remove the armature 7 from the stator
6.
cC
Do not allow grease or oil to contact the
commutator 8.
4. Disconnect the PTT motor lead 9.
NOTE:
Hold the brush with a screwdriver as shown,
and then disconnect the PTT motor lead 9.
