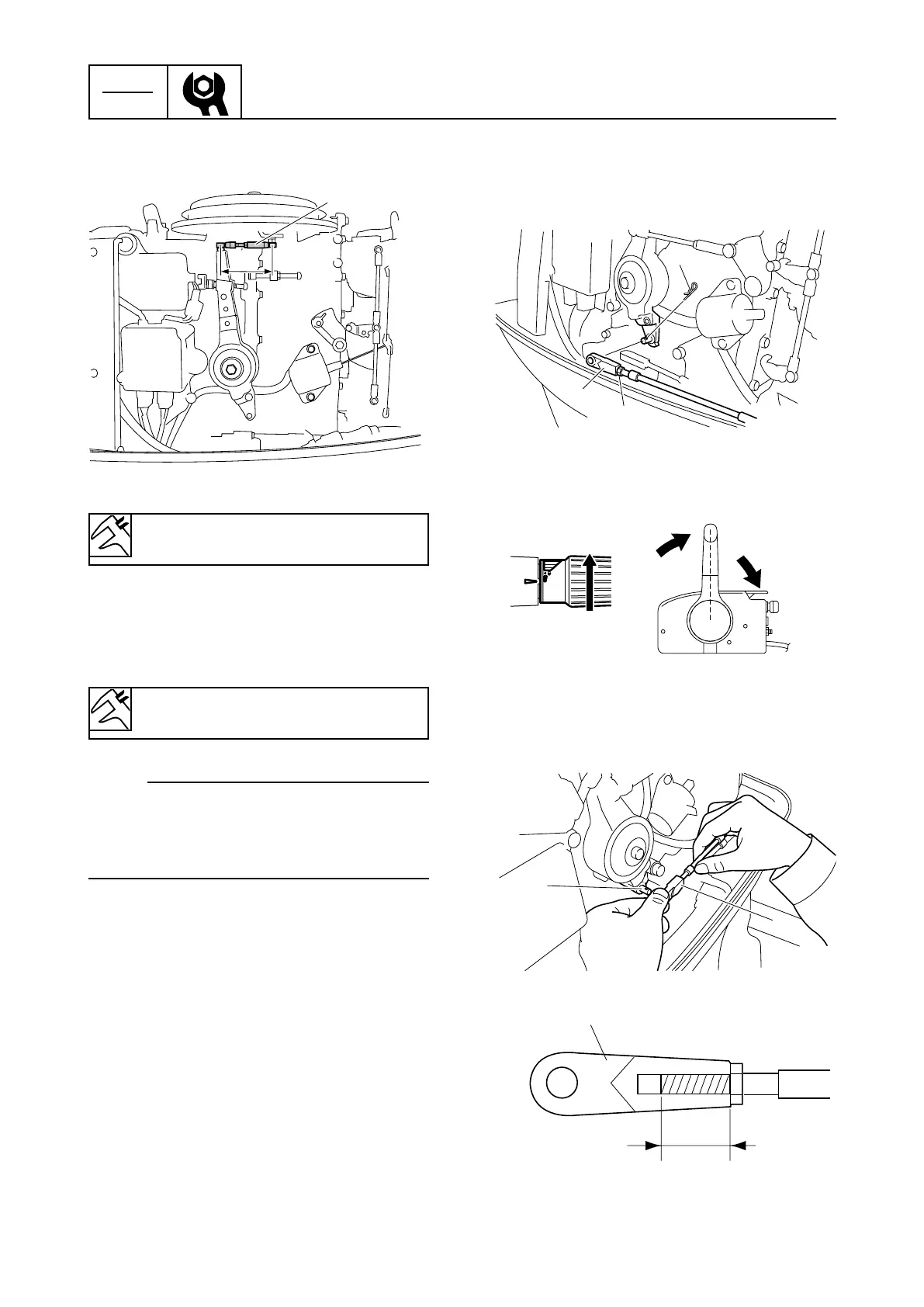

Periodic check and adjustment
3. Remove the control link rod 2, and then
measure the length a of the link.
4. Adjust the length a if out of specification.
5. Install the control link rod 2.
6. Check that the ignition timing to the spec-
ified position at full retard.
NOTE:
9 To check the ignition timing, refer to page
3-9.
9 To check the timing stopper, refer to page
3-11.
7. Install the throttle link rod and the throttle
cable.
Adjusting the throttle cable
1. Loosen the locknut 1, remove the pin 2
and then disconnect the throttle cable
joint 3.
2. Set the throttle grip or remote control
lever to the fully closed position.
3. Adjust the position of the throttle cable
joint 3 until its hole aligned with the set
pin 4 on control lever.
68830160
2
3
1
68830550
N
68830030
2
a
Length a (reference data):
71 mm (2.79 in)
Specified position (full retard):
BTDC 2°
68830170
3
4
3
61U30320
a
