6885J11
6-10
9
8
7
6
5
4
3
2
1
Propeller shaft housing
Checking the propeller shaft hous-
ing
1. Check the propeller shaft housing.
Replace the propeller shaft housing if
cracked or corroded.
Checking the reverse gear
1. Check the teeth and dogs of the reverse
gear. Replace the reverse gear if cracked
or worn.
Checking the propeller shaft
1. Check the propeller shaft spline. Replace
the propeller shaft if worn.

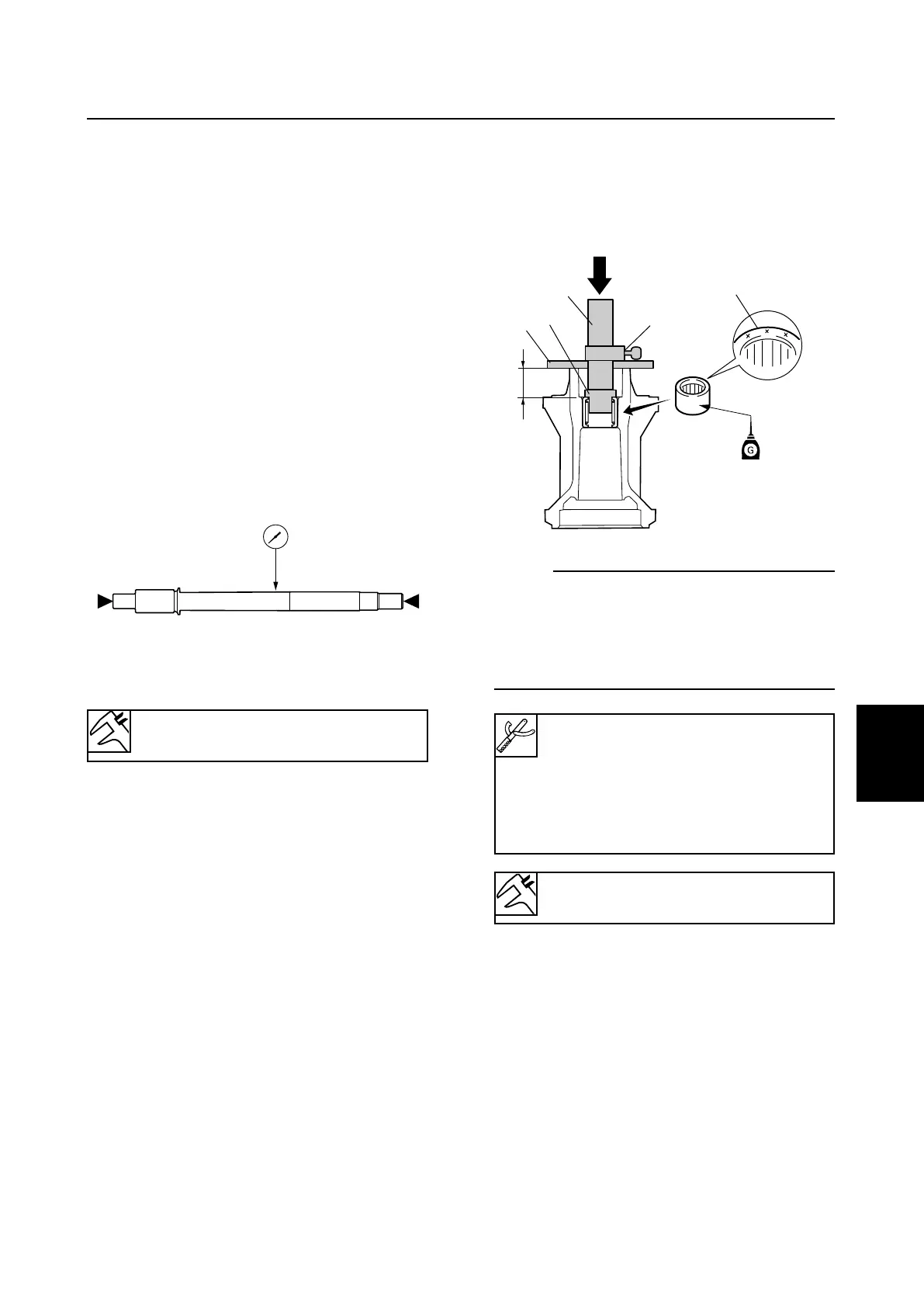

2. Measure the propeller shaft runout.
Runout limit: 0.02 mm (0.0008 in)
6F660130
Assembling the propeller shaft
housing
1. Install a new needle bearing into the pro-
peller shaft housing to the specified
depth.
NOTE:
9 Install a new needle bearing with the identi-
fication mark a facing toward the propeller
side.
9 Be careful not to let the stopper c get out of
position when using the driver rod SS 1 .
Driver rod SS 1:
90890-06604
Needle bearing attachment 2:
90890-06612
Bearing depth plate 3 :
90890-06603
Installation depth b :
25.0–25.5 mm (0.98–1.00 in)
68860120
b
2
1
a
3
c
6885J11_06 07.10.10 10:58 Page 11
