Fuel system

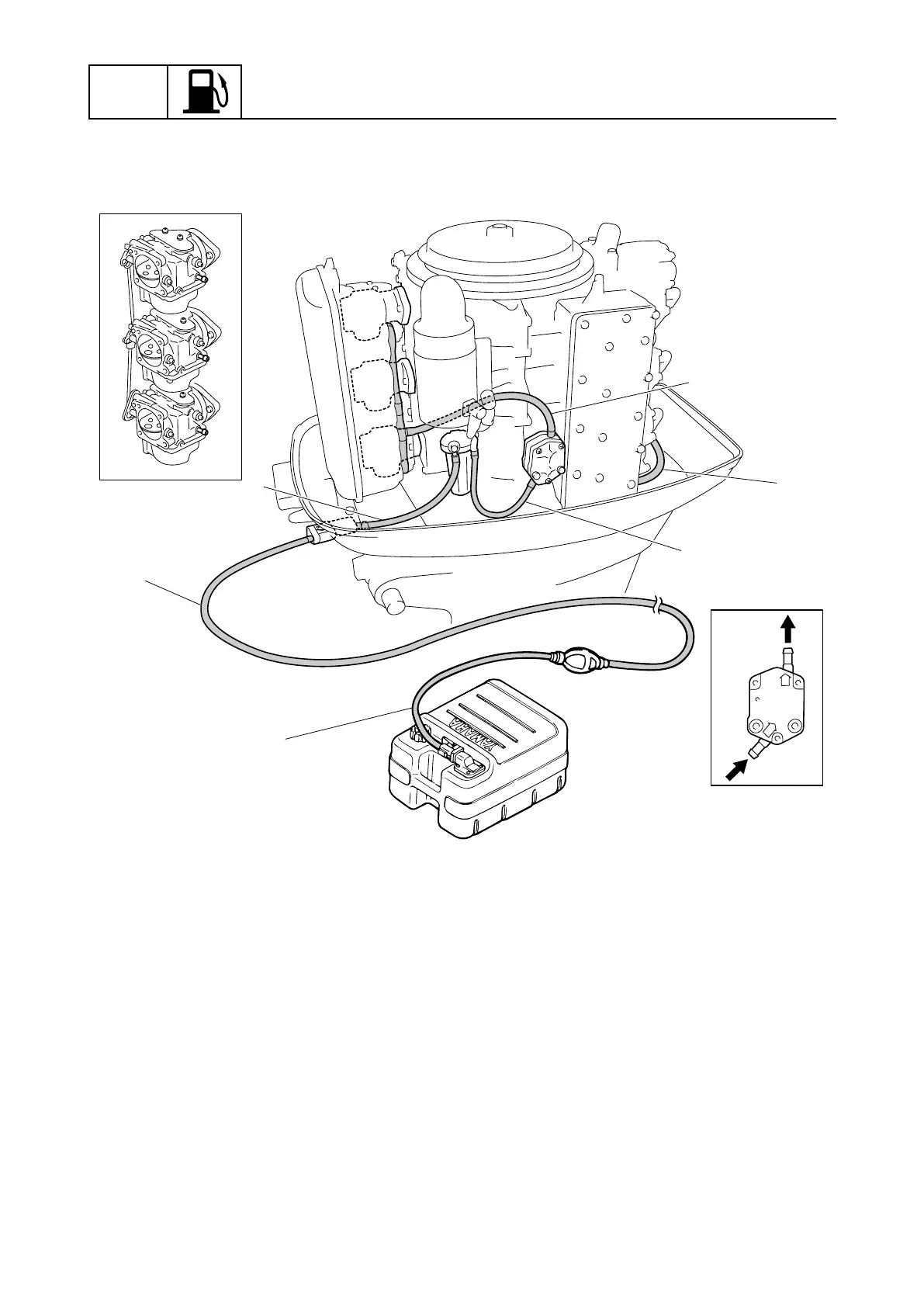

Hose routing
1 Fuel hose (Fuel tank-to-primer pump)
2 Fuel hose (Primer pump-to-fuel joint)
3 Fuel hose (Fuel joint-to-fuel filter)
4 Fuel hose (Fuel filter-to-fuel pump)
5 Fuel hose (Fuel pump-to-carburetor)
6 Cooling water hose
OUT
IN
4
1
2
3
5
6
