Yamaha 55DEHD - Removing the Drive Shaft; Removing the Shift Rod; Disassembling the Drive Shaft

6885J11
6-14
9
8
7
6
5
4
3
2
1

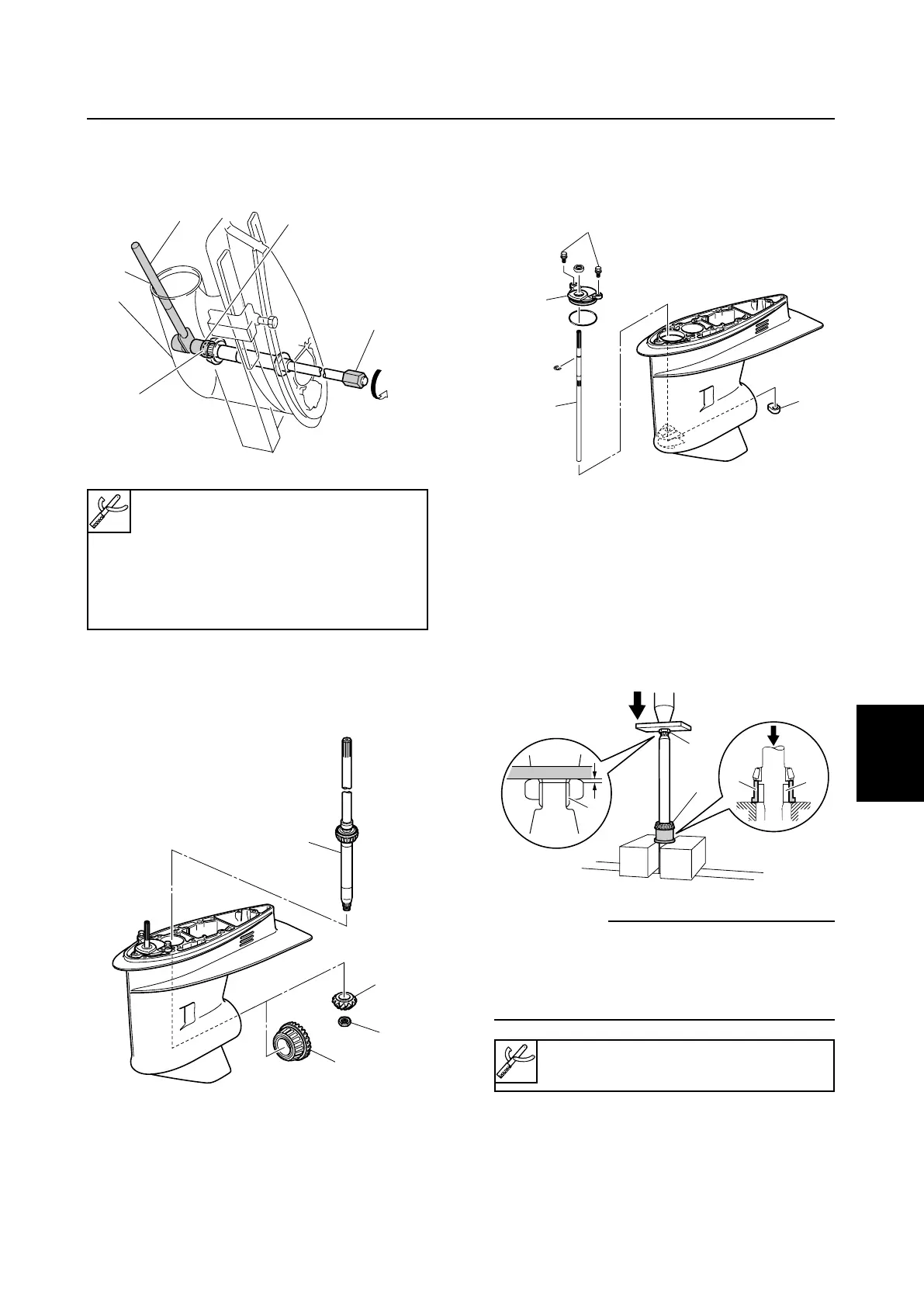

Drive shaft and lower case
Removing the drive shaft
1. Loosen the pinion nut 1 as shown.
2. Remove the pinion nut 1, drive shaft 5,
pinion 6, and then remove the forward
gear 7 as shown.
2
4
3
1
68860180
68860190
5
6
1
7
Drive shaft holder 5 2:
90890-06519
Pinion nut holder 3:
90890-06715
Socket adapter 2 4:
90890-06507
Removing the shift rod
1. Remove the bolts 1, plate 2, shift rod
3, and then remove the shift cam 4.
Disassembling the drive shaft
1. Install the pinion nut 1, and then tighten
it temporarily.
2. Remove the taper roller bearing 2 using
a press.
cC
9 Do not press the drive shaft threads a
directly.
9 When removing the taper roller bearing,
do not damage the drive shaft collar 4.
68860325
1
2
4
3
Bearing inner race attachment 3:
90890-06639
2
1
4
a
3
68860210
