Yamaha 55DEHD - Assembling the Fuel Pump

6885J11
9
8
7
6
5
4
3
2
1
4-8
Fuel pump

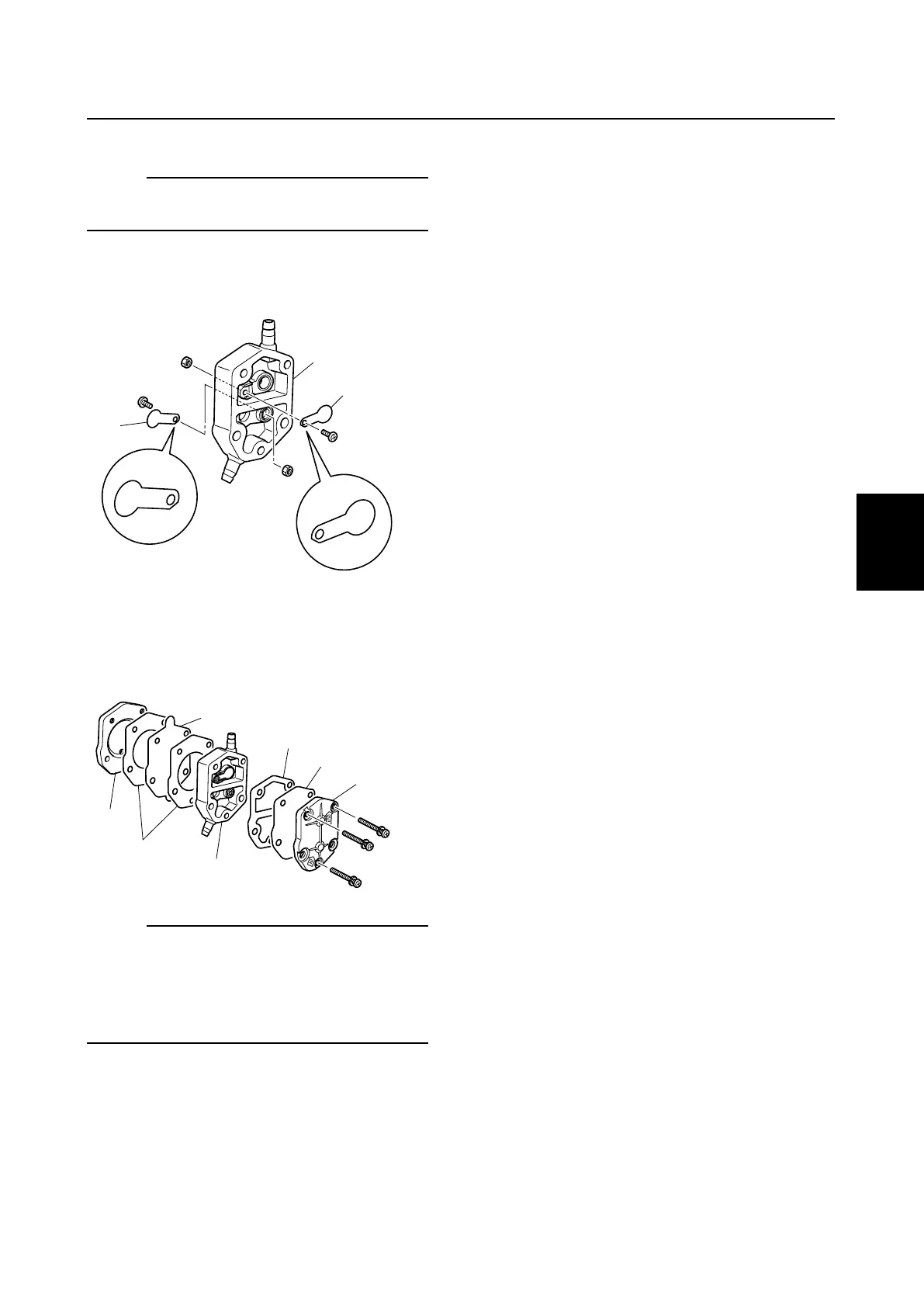

Assembling the fuel pump
NOTE:
Clean the parts and soak the valves and the
diaphragms in gasoline before assembly.
1. Install the check valves 1 onto the fuel
pump body 2.
2.
Install the new gaskets 3, 4,
diaphragms 5, 6, cover 7 and base 8
to the fuel pump body 9.
NOTE:
9 Make sure that the gaskets 3, 4 and
diaphragms 5, 6 are kept in place through
the assembly process.
9 After assembling, check the fuel pump air
leakage again.
1
1
2
68840020
6
3
5
7
8
9
4
68840030
